Stainless Steel

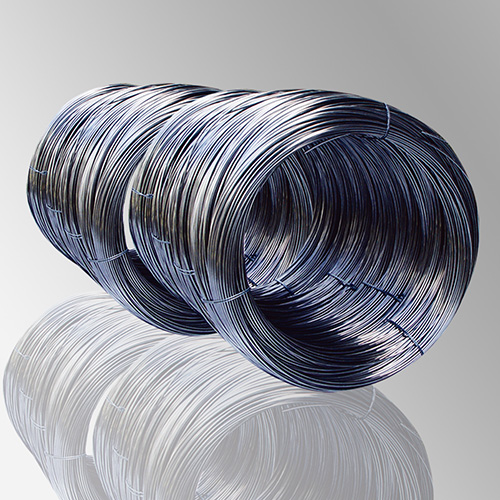

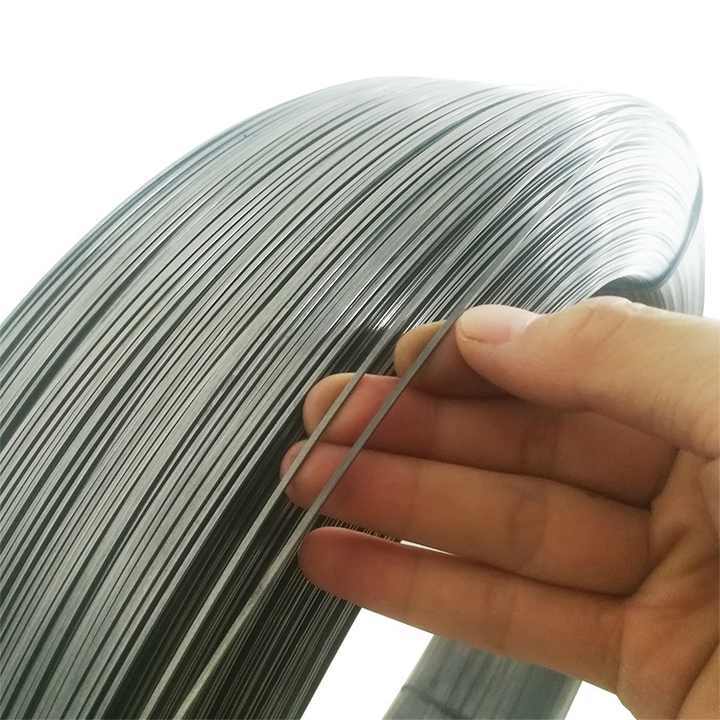

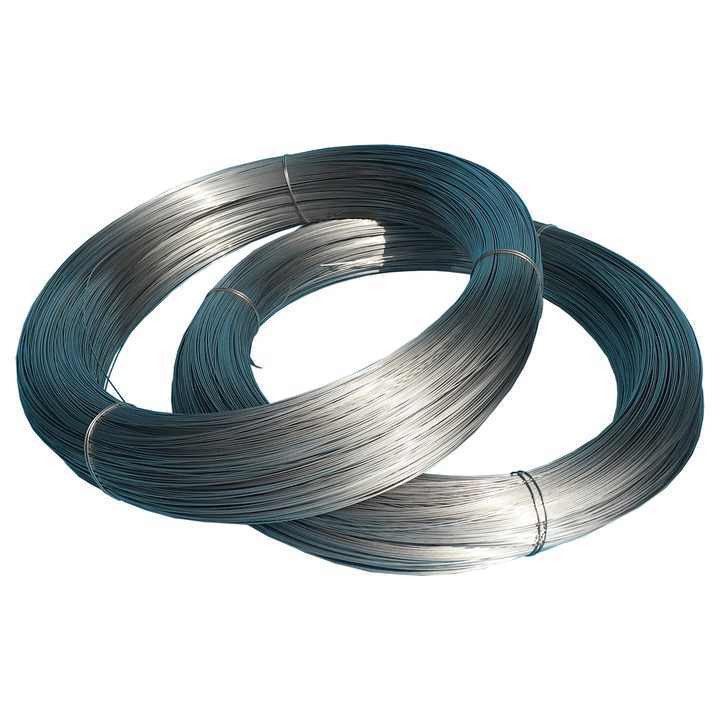

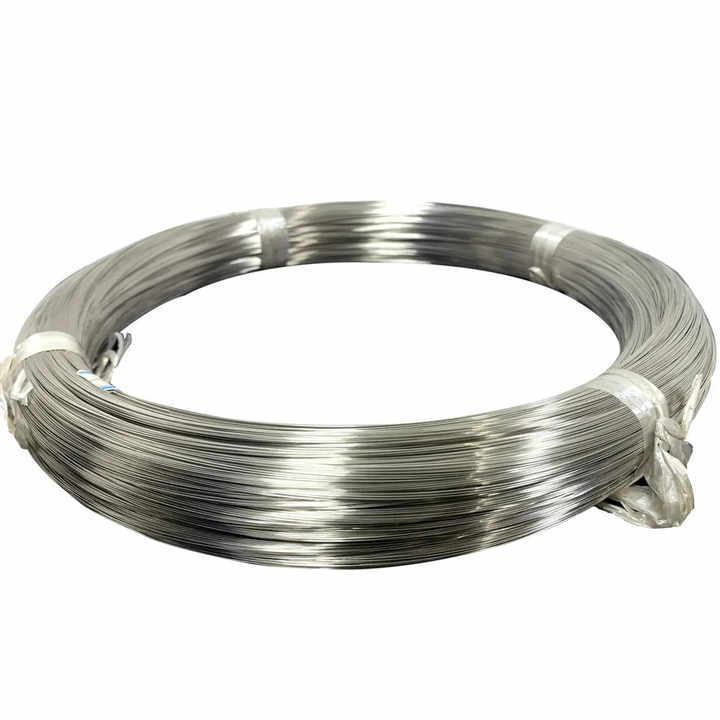

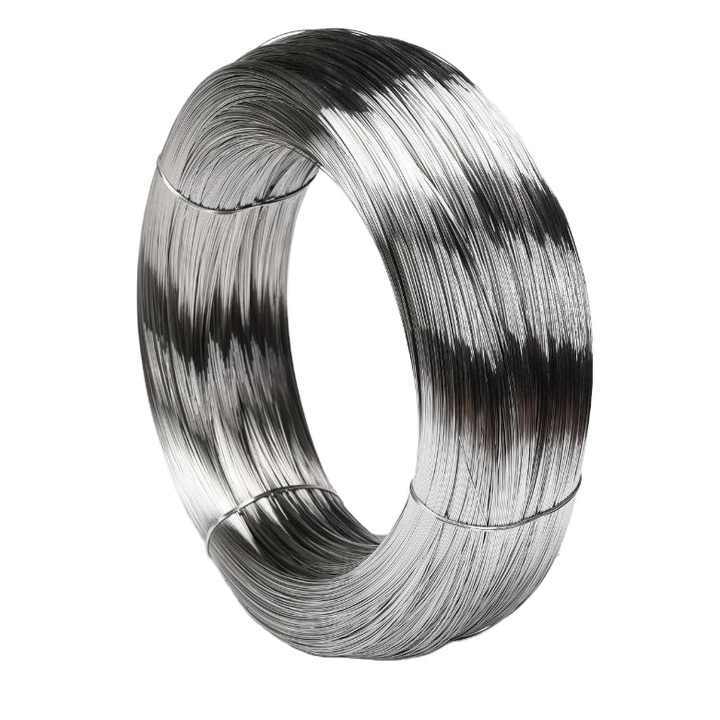

Stainless Steel Wire
-
AISI, DIN, EN, JIS, SUS, GB.
-
201, 301, 302, 304, 310, 316L, etc.
-
NA
-
NA
Stainless steel wire has very good corrosion resistance and high-cost performance. Stainless steel drawing wire is a metal processing in which the wire rod is pulled out from the die hole of the drawing die under the action of the drawing force to produce smaller section of steel wire or non-ferrous metal wire. Wires with different shapes and sizes can be produced by drawing, the drawn wire has an accurate size and smooth surface.
Standards | AISI, DIN, EN, JIS, SUS, GB. |
Grade | 200 Series: 201, 202. 300 Series: 301, 302, 304(L), 308(L), 309(L), 310(S), 321, 316(L), 317(L), 329, 347. 400 Series: 409, 410, 416, 420, 430, 430F. Others: 630, 631, 2205, etc. |
Diameter | 0.1 ~ 18mm |
Shape | Round, Flat, Square, Oval, etc. |
Delivery Status | Soft, Light Pull, Cold Pull (S, LD, CD) |
Type | Soft wire, Hard wire, Spring wire, Electrode wire, Cold heading wire, Electrolytic wire, Welding wire, etc |
Packing | Export seaworthy packing with each bundle tied and protected, or as to clients' request. |
Diameter mm | Tolerance/mm | |||||
H8 | H9 | H10 | H11 | H12 | H13 | |
>0.1 ~ 0.3 | ±0.003 | ±0.006 | ±0.009 | ±0.014 | ±0.022 | ±0.029 |
>0.3 ~ 0.6 | ±0.004 | ±0.009 | ±0.013 | ±0.018 | ±0.030 | ±0.0.38 |
>0.6 ~ 1.0 | ±0.005 | ±0.011 | ±0.018 | ±0.023 | ±0.035 | ±0.045 |
>1.0 ~ 3.0 | ±0.007 | ±0.015 | ±0.022 | ±0.0.30 | ±0.050 | ±0.060 |
>3.0 ~ 6.0 | ±0.009 | ±0.020 | ±0.028 | ±0.040 | ±0.062 | ±0.080 |
>6.0 ~ 10.0 | ±0.011 | ±0.025 | ±0.035 | ±0.050 | ±0.075 | ±0.10 |
>10.0 ~ 16.0 | ±0.013 | ±0.030 | ±0.045 | ±0.060 | ±0.090 | ±0.12 |
P.S.: Special tolerance can be discussed. | ||||||

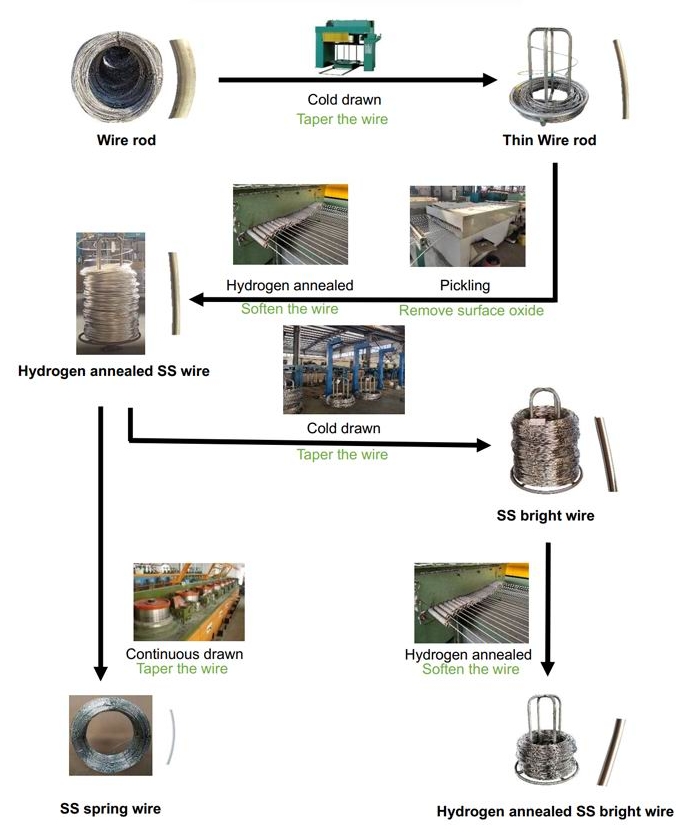

Manufacturing Process

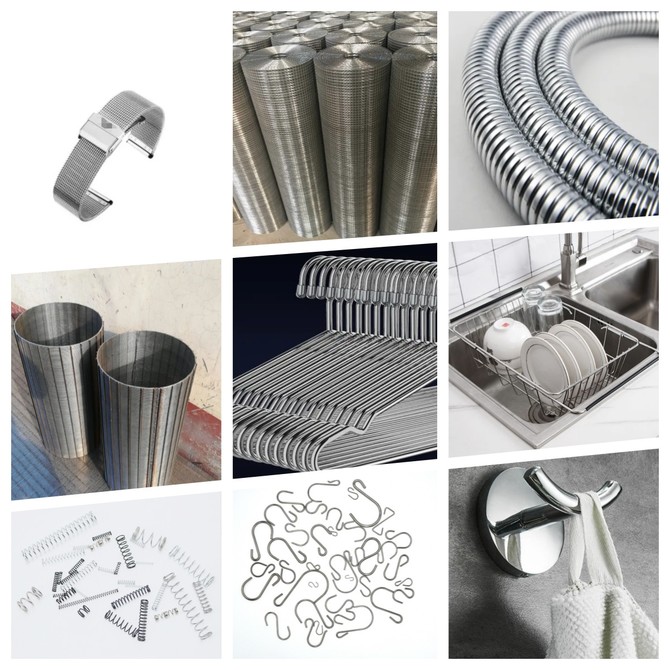

Application

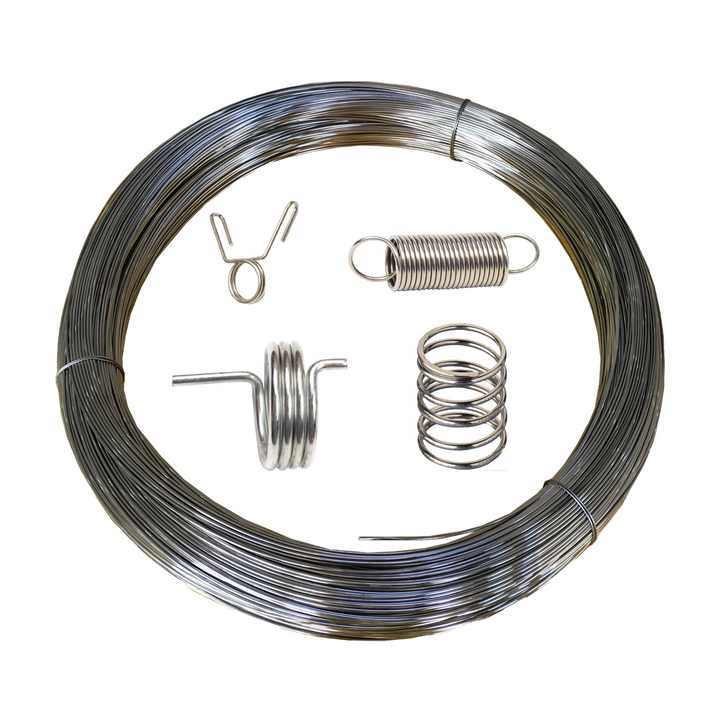

High Tension Spring
Wire Rope
Fence
Mesh
Brush
Spoke
Weaving
Ornaments
Bicycle Accessories
Accessories
Others.

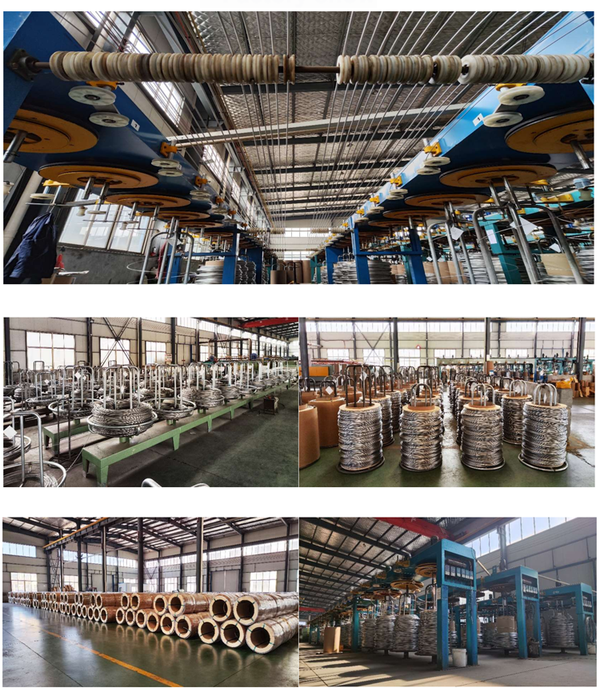

Production
China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

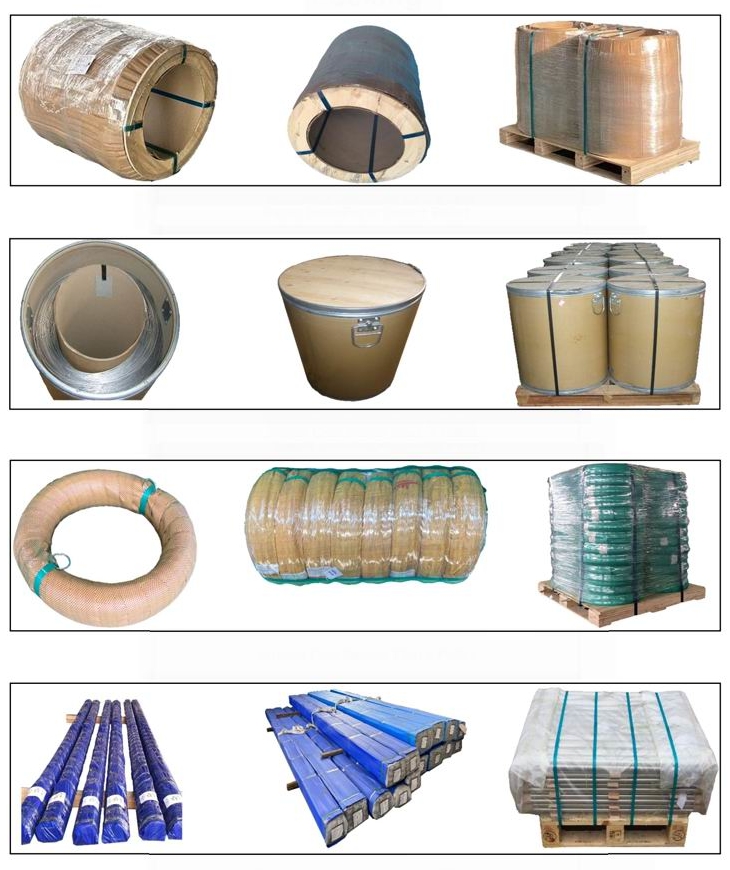

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
