Aluminum
Color Coated Aluminum Coil
-
ASTM, JIS, EN, DIN, etc.
-
1050, 1100, 3003, 3104, 3105, 5005, etc.
-
0.02 ~ 4.0mm
-
＜2800mm
Color Coated Aluminum Coil(Strip) is one of the most popular new materials, it is widely used in our daily life. Its performance is very stable, not easy to be corroded, the surface after special treatment can reach 30 years of quality assurance. Color coated aluminum coil has a wide range of colors, whether it is residential, large commercial outlets or large convention centers. Good plasticity and machinability make it an ideal material for a variety of architectural shapes. It has provided architects, designers and owners with a personalized color space for exterior walls and ceilings, as well as the ideal material for architectural styling.
Grade: | 1050, 1060, 1100, 3003, 3004, 3104, 3105, 5005, 5006, 5052, 8011, etc. |
Temper: | H1X, H2X, H3X, H4X |
Thickness: | 0.02-4.0mm |
Width: | ＜2800mm |
Coils Core Diameter: | 75mm, 150mm, 305mm, 405mm, 508mm, 510mm |
Color: | RAL Color or Sample by customer. |
Coating Paint: | PVDF, PE, HDPE, Arcrylic |
Coating Thickness: | PVDF≥25 μm, PE≥18 μm, or customized. |
Coating Adhesive: | Not lower than first grade Impact: no any crack (50kg/cm, ASTMD-2794:1993) |
Bend Stength: | >100 times |
Protective Film: | PVC film, Colorless transparent or White-black |

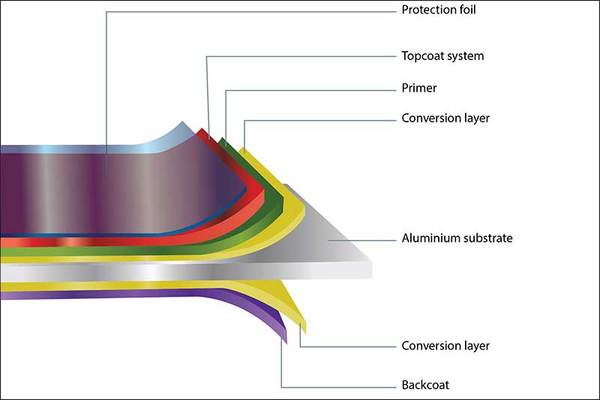

1. Coating Layer of Color Coated Aluminum Coil

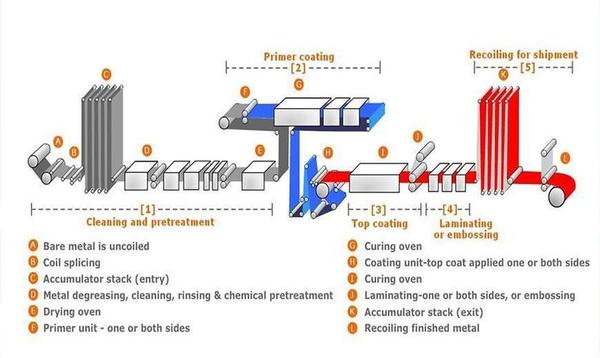

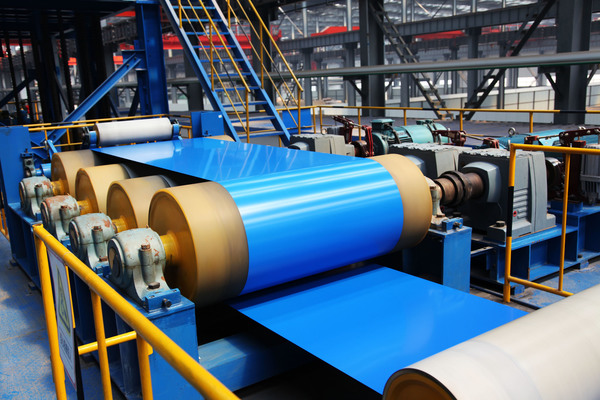

2. Production Technology Process
3. Surface Coating
PVDF Color Coated Aluminum Coil
The PVDF color coated aluminum coil uses PVDF paint of famous brands like PPG, VALSPAR and NIPPON, which goes through duplex or triplex coating and high temperature baking to form 25–35μm thick cured coating. As the PVDF coating provides corrosion resistance, high weatherability, strong adhesion, high self-cleaning capability and is maintenance-free, the aluminum coated coil can remain color fast and durable for 10–15 years.
PE Color Coated Aluminum Coil
PE (polyester) coating is an UV-resistant coating. It can be classified matt and glossy according to coating gloss. The compact molecule structure makes paint surface luster and smooth, which assure good printing on the panel surface. With 7 year warranty for weather resistance.
4. Features
1) The temperature resistance is good
The melting point of aluminum is 660 degrees, and the general temperature does not reach its melting point.
2) Environmental protection
Not easy to turn yellow, using chromium-free treatment liquid to make up for the defects of easy discoloration of the laminating board; the roller paint contains active chemical molecules, which promotes the formation of a protective layer on the surface of the material. Active chemical molecules are stable and easy to recycle, meeting environmental requirements.
3) Corrosion resistance
Because of its tight surface oxide film, it has strong adhesion, oxidation resistance, acid resistance, alkali resistance, corrosion resistance, decay resistance and UV resistance.
4) Color uniform, long-lasting, its color is even and delicate
Soft and colorful, avoiding the individual chromatic aberration of traditional spraying, no matter how large the ceiling, its color and color are consistent. Lasting and new.
5) Rigid joint, the strength of the board is extremely high
Rigid and tough combination, free to cut, slit, arc, balance, drilling, joint fixation and edge compression molding.
5. Applications
1) Plastic Plate
2) Composite Panel
3) Roller Shutter
4) Honeycomb Panel
5) Veneer
6) Ceiling
7) Roofing
8) Edges and Corner
9) Easy-to-Open Cans
10) Home Appliance
11) Others.

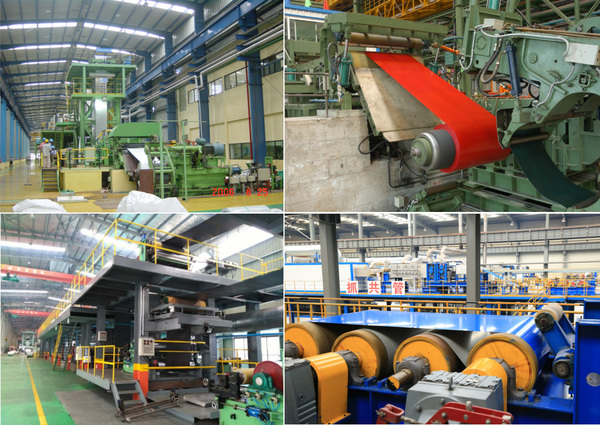

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

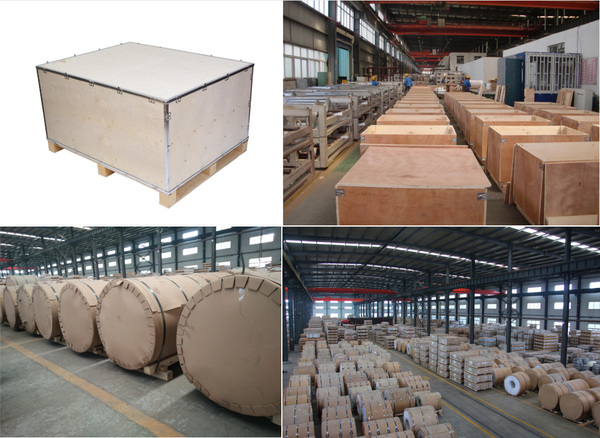

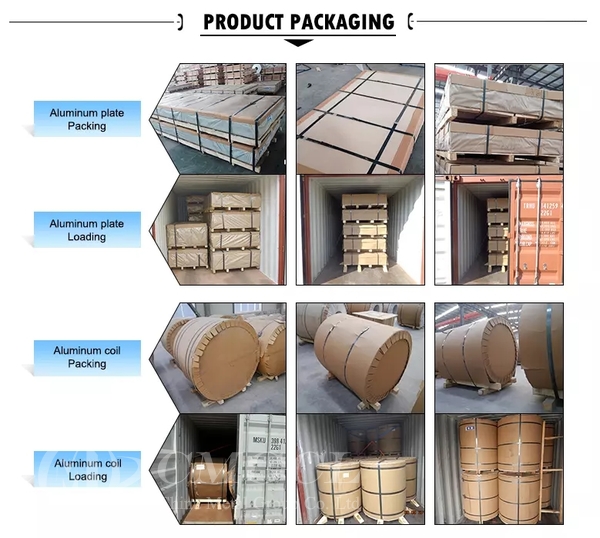

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
