Copper
Copper Tube & Copper-Nickel Tube
-
ASTM B111, AS 1432, ASTM B280, ASTM B88, etc.
-
C11000, C12200, C70600(90/10), C71500(70/30), etc.
-
0.12mm ~ 70mm
-
NA

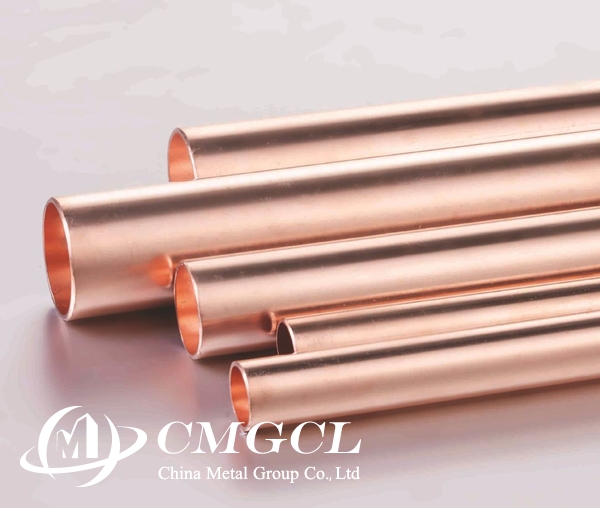

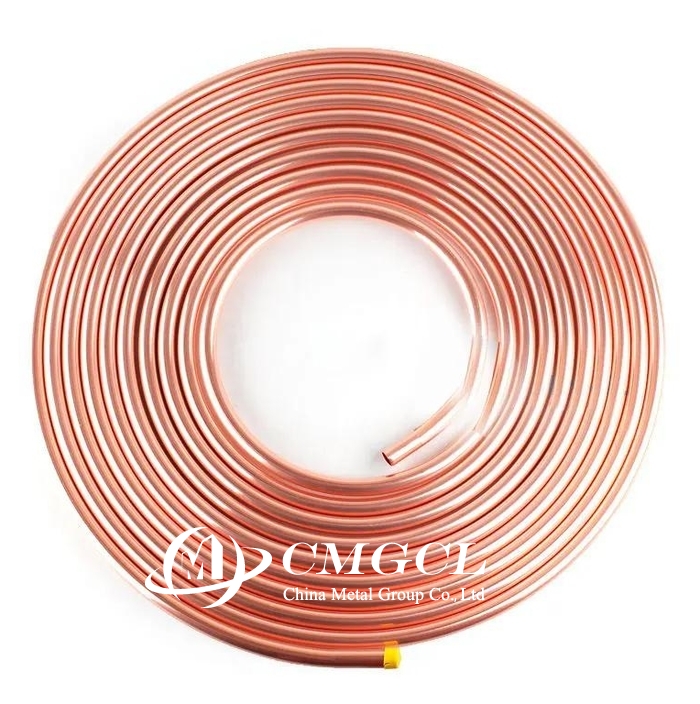

Copper tube is the preferred material for water pipes, heat exchanger and refrigeration systems due to its high resistance to corrosion, high temperature and high pressure. China Metal Group is a professional manufacturer of copper tubes with the best quality, we combine advanced manufacturing methods and sophisticated quality control techniques to ensure that only consistently high standard copper tubes are supplied to our customers.
Standard | ASTM B111, AS 1432/1571/1572, ASTM B280, ASTM B88, ASTM B68, ASTM B75 ASTM B251, JIS H3300, etc. |
Grade | C11000, C10200, C12000, C12200, C70600(90/10), C71500(70/30), Cu-ETP, etc. |
Hardness | O, 1/4H, 1/2H, 3/4H, Full Hard, or any hardness according to the request. |
Type | K, L, M, DWV and DWV |

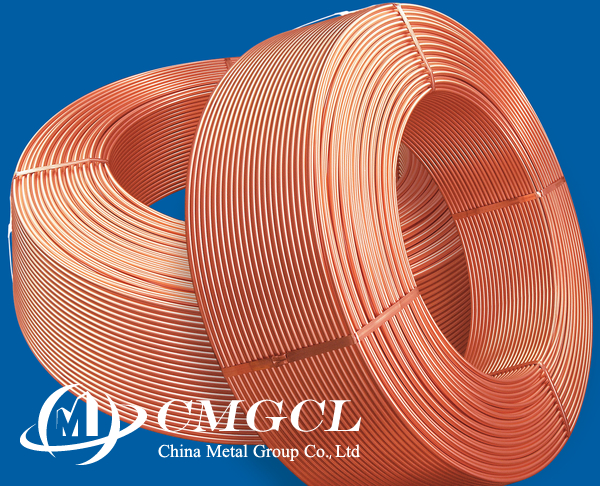

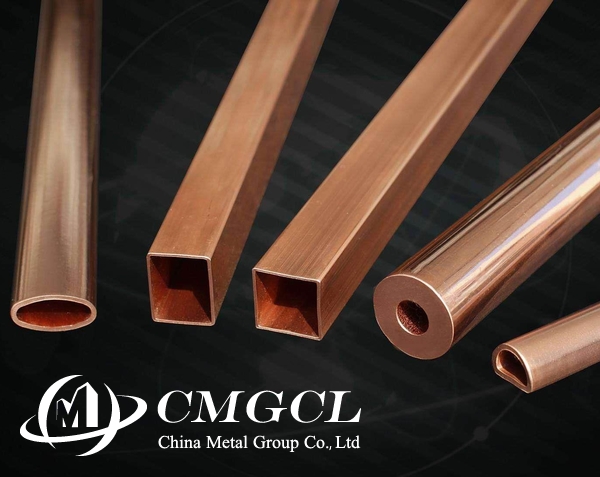

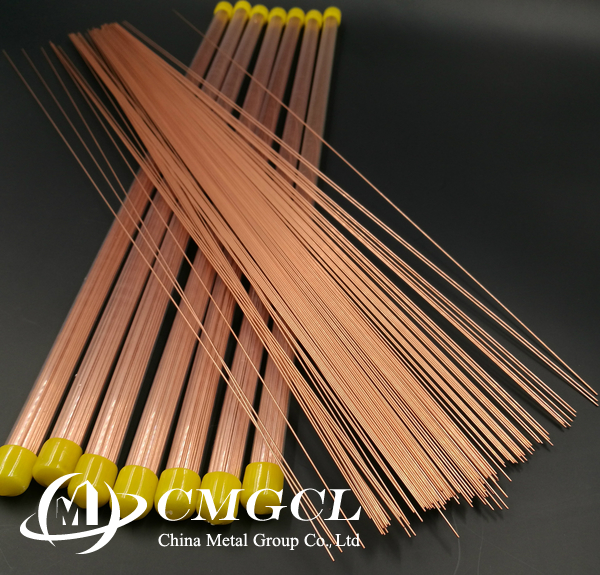

Shape | Round, Square, Rectangular, LWC, Pancake, Capillary, etc. |
Outer Diameter | 1.2mm ~ 380mm |
Thickness | 0.12mm ~ 70mm |
Length | 5.5m, 6.0m, or as per request |
Type
Type K has the thickest wall section of the three types of pressure rated tubing and is commonly used for deep underground burial, such as under sidewalks and streets, with a suitable corrosion protection coating or continuous polyethylene sleeve as required by the plumbing code. This pipe designation is used in the Refrigeration Industry.
Type L has a thinner pipe wall section and is used in residential and commercial water supply and pressure applications.
Type M has an even thinner pipe wall section and is used in residential and commercial low-pressure heating applications.
Type DWV has the thinnest wall section and is generally only suitable for unpressurized applications, such as drain, waste, and vent (DWV) lines.
Type ACR(air conditioning and refrigeration field services) pipe and tubing, which is sized directly by its outside diameter (OD) and a typed letter indicating wall thickness.

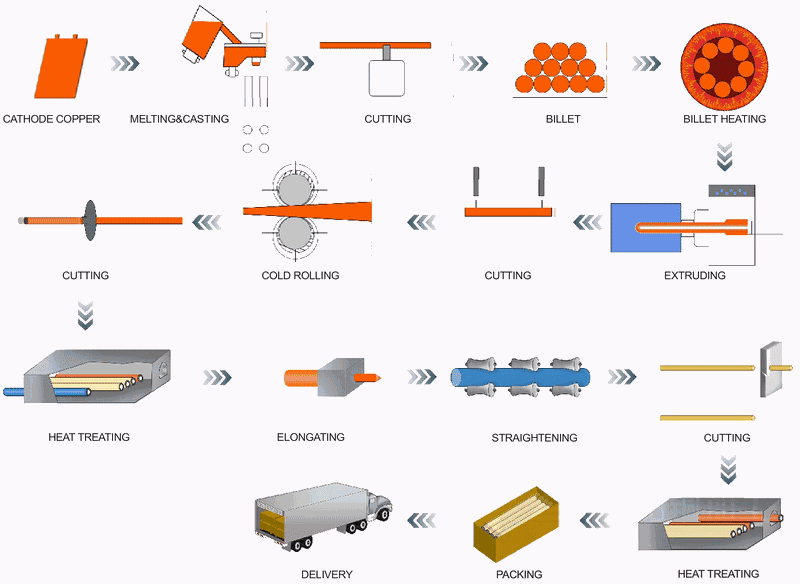

Manufacturing Process
Features
1) Good wear resistance
2) Excellent corrosion resistance
3) High resistance to high temperature, high pressure
4) Hot Forging performance
5) Good cutting performance
6) Self-lubricating performance
7) 25 year guarantee against manufacturing defects
Applications
1) Air Conditioner and Refrigerator
2) HVAC
3) Heat Exchanger
4) Radiators
5) Condensers
6) Water Tube
7) Electric Connectors
8) Distiller
9) Decoration
10) Others.

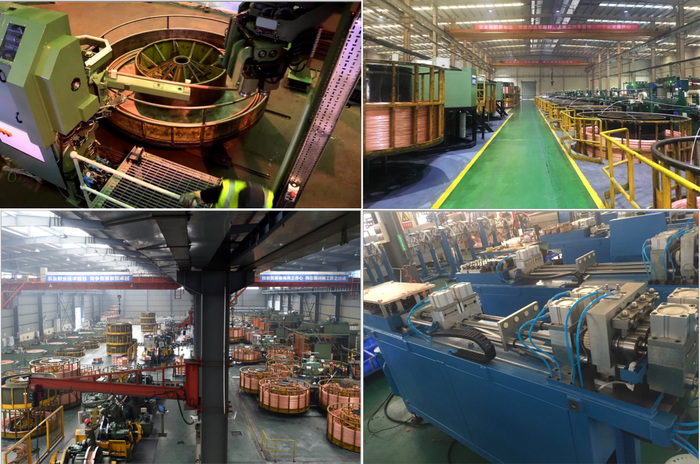

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

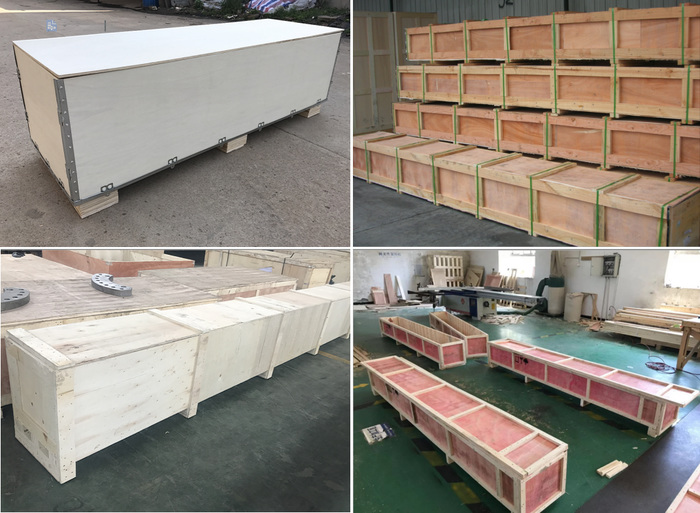

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
