Aluminum

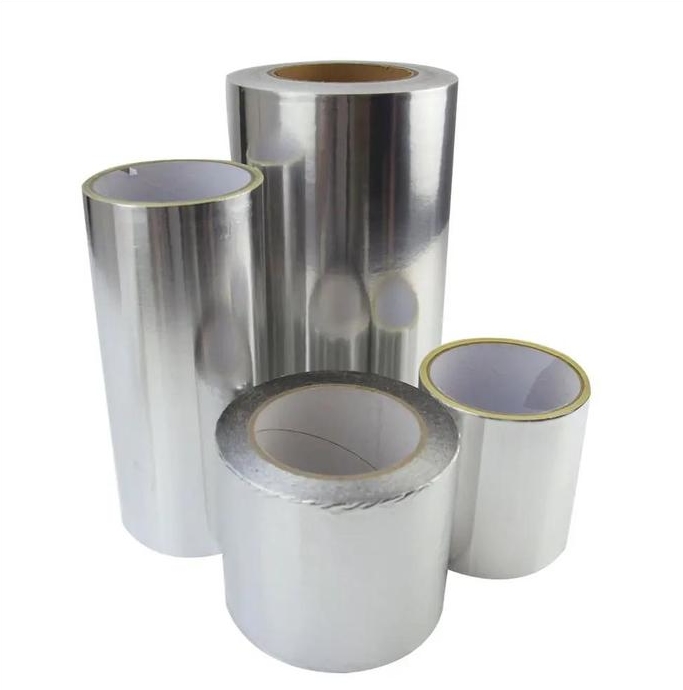

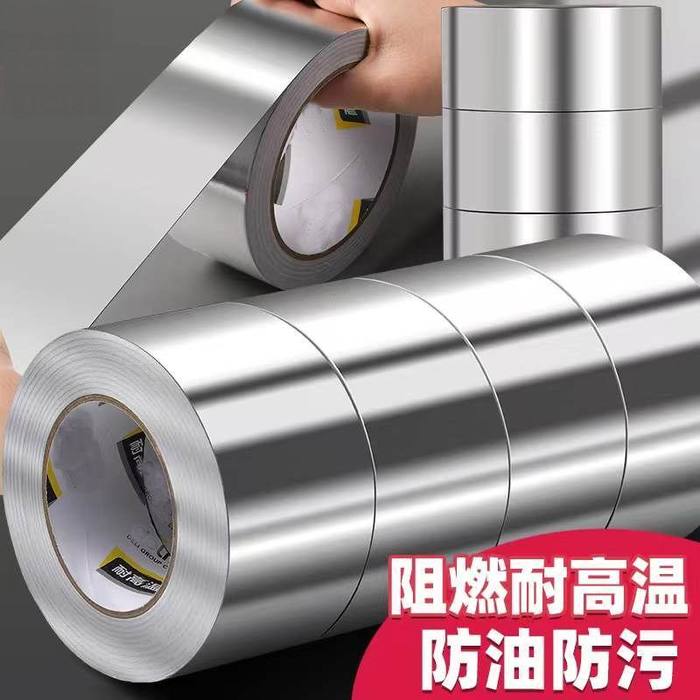

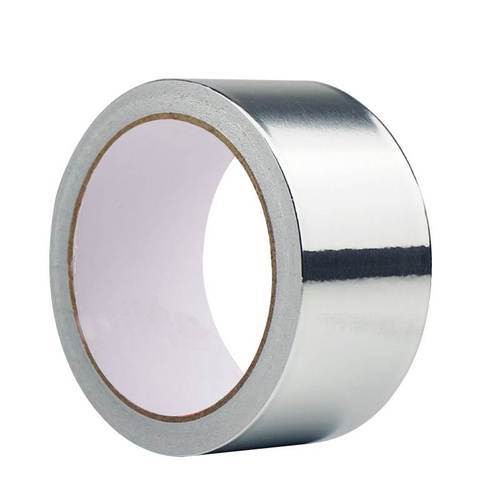

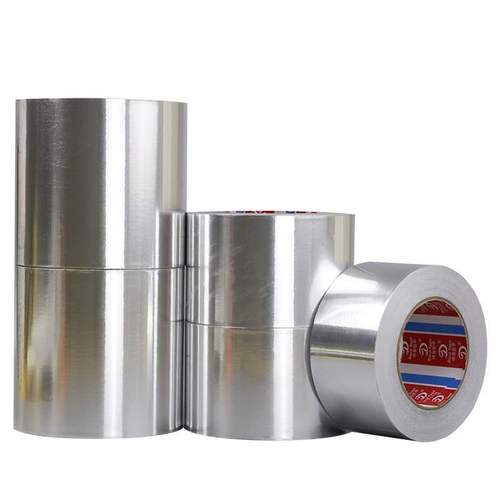

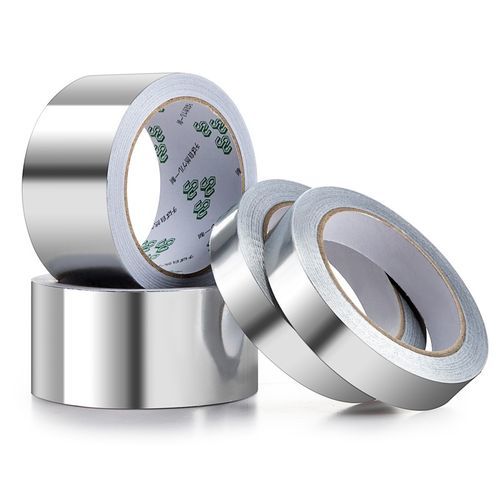

Aluminum Foil Adhesive Tape
-
ASTM, JIS, EN, DIN, AS, etc.
-
8011
-
20 ~ 120um
-
20 ~ 1000mm
China Metal Group Co., Ltd is experienced manufacturer which engaged in the research, develop, production, sales and service of aluminum foil adhesive tape, double-sided tape and PET protective blue tapes, our products are widely used in fridges, freezers, air conditioners, duct sealing, vehicles, electronics, pipes and so on.
Product Formation | BOPP/PET Film, Aluminum Foil, Compound, Release Agent, Glue, Release Paper of Composite/Release Liner |
Aluminum Foil | 8011-O |
Glue | Water-borne Pressure Sensitive Adhesive Acrylic adhesive Hotmelt Adhesive Oil Adhesive Rubber, etc. |
Total Thickness of Substrate | Hand Used: 25um-45um Machine Used: 40um-55um Pure Aluminum: 20um-60um High Temperature: 55um-60um With Lining Paper: 15um-120um Blue Tape: 30um |
Total Thickness of Product | Hand Used: 55um-85um With Lining Paper: 40um-170um |
Temperature Resistance | Water-based acrylic pressure sensitive adhesive——140℃ |
Oil Resistant High Temperature Pressure Sensitive Adhesive——180℃ | |
With lining paper PET compound aluminum foil tape——120℃ to 300℃ | |
Width and Length of Finished Product: (Can be customed by request)
| Hand Used——Regular: 45mm*50m 50mm*50m Machine Used——Regular: 45mm*300m 50mm*300m |
Product Adhesive Force (at 23℃) | Hand Used: 13# Machine Used: 13# |
180° Peel Strength (at 23℃) | Hand Used: 11.8N/25mm |
Product Holding Force (at 23℃) | Hand Used: ≥48h/25mm |
Advantage | High thermal conductivity to maximize efficiency of heating or cooling High heat reflectivity to protect temperature-sensitive materials against heat damage and hot spots Protect parts from flame damage Seal and protect sensitive surfaces from dust and moisture Resist UV degradation for long-term performance |
Applications | Refrigerators Freezers Water Fountains HVAC Sealing Air Conditioners Fireworks Pipeline Heat Insulation Pipelines Incubators Television Sets Computers Furniture Electronic Appliances Cooker Hoods Tea Bar Machines Vessels,Ovens Floor Heating System, etc. |

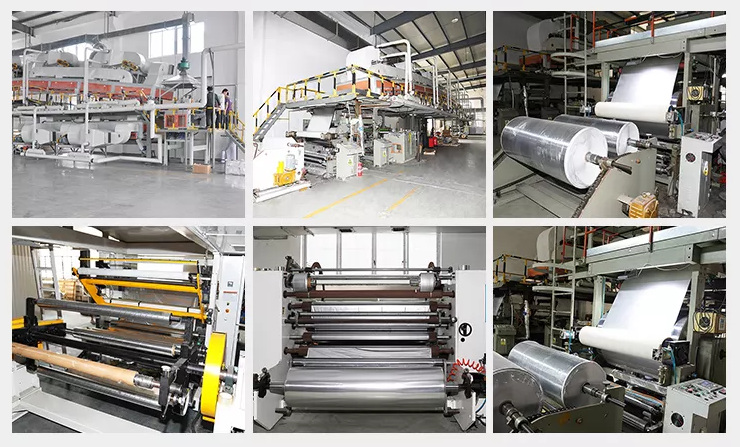

Production
China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

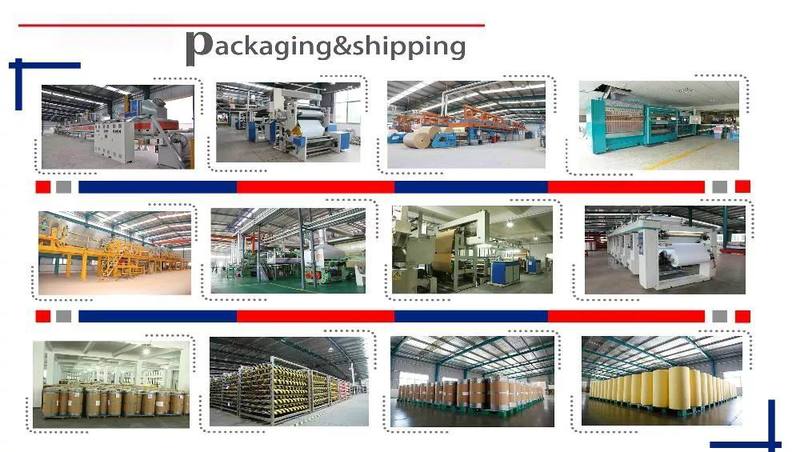

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
