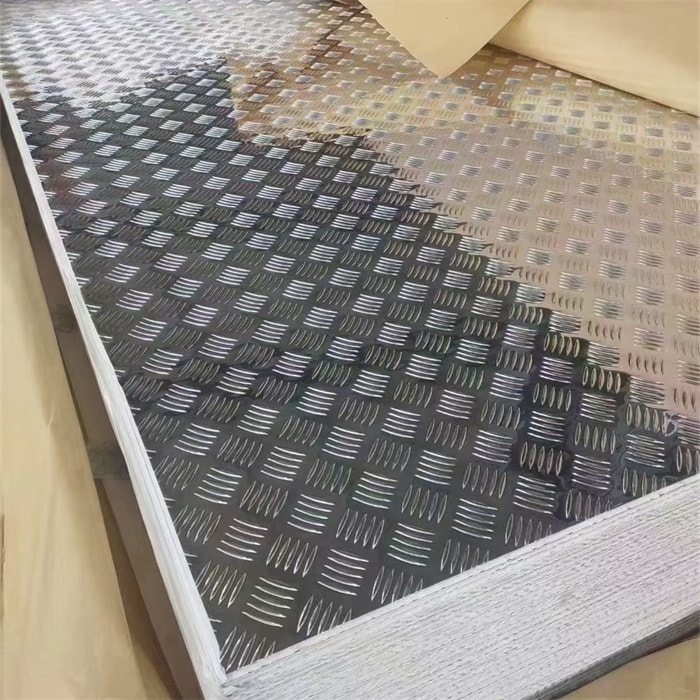

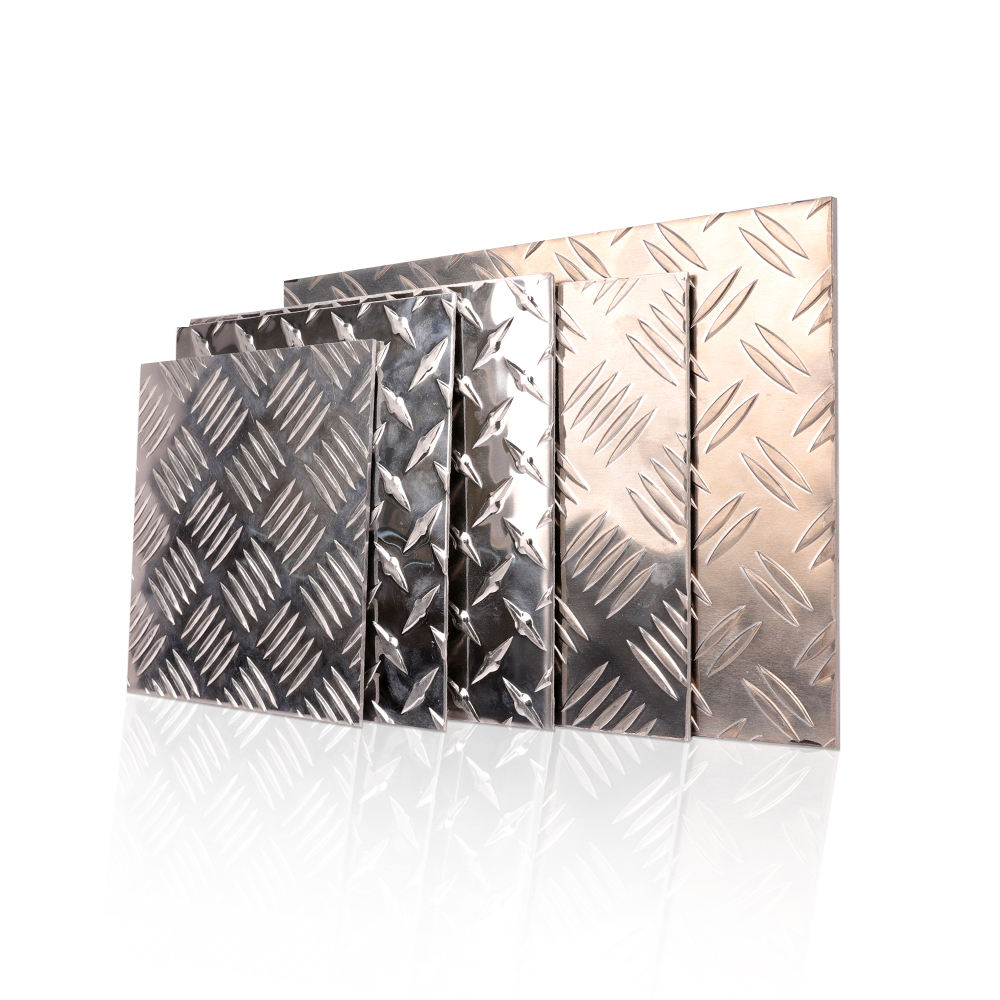

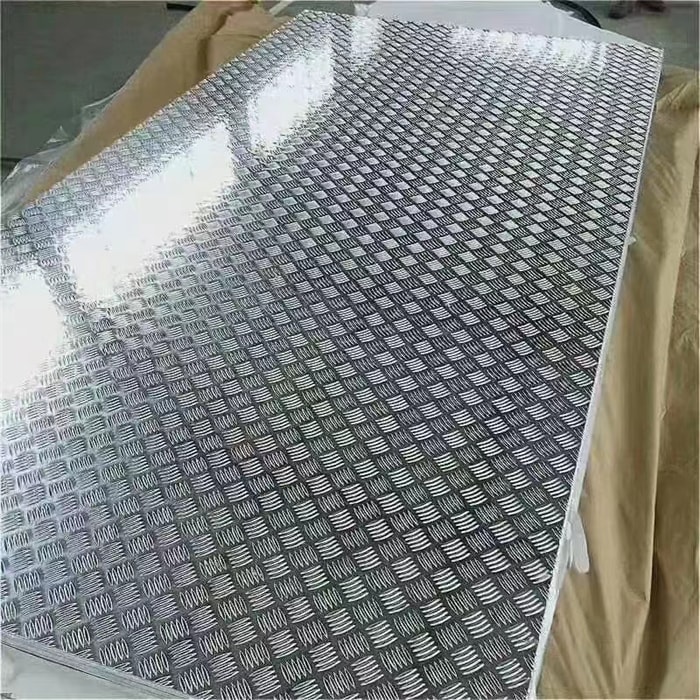

Aluminum Checkered/Tread Plate

Aluminum

POSITIONHOME > PRODUCTS > Aluminum

Standard:
ASTM, EN, DIN, JIS
Grade:
3003, 3105, 5052, 5083, 5754, etc.
Thickness:
1.0 ~ 10.0mm
Width:
1000 ~ 2200mm

PRODUCT INQUIRY

We have full production lines for aluminium checkered plate, diamond aluminium tread plate and embossed aluminium plate. The quality can meet the military-level. Besides, we can produce large aluminium checkered plate with extra width, the height of rasied pattern can reach 0.9mm to 1.5mm.

Specification Production & Package

Grade	1050, 1060, 1100, 3003, 3104, 3105, 5052, 5083, 5754, 6061, etc.
Temper	H12/H134, H14/H154, H18/H194, H24/H254, H26/H274, H32/H334, etc.

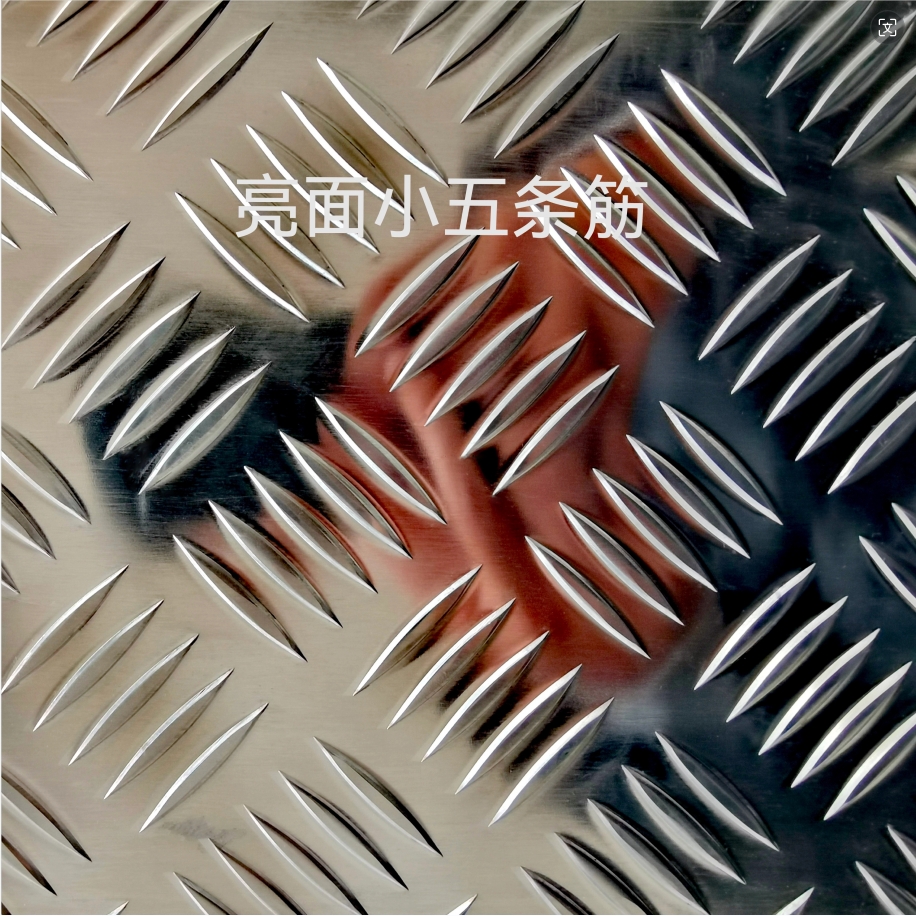

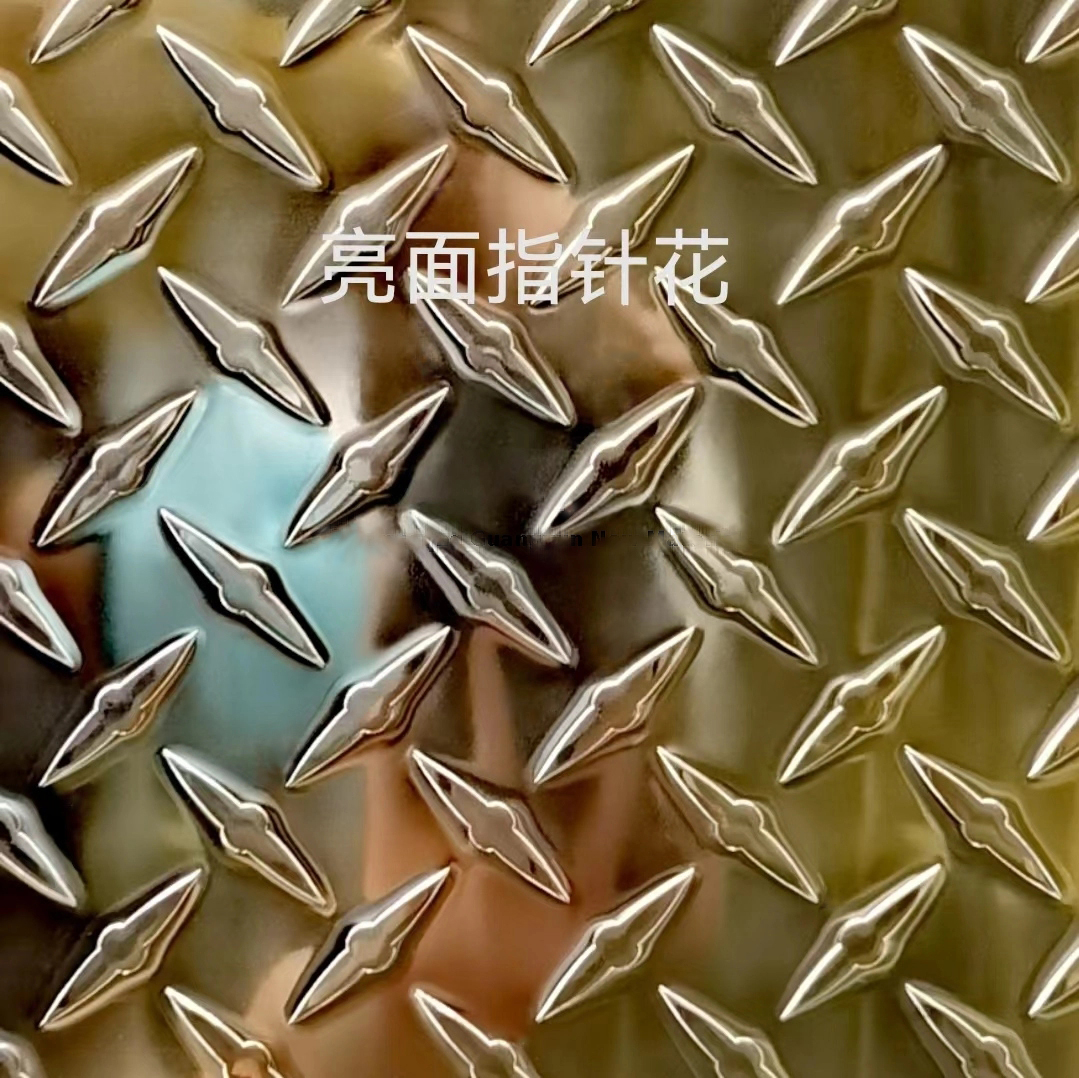

Pattern	Big 5 Bars, Small 5 Bars, 3 Bars, 2 Bars, Diamond, Embossed, Dimpled, etc.
Thickness	1.0 ~ 10.0mm
Width	1000 ~ 2200mm
Length	As per request.
Height of Rasied Pattern	0.9 ~ 1.5mm
Packing	Standard Seaworthy Wooden Pallet

Features

1. Good Water Resistance, Elasticity and Durability

2. Excellent Texture and Surface Finish

3. Good Corrosion Resistance

4. Good Anti-Rust Resistance

5. High Hardness

6. Strong Load-Bearing

7. Wear Resistance

8. High Temperature Resistance

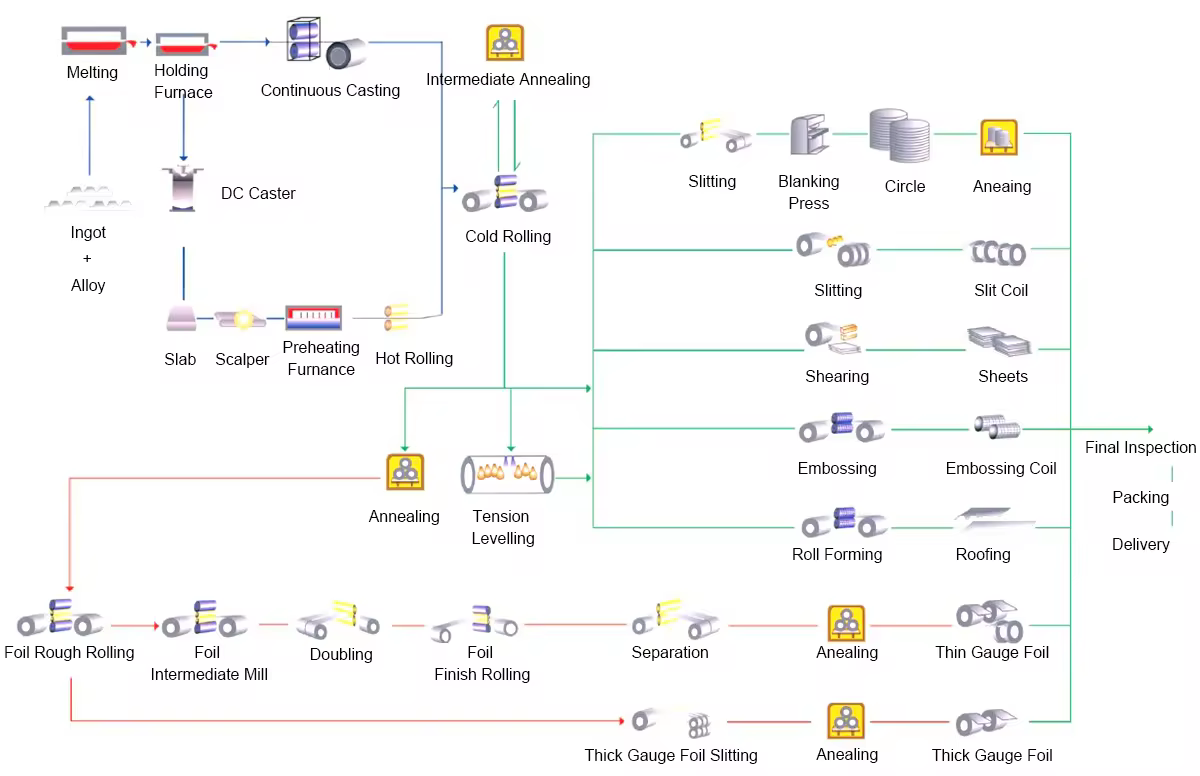

Manufacturing Process

Applications

Industry	Application
Transportation	Bus Bodies, Flooring, Aviation, Automobile Parts, Shipping and Air-Cargo Containers, etc.
Construction	Stair Tread, Curtain Walls, Cladding, Ceiling, Heat Insulation, etc.
Electronic Appliance	Telecommunication Equipment, PC Board Drilling Guide Sheets, Lighting Materials, etc.
Consumer Goods	Cooking Utensils, Sports Equipment, etc.
Others	Military Usage, Tool Box, Wind Tower Pedal, etc.

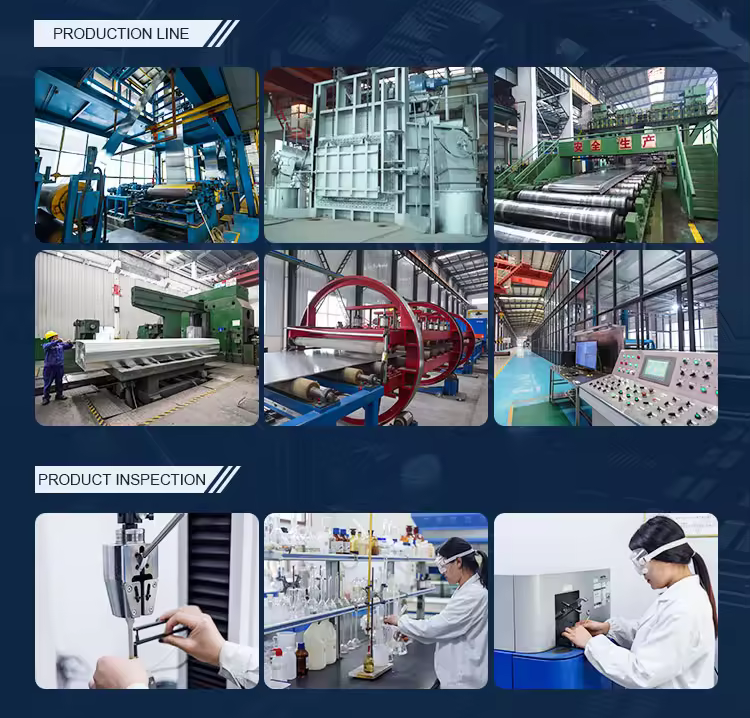

Productions

China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

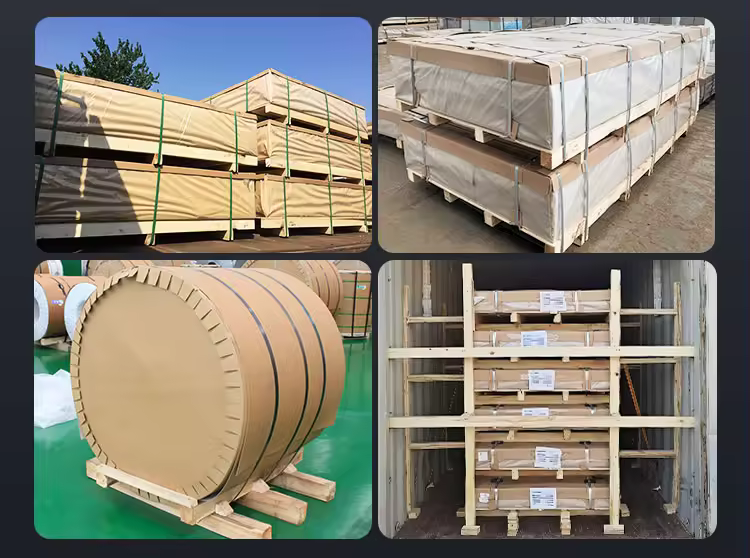

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
