Aluminum Bar

Aluminum

POSITIONHOME > PRODUCTS > Aluminum

Standard:
DIN EN 754-2-2008, DIN EN 755-2-2008, ASTM B211M-2001, ASTM B221, JIS H4100-2006
Grade:
1060, 1100, 2024, 5083, 6061, 6063, 7075, etc.
Thickness:
NA
Width:
NA

PRODUCT INQUIRY

China Metal Group Co., Ltd is experienced manufacturer of aluminum bars in shapes of round, flat, square, hexagonal and so on. Please contact us if you have any enquiry.

Specification Production & Package

Standard	DIN EN 573-3, DIN EN 754-2-2008, DIN EN 755-2-2008, ASTM B211M-2001, ASTM B221, JIS H4100-2006, JIS H4040-2006, GB/T3190-2008, GB/T3191-2010, etc.
Grade	1 Series: 1050, 1060, 1070, 1100, etc.
	2 Series: 2A12, 2A14, 2011, 2017, 2024, etc.
	3 Series: 3A21, 3003, etc.
	4 Series: 4032
	5 Series: 5052, 5056, 5083, 5A06, etc.
	6 Series: 6061, 6063, 6082, 6262, etc.
	7 Series: 7003, 7005, 7050, 7075, 7475, etc.
Temper	H112, H12, H24, O, T3, T351, T4, T5, T6, T651, T73, T8, etc.

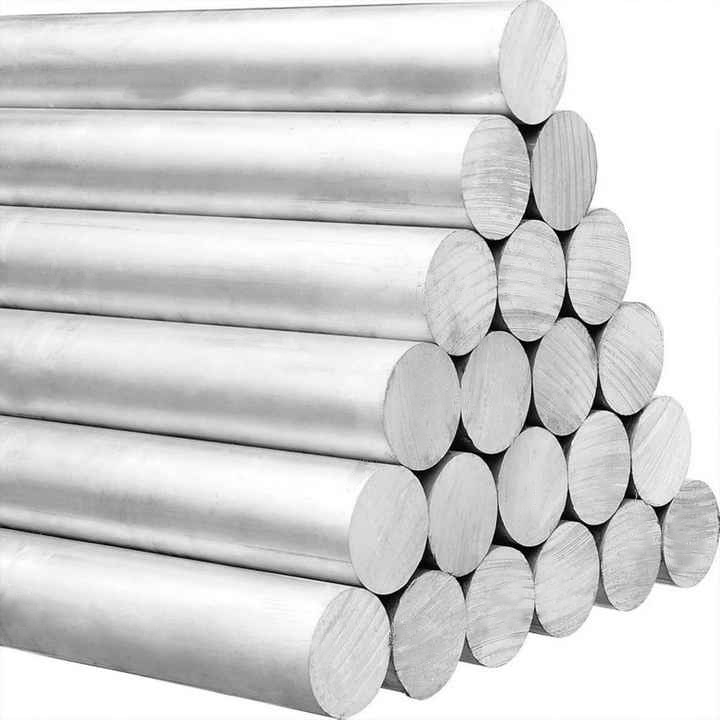

Sizes	Round Bar	2 ~ 420mm(Diameter)

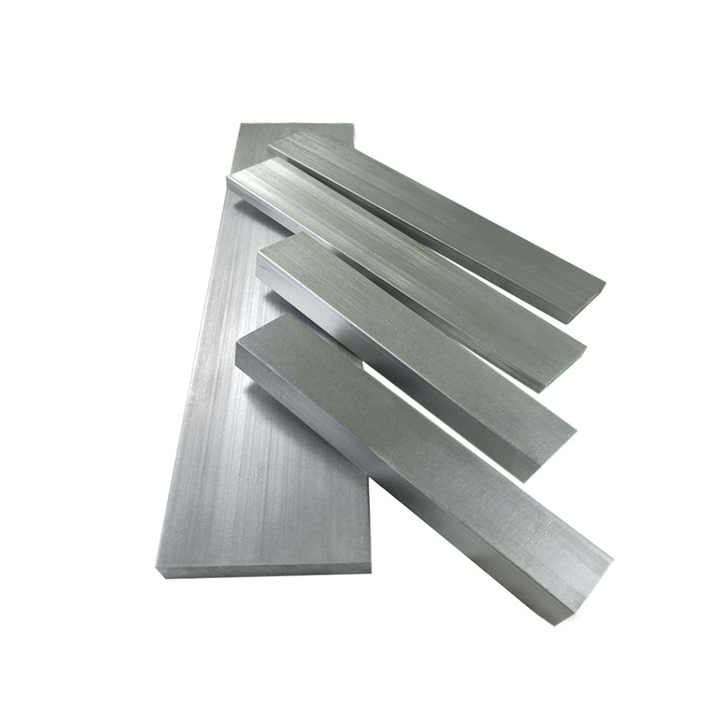

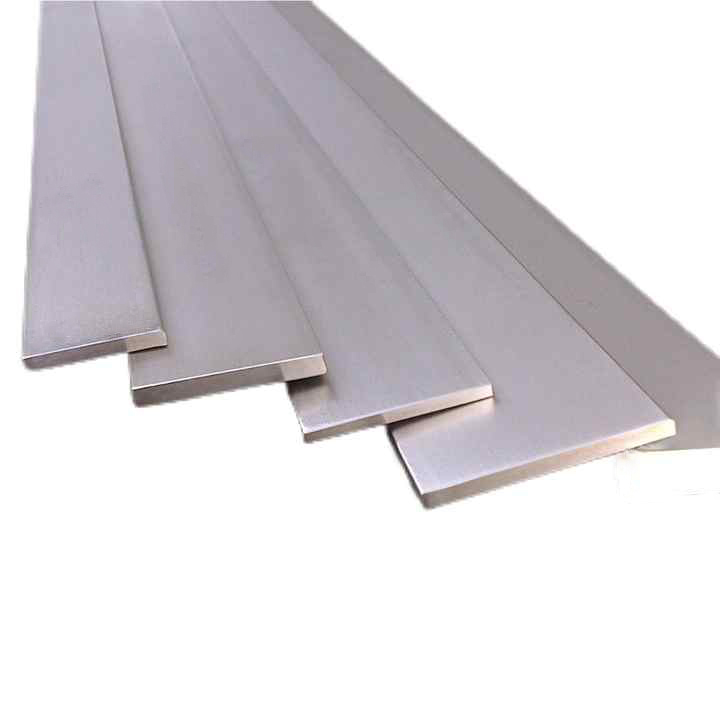

	Flat Bar	2 ~ 200mm (Thick) x 5 ~ 420mm (Width)
	Square Bar	5 x 5mm ~ 400 x 400mm

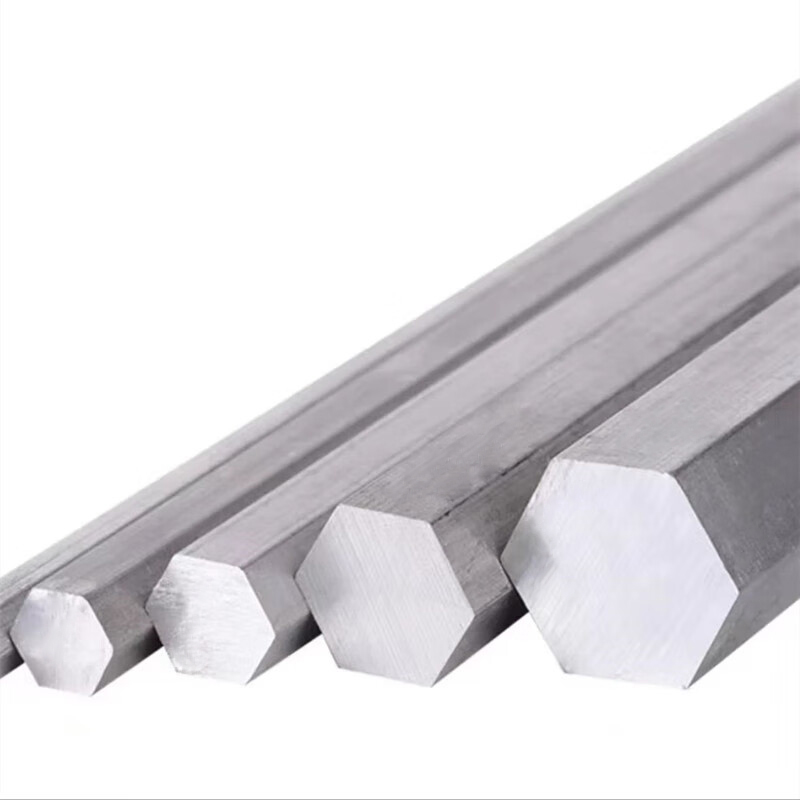

	Hexagonal Bar	5 ~ 150mm
Length	1m, 3m, 5.8m, 6m, or customized.
Technique	Extruded, Cold Drawn
Surface	Mill Finish, Anodized, Polished, etc.
Other Process	Punching, Cutting, Printing, Machining, etc.

Advantage

① Close Dimension Tolerance

The tolerance uniformity above each piece of bar can be controlled within 4um (0.004mm).

② High Straightness

General requirements of the bar straightness is strictly controlled within 0.03mm for 500mm length.

③ High Brightness

The surface condition is very smooth and uniform, the finish is controlled at Ra0.5 and the bar surface is free of trachoma, thread or scratch.

④ Length Customizable

The length can be customized according to the requirements and application, which reduce the cost for customers.

⑤ Degaussing Treatment

Alunimum bars are degaussing processed, high multiple degaussing coil to avoid the trouble to it’s usage.

⑥ Inspection of Advantage

Online dimension inspection, spot checking by QA during the production. Each batch of production must be strictly guaranteed to the requirements from customer.

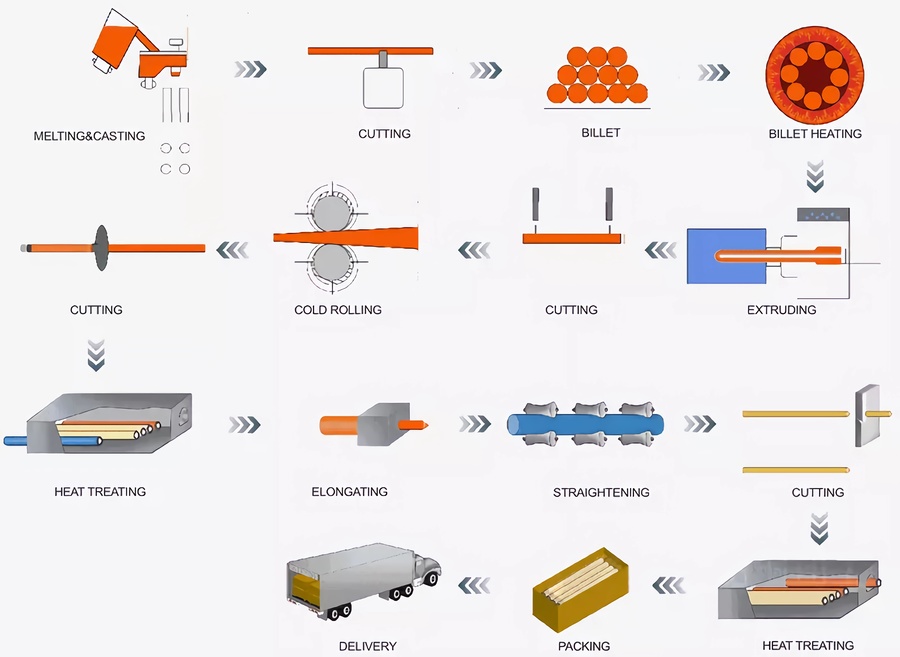

Manufacturing Process

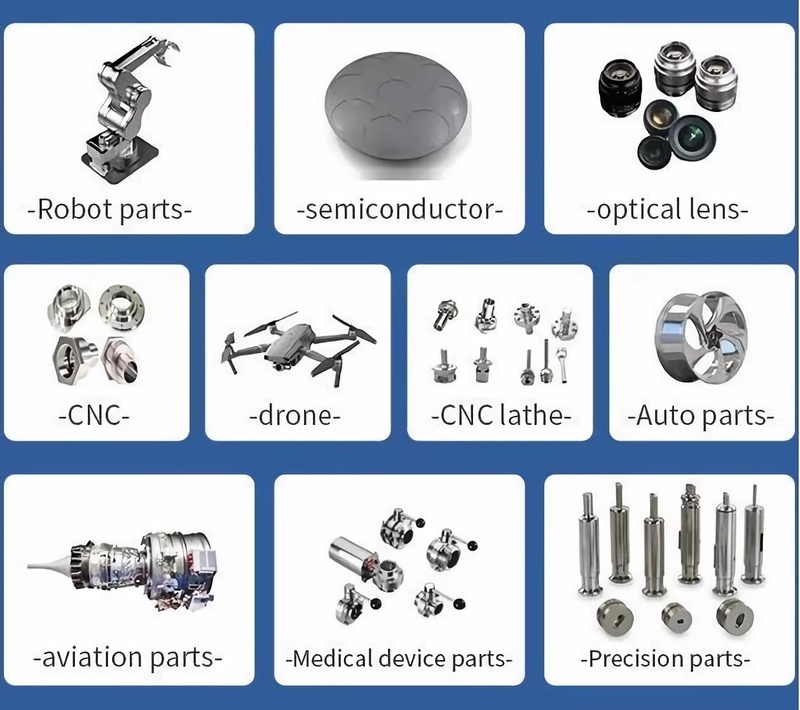

Applications

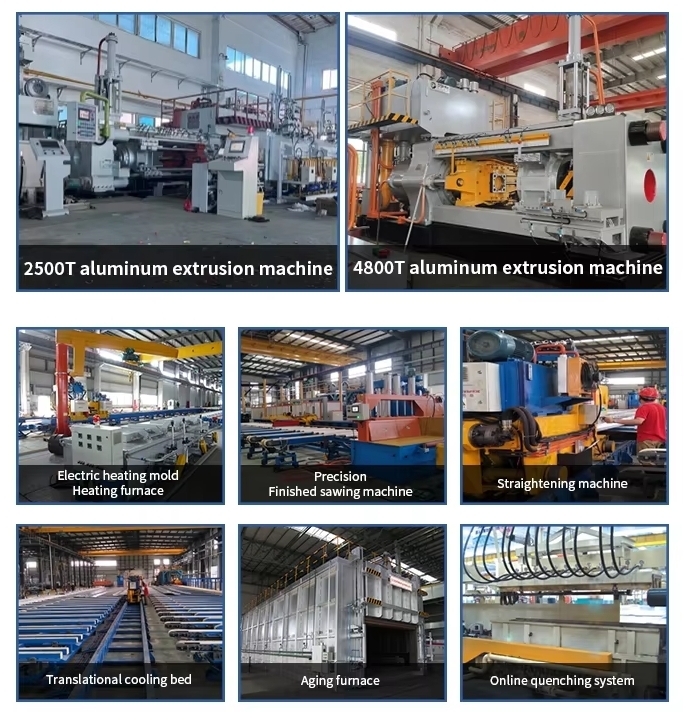

Production

China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

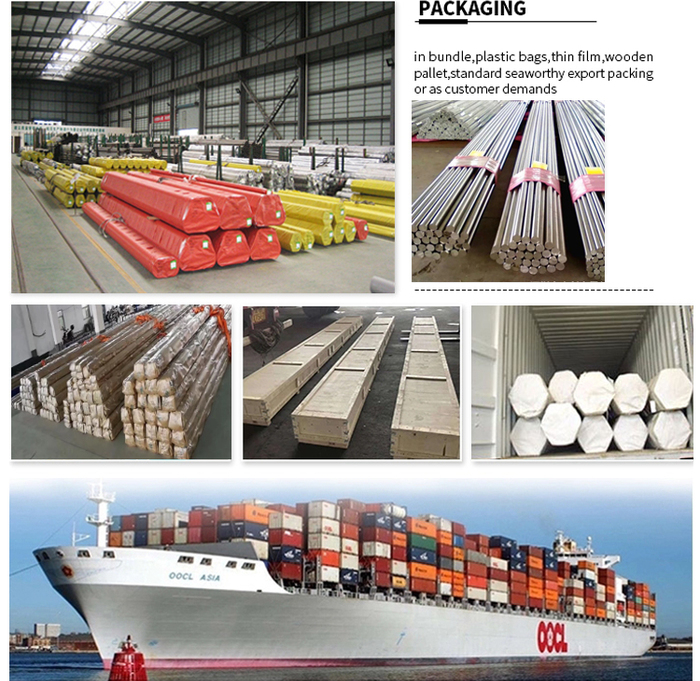

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.

Packing 1.jpg
