Aluminum
Aluminum Tube
-
ASTM SB-234, GB 5237, JIS, DIN, EN, etc.
-
1050, 1100, 3003, 5754, 6061, 6082, 6083, etc.
-
As per request.
-
NA
China Metal Group is the leading manufacturer of seamless aluminum tube in China, including round, coil, square, rectangular, flat and capillary tubes. Aluminum tube has very good characteristics of anti-corrosion and light weight. It is widely used in various industries, such as automobile, heat exchanger, radiator, refrigerator condenser, aerospace, aviation, electrical appliance, agriculture, electro mechanical, home furnishing, etc.
1. Grade
1000 Series: 1050, 1060, 1070, 1100, etc.
2000 Series: 2014, 2A12, 2017, 2024, etc.
3000 Series: 3003, 3004, 3005, 3104, 3105, etc.
5000 Series: 5052, 5083, 5754, etc.
6000 Series: 6061, 6062, 6063, 6082, 6083, etc.
7000 Series: 7005, 7020, 7022, 7050, 7075, etc.
8000 Series: 8006, 8011, 8079, etc.
2. Temper: O, F, H112, H25, T3, T4, T5, T6, T8, etc.
3. Shape: Round, Coil, Square, Rectangular, Flat and Capillary.
4. Extrusion Method: Seamless & Extruded.
5. Dimension
Shape | Outer Diameter | Thickness | Length |

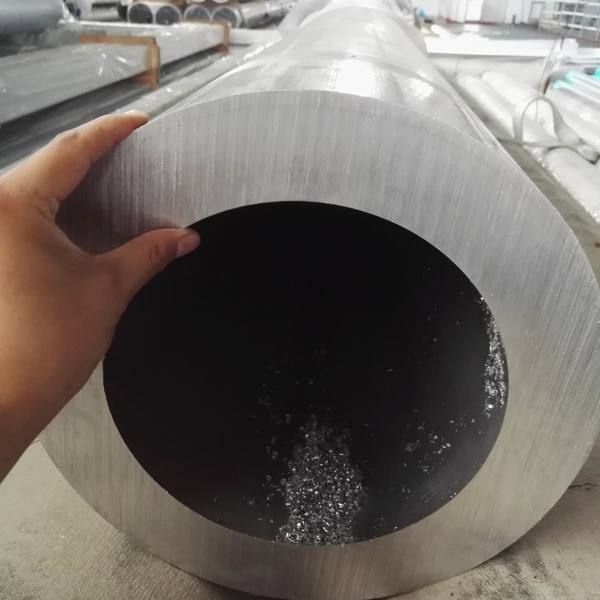

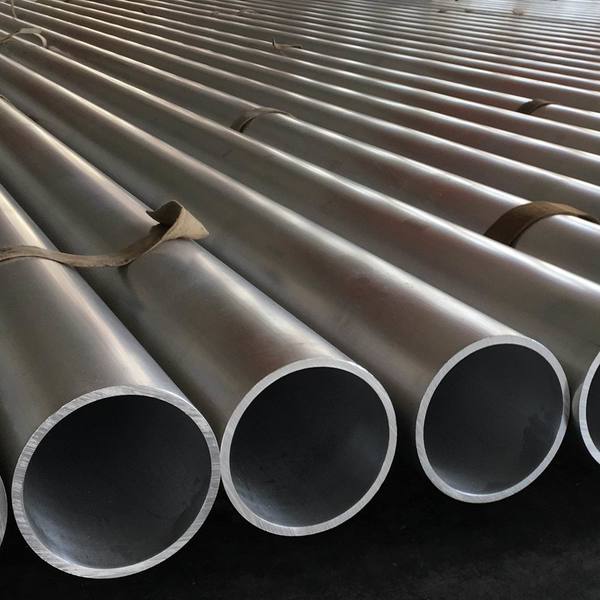

Round | 3.0mm ~ 750mm | 0.5mm ~ 170mm | According to the request. |

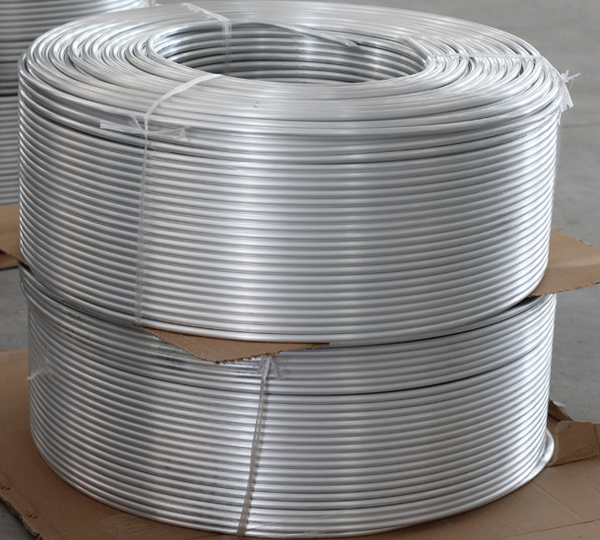

Coil | 3.5mm ~ 28mm | 0.3mm ~ 1.5mm | |
Square | 10*10mm ~ 550*550mm | 2.5mm ~ 150mm | |
Rectangular | 10*15mm ~ 500*550mm | 2.5mm ~ 150mm | |
Flat | 4mm ~ 35mm | 1.5mm ~ 7.5mm | |
Capillary | 0.8mm ~ 50mm | 0.1mm ~ 10mm |
6. Surface Treatment
a. Original
b. Anodized
c. Powder Coated
d. Colored
e. Polished
f. Sand Spray
g. Others.
7. Application
1) Pneumatic Cylinder
2) Heat Exchanger
3) Refrigerator Condenser
4) Frame Work
5) Support Columns
6) Aluminum Tube Busbar
7) Fencing
8) Handrails
9) Transportation
10) Micro-motors
11) Heat Transfer Equipment
12) Curtain Track
13) Furniture
14) Food Packaging
15) Electrical Fittings
16) Air Conditioners
17) Gas Injection
18) Others.

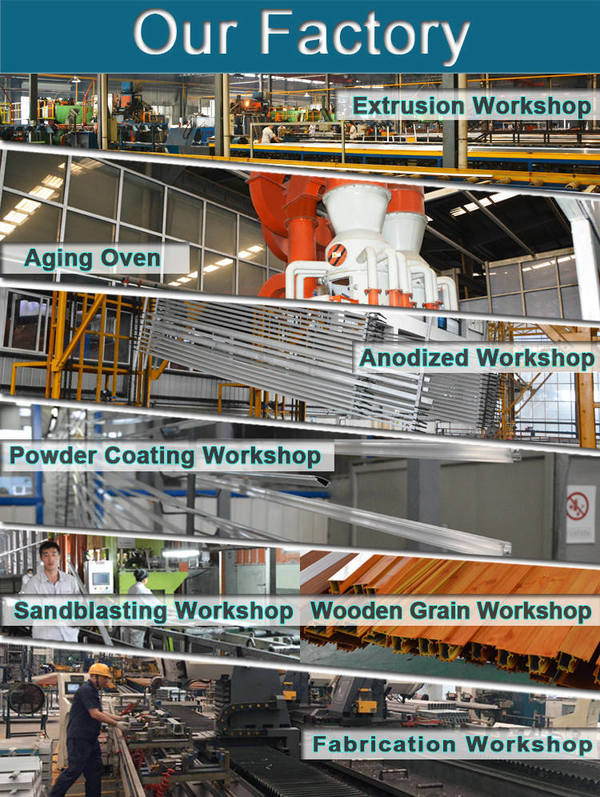

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.
Production
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
