Cold Rolled Steel Sheet

Carbon Steel

POSITIONHOME > PRODUCTS > Carbon Steel

Standard:
JIS G3141, EN 10130, DIN 1623, EN 10268, etc.
Grade:
DC01~DC07, SPCC~SPCE, ST12~ST17, etc.
Thickness:
0.15 - 3.5mm.
Width:
1000/1219/1250/1500mm, etc.

PRODUCT INQUIRY

Cold rolled steel is produced by cold rolling process at room temperature. Compared to hot-rolled steel, cold-rolled steel is more precise in thickness, smooth and surface finish, it has superior mechanical properties and processing performance. It is mainly used in construction, home appliance, automobile, light industry, agriculture, stamping parts, oil drums and so on. If you have any enquiry, please contact us, we will reply you within 24 hours.

Specification Production & Package

Standard	JIS G3141, EN 10130, DIN 1623, SAE J2340, SAE J1392, EN 10268, JIS G3135, ASTM A1008, ASTM A424, etc.
Grade	DC01, DC03, DC04, DC05, DC06 SPCC, SPCD, SPCE, SPCF, SPCG ST12, ST13, ST14, ST15, ST16 HSLA 035, 040, 045, 050, 060, 070, 080 STKM 11A, JSC270C, 65Mn, SAE 1008, SAE 1010, etc.
Thickness	0.15 ~ 3.5mm
Width	600 ~ 1850mm, or slitted width from 10 ~ 600mm
Length	2m, 2.5m, 3m, 5.8m, 6m, or as per request.
Quality	Commercial, Drawing, Deep Drawing, Extra Deep Drawing, Structural Quality.
Surface	Oiled
Processing Service	Slitting, Cutting, Bending, Decoiling, etc.

Chemical Composition (%)

Grade	C	Mn	P	S	Alta
DC01, SPCC	≤0.12	≤0.60	≤0.045	≤0.045	≥0.020
DC02, SPCD	≤0.10	≤0.45	≤0.035	≤0.035	≥0.020
DC03, SPCE	≤0.08	≤0.40	≤0.030	≤0.030	≥0.020
DC04, SPCF	≤0.06	≤0.35	≤0.025	≤0.025	≥0.015

Mechanical Properties

Grade	Yield Strength Rcl (Mpa)	Tensile Strength Rm (MPa)	Elongation A₈₀(%)	R90	N90
DC01	140~280	270~410	≥28	-	-
DC02	140~240	270~370	≥34	≥1.4	-
DC03	120~210	270~350	≥38	≥1.8	≥0.18
DC04	120~180	270~330	≥40	≥2.0	≥0.20
SPCC	130~300	270~410	≥34	-	-
SPCD	120~240	270~370	≥36	≥1.3	-
SPCE	120~210	270~350	≥38	≥1.8	≥0.18

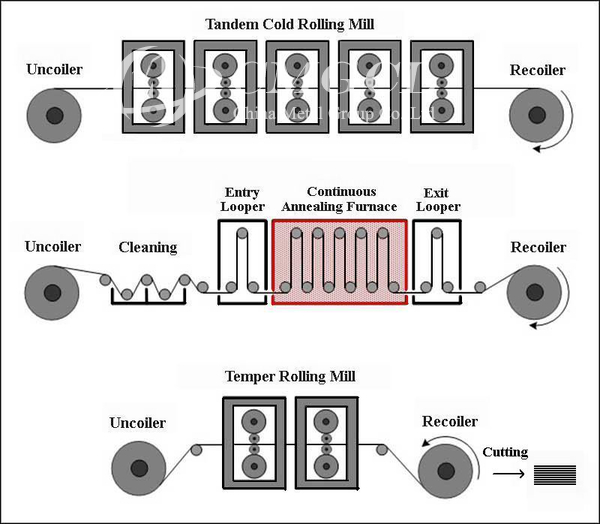

Manufacturing Process


Application

1) Drums for Bitumen and Oil

2) Automobile

3) Home Appliance

4) Stamping Parts

5) Cable Tray

6) Equipments

7) Doors

8) Storage Rack

9) Cabinet

10) Generators

11) Others.

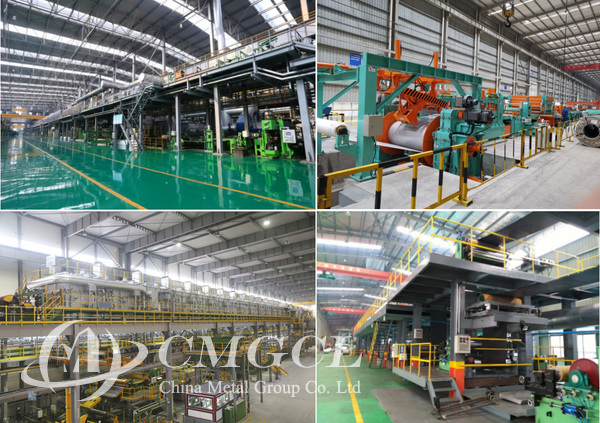

Production

China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

CR S(2).jpg

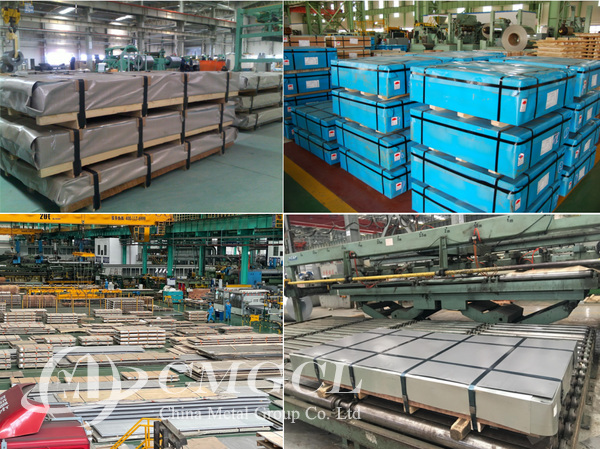

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.

CRS P(2).jpg
