Carbon Steel
Corten Steel
-
ASTM A588, ASTM A606, ASTM A242, JIS G3114, etc.
-
Corten A/B, S355J0WP, S355J2WP, S355J0W, 09Cu, etc.
-
0.5mm ~ 25mm
-
600mm ~ 3800mm

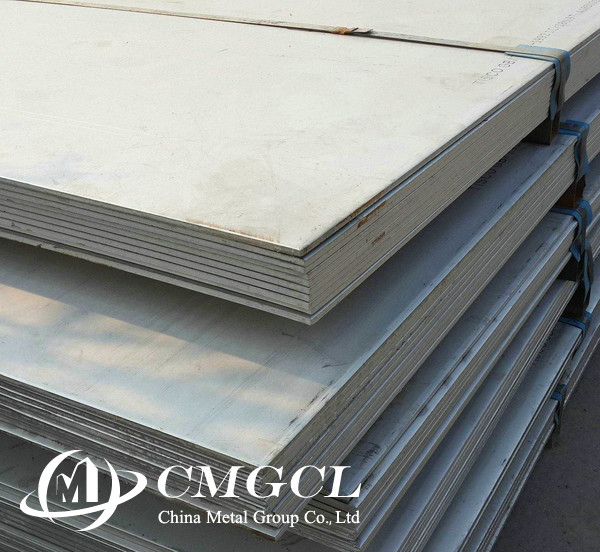

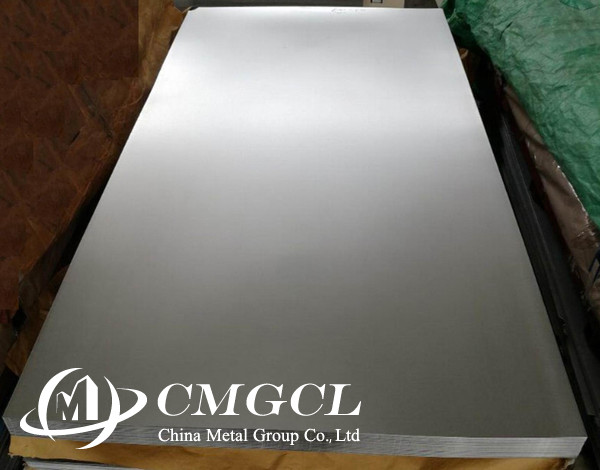

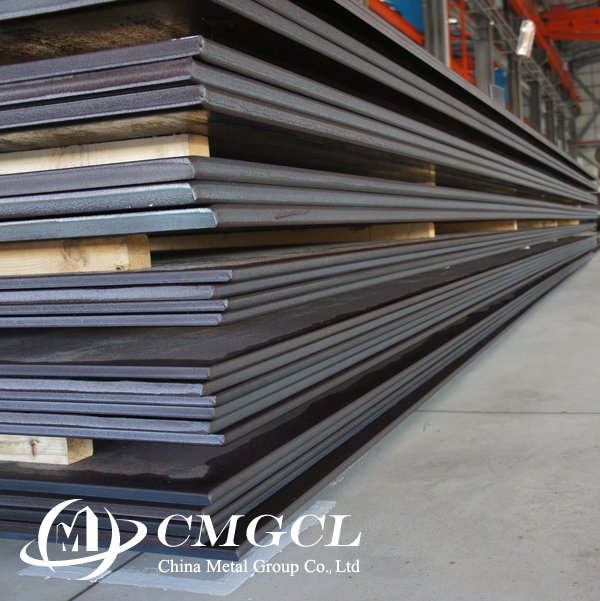

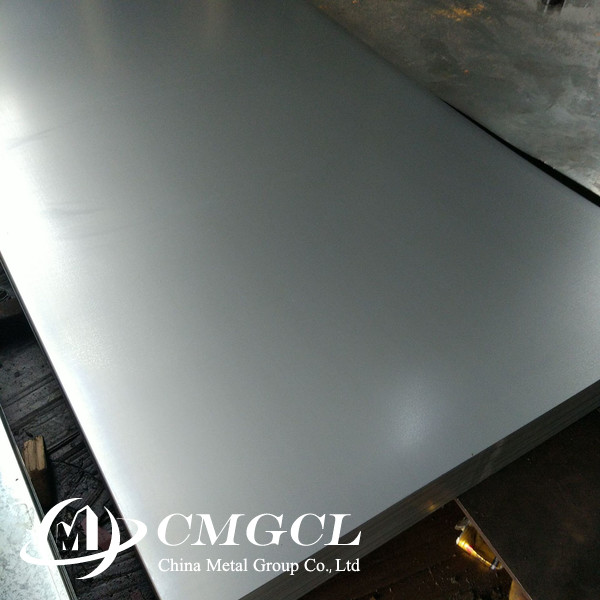

Corten Steel, also known as weathering steel, is high-strength low-alloy steel that has improved atmospheric corrosion resistance. The product is made with a proprietary alloying process that creates a protective oxide layer on the surface of the steel, which makes it highly resistant to corrosion and weathering also the products is commonly used in outdoor structures and buildings such as bridges, sculptures and facades, due to their unique weathering properties.
1. Standard: ASTM A588, ASTM A871M, ASTM A847, ASTM A606, ASTM A242, JIS G3114, EN 10155, GBT 4171, etc.
2. Grade: Corten A/B, S355J0WP, S355J2WP, S355J0W, 09CuPCrNi-A/B, SPA-H/C, etc.
3. Thickness: 0.5mm ~ 25mm
4. Width: 600mm ~ 3800mm
5. Length: According to the request
6. Chemical Component
Grade | Chemical Composition % | ||||||||
C | Si | Mn | P | S | Cr | Cu | V | Ni | |
A588 Gr.A | 0.19max | 0.3-0.65 | 0.8-1.25 | 0.03max | 0.03max | 0.4-0.65 | 0.25-0.4 | 0.02-0.1 | 0.4max |
A588 Gr.B | 0.2max | 0.15-0.5 | 0.75-1.35 | 0.03max | 0.03max | 0.4-0.7 | 0.2-0.4 | 0.01-0.1 | 0.5max |
CORTEN A | 0.12max | 0.25-0.75 | 0.2-0.5 | 0.07-0.15 | 0.05max | 0.5-1.25 | 0.25-0.55 | - | 0.65max |
CORTEN B | 0.16max | 0.3-0.5 | 0.8-1.25 | 0.03max | 0.03max | 0.4-0.65 | 0.25-0.4 | 0.02-0.1 | 0.4max |
S355JOWP | 0.12max | 0.75max | 1max | 0.06-0.15 | 0.035max | 0.3-1.25 | 0.25-0.55 | N.0.09 | 0.4max |
7. Mechanical Properties
Grade | Mechanical Property | ||
Yield Strength | Tensile Strength | Elongation % | |
A588 Gr.A | ≥ 345MPA | ≥ 485MPA | ≥ 20 |
A588 Gr.B | ≥ 345MPA | ≥ 485MPA | ≥ 20 |
CORTEN A | ≥ 355MPA | 470-630MPA | ≥ 20 |
CORTEN B | ≥ 355MPA | 470-630MPA | ≥ 20 |
S355JOWP | ≥ 355MPA | 510-680MPA | IMPACT0/27J |
8. Application
1).Railway Train
2). Bridge
3). Container
4). Stamping & Decoration Parts
5). Transportation Manufacturing
6). Architectural Structure
7). Sculpture
8). Others

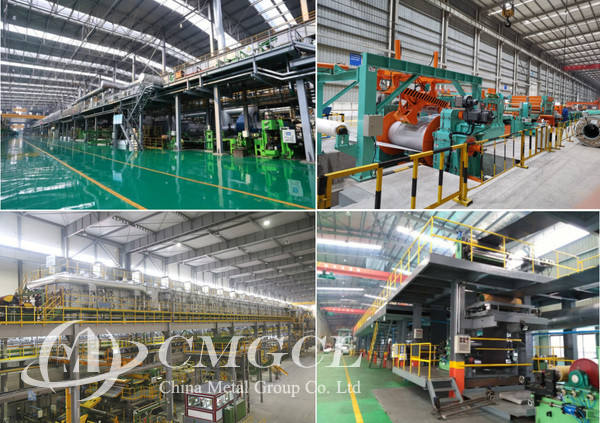

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

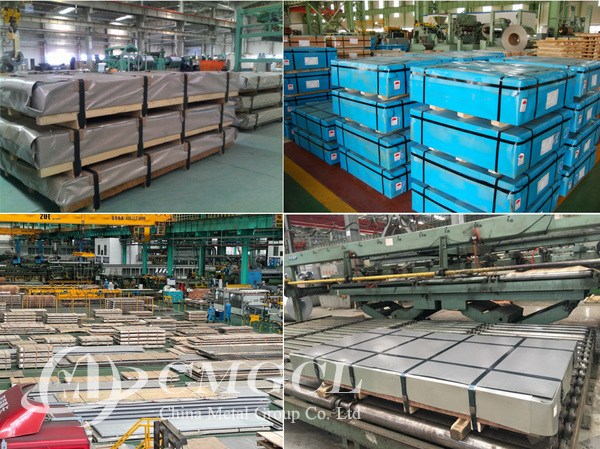

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer reqest.
