Steel Bar Grating

Carbon Steel

POSITIONHOME > PRODUCTS > Carbon Steel

Standard:
BS 4592, YB/T4001, DIN 24537, AS 1657, etc.
Grade:
ASTM A36, A569, Q235, S275JR, SS400, 304/316L, etc.
Thickness:
As per request.
Width:
As per request.

PRODUCT INQUIRY

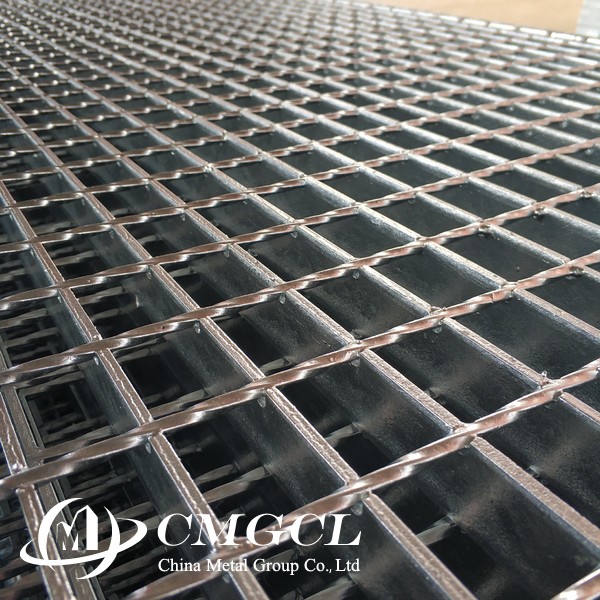

Steel bar grating is a kind of open steel member with its bearing bars & cross bars jointing at their intersections either by welding or locking. China Metal Group Co., Ltd is experienced manufacturer of steel gratings and stair treads in China. With advanced equipment, full-fledged technology as well as rich manufacturing and management experience, we guarantee the best quality for all customers.

Specification Production & Package

Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm, etc. I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc. US Standard: 1''x3/16'', 1-1/4''x3/16'', 1-1/2''x3/16'', 1''x1/4'', 1-1/4''x1/4'', 1-1/2''x1/4'', 1''x1/8'', 1-1/4''x 1/8'', 1-1/2''x1/8'', etc.
Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc.
Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS400, 304/316L Mild Steel, Low Carbon steel, Stainless Steel, Aluminum, etc.
Surface Treatment	Hot Dip Galvanized, Painted, Black, Self Colour, Spray Coating

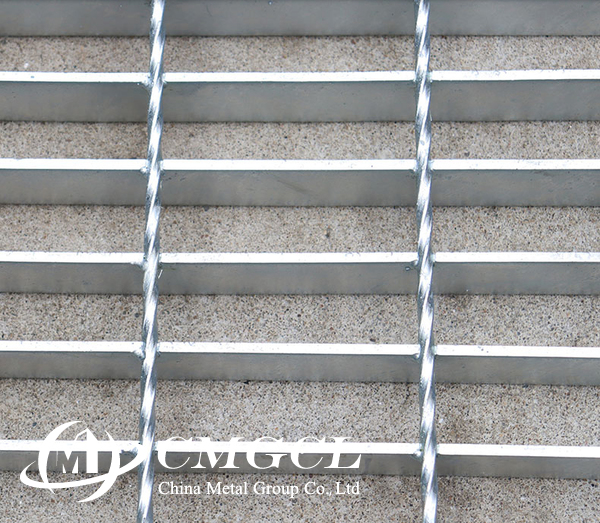

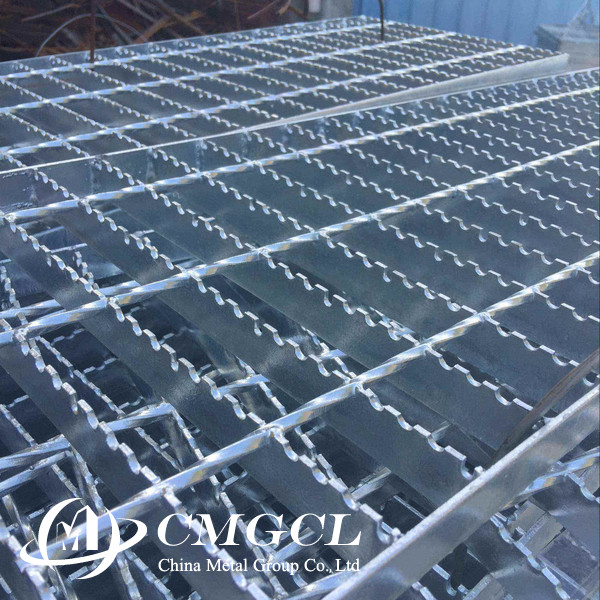

Grating Style	Plain / Smooth, Serrated / Teeth, I Bar, Serrated I bar
Standard	USA: ANSI/NAAMM(MBG531-88) UK: BS 4592-1987 Germany: DIN 24537-1-2006, Australia: AS 1657-1988

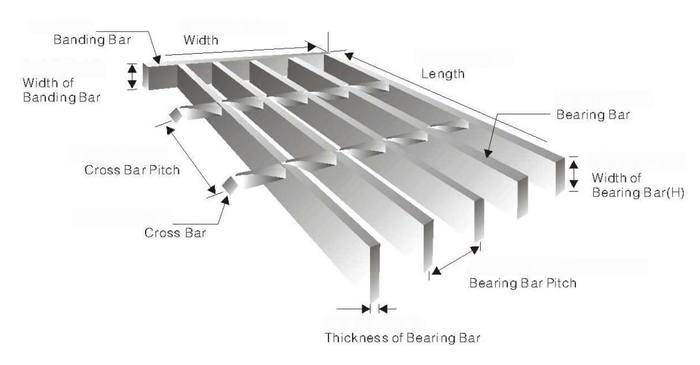

Structure

内容图 000(3).jpg

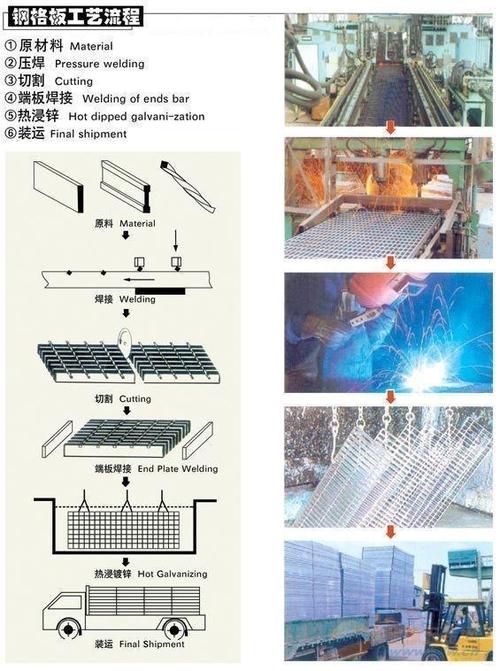

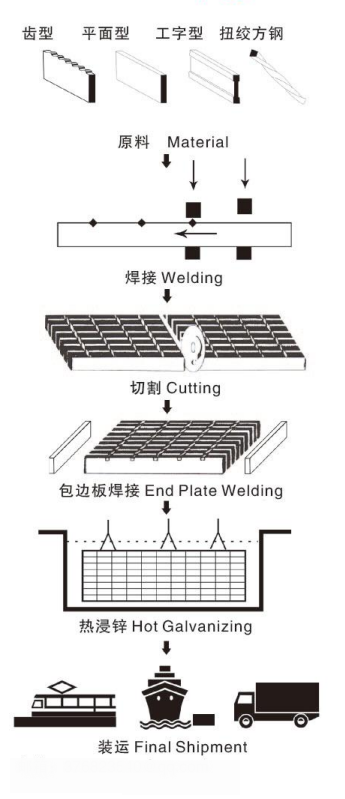

Manufacturing Process

Features

1. High Strength

2. Light Structure

3. High Bearing

4. Corrosion Resistance

5. Free Splicing

6. Sturdy Durable

Applications

1) Flooring Walkway

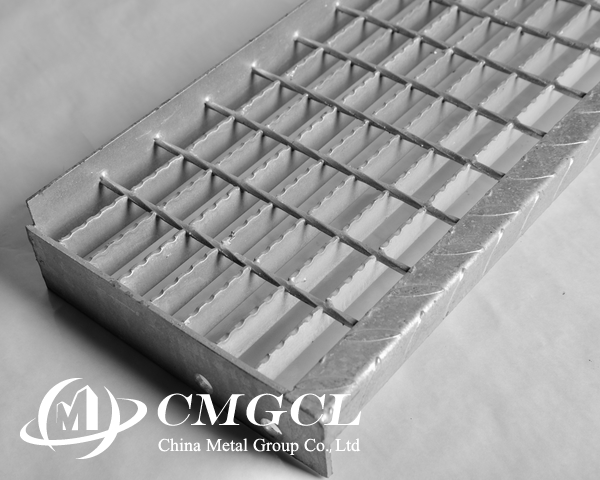

2) Stair Treads

3) Working Platform

4) Metal Ceiling

5) Security Screen

6) Manhole Covers

7) Mezzanine Flooring

8) Earth Mats

9) Shelving

10) Stanchions (Hand Rails)

11) Trench Covers, etc.

12) Others.

Production

China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

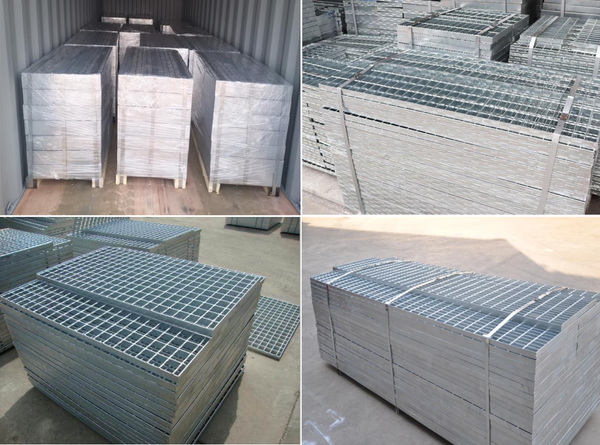

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.

GRATING PAC.jpg
