Enameled Copper Wire

Copper

POSITIONHOME > PRODUCTS > Copper

Standard:
IEC 60317, NEMA MW, JIS, etc.
Grade:
Copper, Aluminum
Thickness:
NA
Width:
NA

PRODUCT INQUIRY

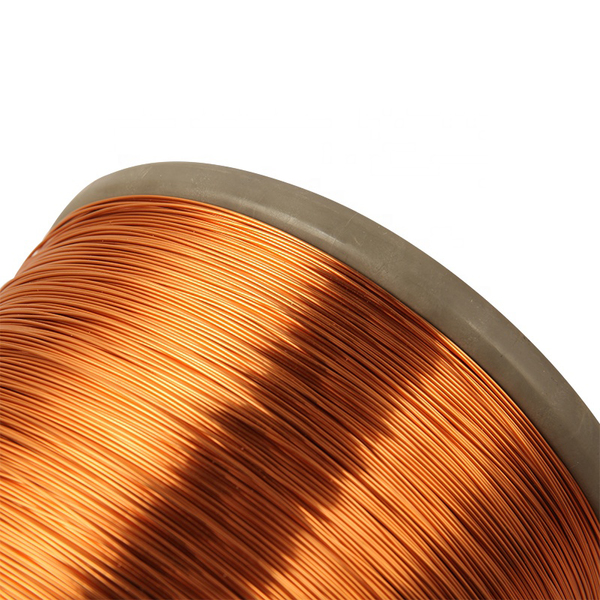

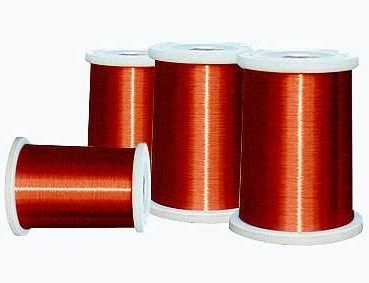

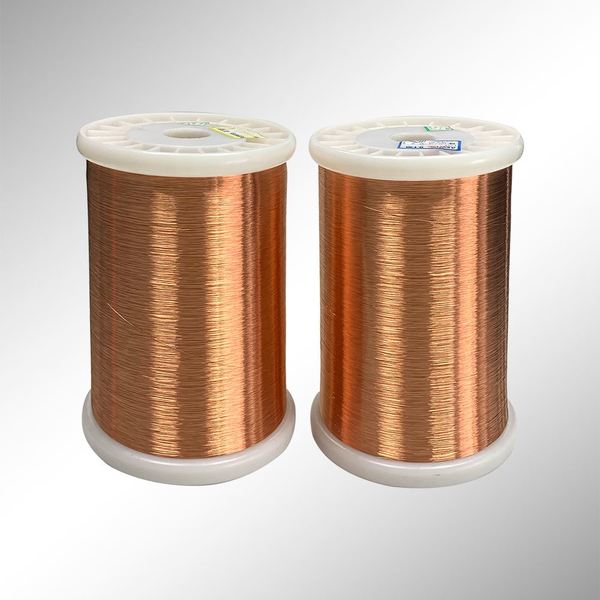

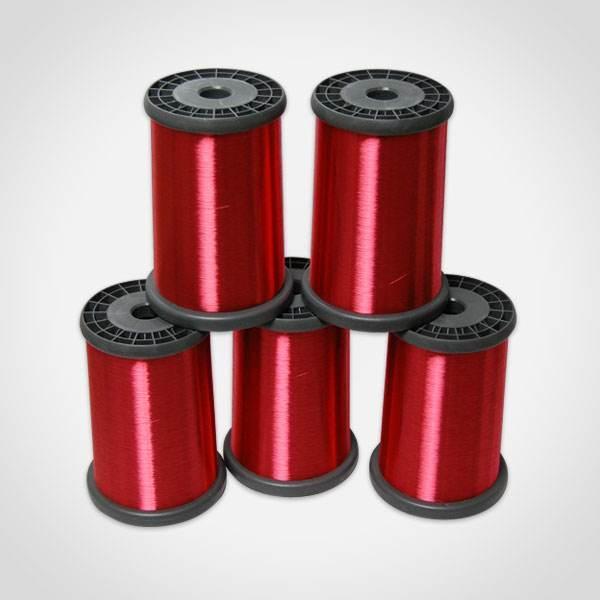

Enameled copper wire is produced by pure copper wire as conductor and covered with insulating material(such as UE, PE,EI,AI) in high temperature oven. Enameled copper wire has the characteristic of high break down voltage and high strength. The material is widely used in transformer, electronics, motor, electromagnetic induction coil, and so on.

Specification Production & Package

Standard	IEC 60317, NEMA MW, JIS, etc.
Conductor	Copper
Size	Round Wire:	0.1 ~ 6.5mm

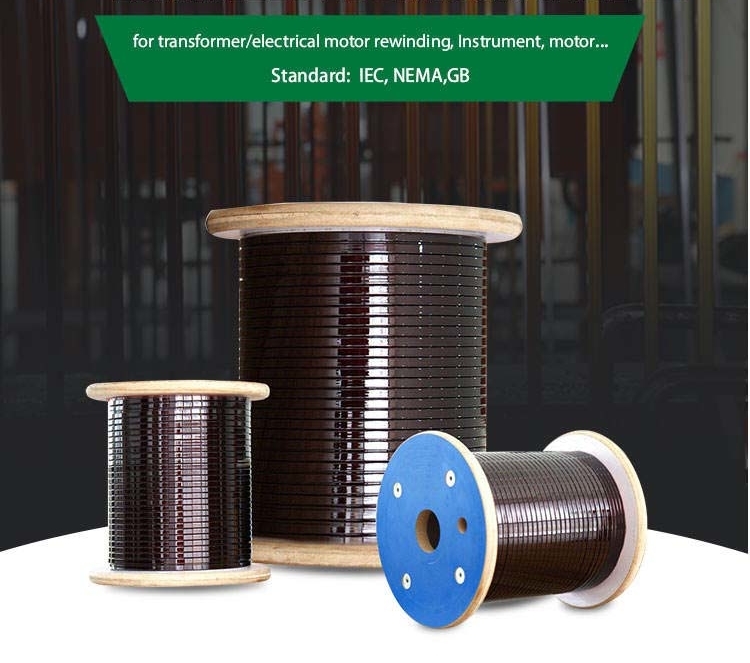

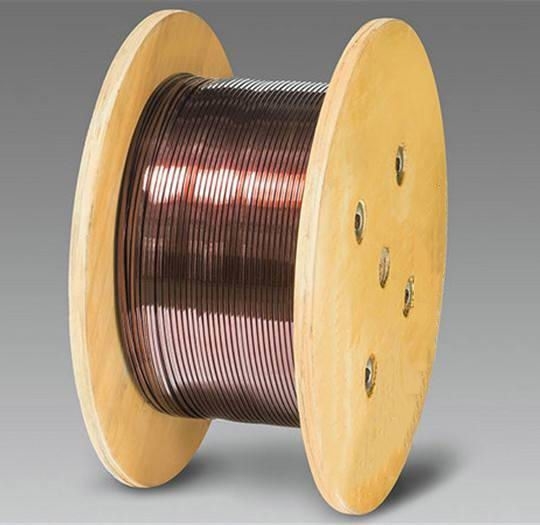

	Flat Wire:	Thickness: 0.7 ~ 5.6mm, Width: 2.0 ~ 16mm
Thermal Class	130℃, 155℃, 180℃, 200℃, 220℃, 240℃
Enamel Type	UEW, PEW, EIW, EI/AIW, AIW
Insulation Thickness	Grade 1/2/3/4
Packing	30kg~150kg ply-wood spool(250400/250500/250*600), or as per request

Type	Polyester	Modified Polyester	Polyurethane	Polyesterimide	Polyamideimide	Polyamide
Code	PEW, QZ	PEW, QZ	UEW, QA	EIW, QZY	EI/AIW, QZY/XY	AIW, QXY
Thermal Class	Class B 130℃	Class F 155℃	Class F 155℃	Class H 180℃	Class H 200℃	Class L 220℃
Insulation Thickness	Grade 1, 2, 3, 4
Standard	IEC 60317, NEMA MW, JIS
Characteristics	Good heat resistance and mechanical strength. Low cost.	High mechanical strength, good elasticity, scratch resistance, adhesion, electrical properties and solvent resistance	Solderability(no need to remove the insulation). High frequency resistance and dyeability	Good thermal shock resistance and refrigerant resistance. Excellent chemical resistance, abrasion resistance	More comprehensive performance, with high heat resistance, mechanical properties, refrigerant resistance and chemical resistance	Highest heat class High heat resistance, good solvent and refrigerant resistance

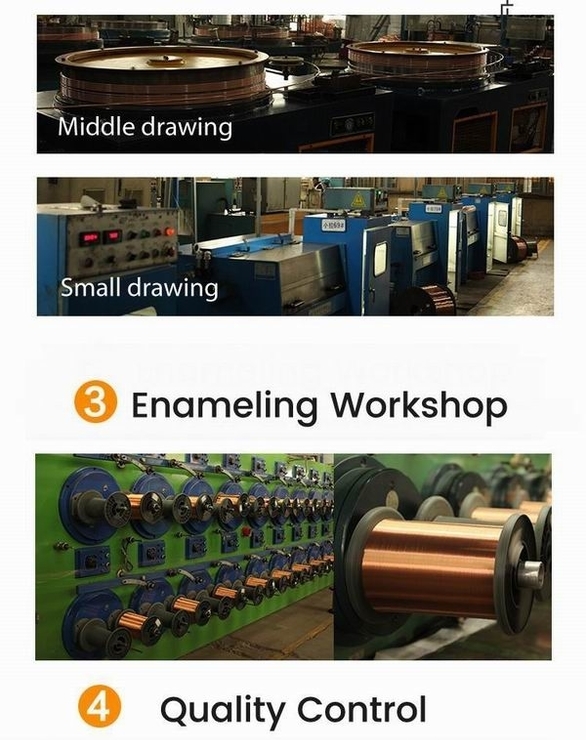

Manufacturing Process

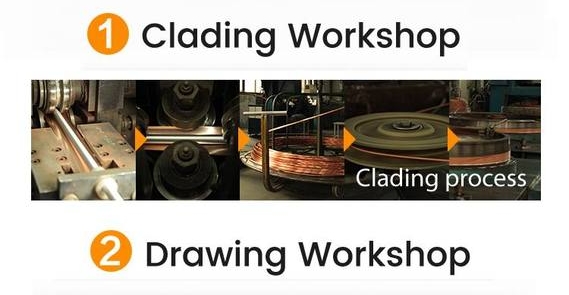

生产流程 1.jpg

生产流程 2.jpg

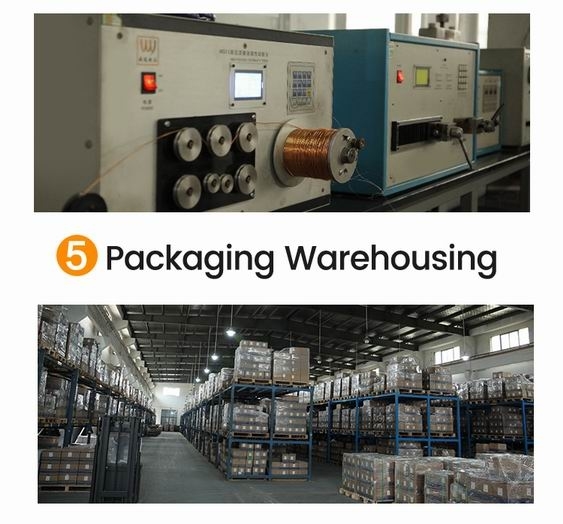

生产流程 3.jpg

Features:

1) Solid enough, the wire is not easy to be broken

2) Insulation thickness can be customized

3) Wire can reach almost zero pinhole

4) High Consistency

5) Conductors have good ductility when winding

6) Good electrical conductivity

7) The wire is even and tidy, which is convenient for users to wind

8) Low temperature soldering

9) Bonding method options: Hot air, Solvent and others.

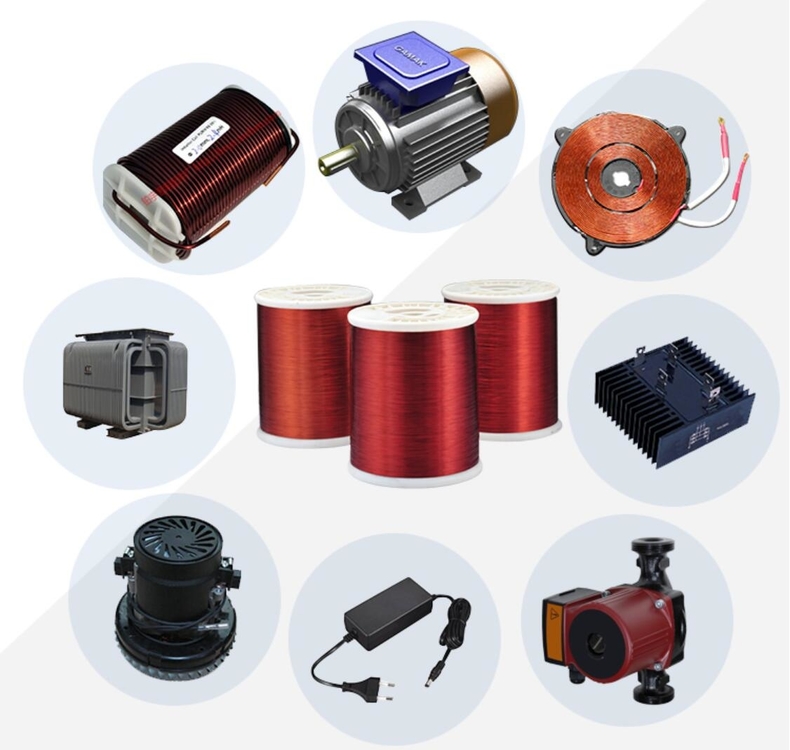

Applications

1) Transformers

2) Inductors

3) Motors

4) Speakers

5) Hard disk head actuators

6) Electromagnets

7) Others.


Productions

China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

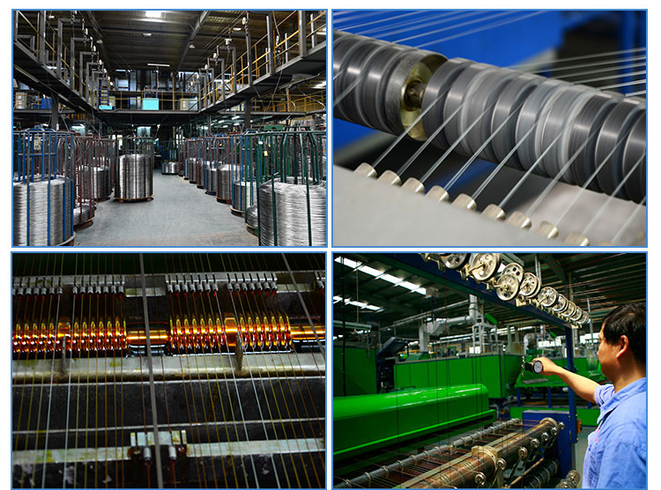

Production 1.jpg

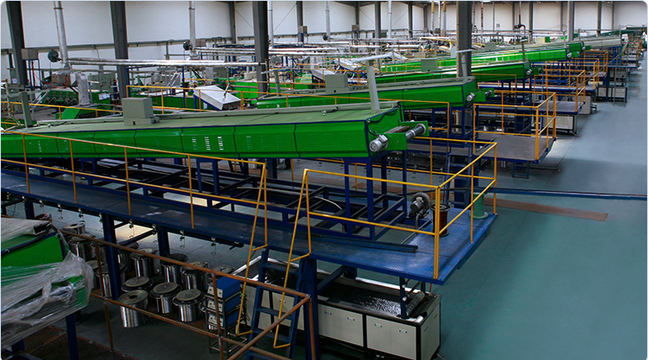

Production 2(6).jpg

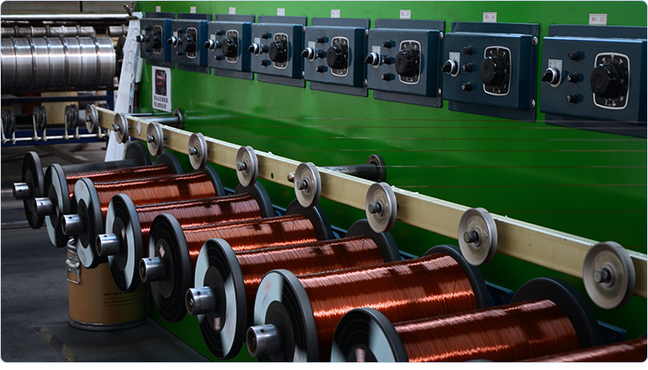

Production 3(6).jpg

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
