GI / GL / PPGI / PPGL / ETP

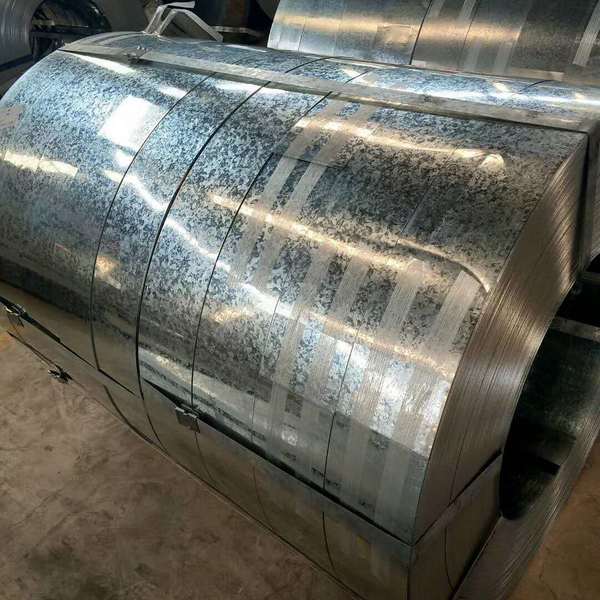

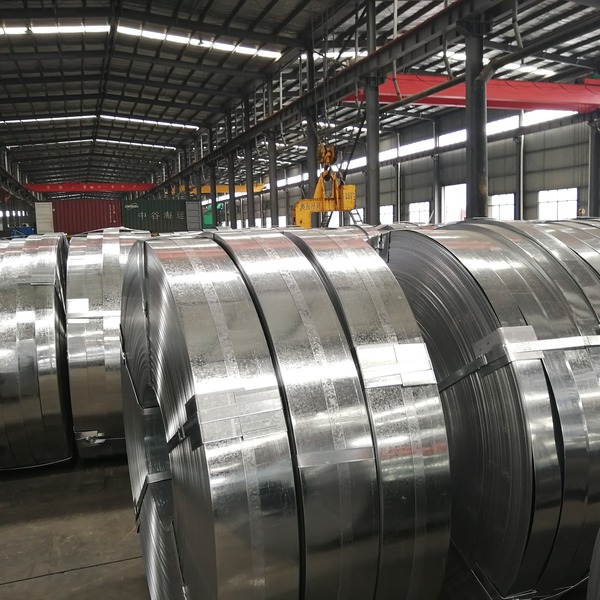

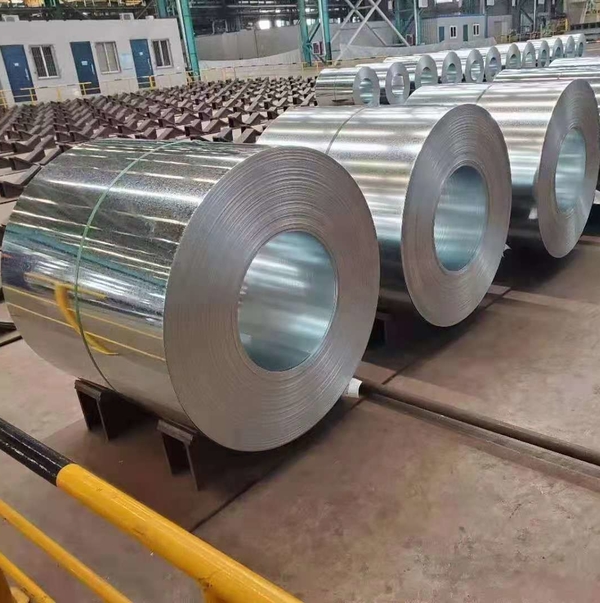

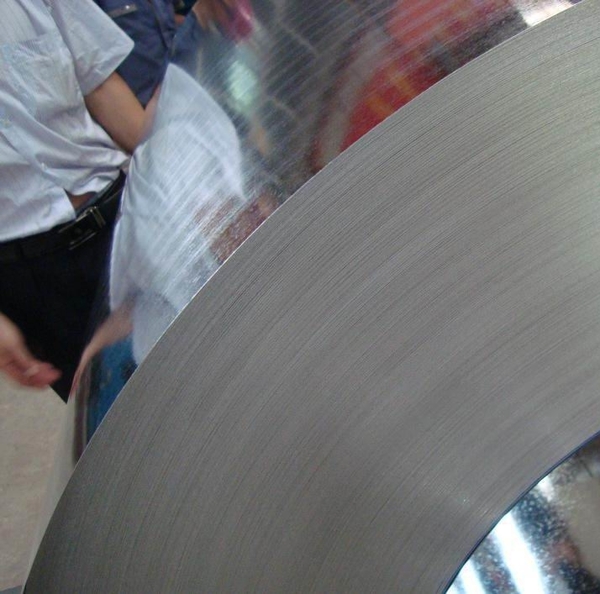

Galvanized Steel Strip
-
JIS G 3302, EN 10142/10427/10327, ASTM A653, etc.
-
SGCC, DX51D, S550GD, S350GD, JAC270D, etc.
-
0.12 ~ 3.0mm
-
5 ~ 600mm, or customized
Hot-dip galvanized steel strip is widely used in construction, home appliances, automobiles, machinery, electronics and other industries, because of its excellent forming property, painting and welding abilities, the material is suitable for fabrication by forming, stamping, pressing and bending. China Metal Group is experienced manufacturer of galvanized steel strip for decades, we guarantee the best quality with excellent weathering resistance, good adhesion and formability.
Standard | JIS G3302, EN 10142/10427/10327, ASTM A653, AS 1397, GB/T-2518, etc. |
Grade | SGCC, S350GD, S550GD, DX51D, DX52D, DX53D, DX54D, JAC270D/E, SGC340, JAC440W/R, etc. |
Thickness | 0.12 ~ 6.0mm |
Width | 5 ~ 600mm, or as per request. |
Zinc Coating | 30 ~ 275 ~ 700 g/m2 |
Spangle | Big, Regular, Minimized, Zero |
Surface Treatment | Passivation, Chromium-Free Passivation, Oiled, Passivation+Oils |
Hardness | Soft, Medium Hard, Full Hard |
Coil ID | 100/300/400/508/610mm |
Coil Weight | All available |

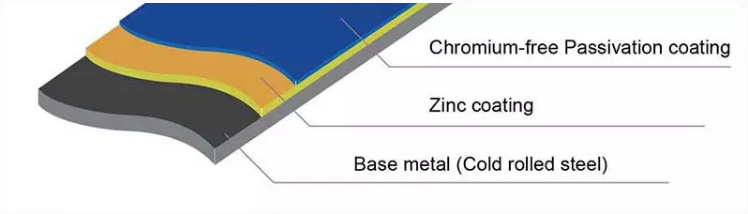

Structure

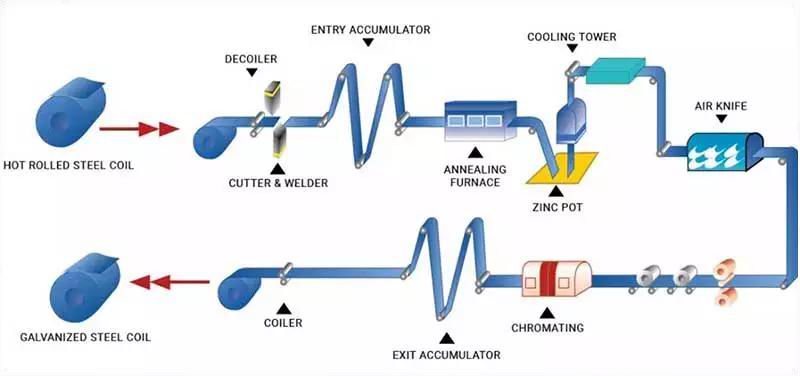

Manufacturing Process
Technical Specification
Steel Quality | Steel Grade | Standard | Equivelent Steel Grade | Applications |
Commercial Quality CQ | DX51D+Z | EN10327-2006 GB/T 2518-2008 | SGCC | General forming metal products |
DX51D+ZF | ||||
Drawing Quality DQ | DX52D+Z | SGCD1 | Drawing metal products | |
DX52D+ZF | JAC270C | |||
Deep Drawing Quality DDQ | DX53D+Z | SGCD2 | Deep drawing metal products | |
DX53D+ZF | JAC270D | |||
Extra-Deep Drawing Quality EDDQ | DX54D+Z | SGCD3 | Extra-deep drawing products | |
DX54D+ZF | JAC270E | |||
Commercial Quality High Speed Steel CQHSS | S220GD+Z | - | Structural steel | |
S250GD+Z | SGC340 | |||
S280GD+Z | SGC400 | |||
S320GD+Z | SGC440 | |||
S350GD+Z | SGC590 | |||
S550GD+Z |
Steel Quality | GB/T2518-2004 | JIS G 3302 | ASTM A653M-04 | EN 10327-04 EN 10326-04 |
Equivalent Grades | 250 | SGC340 | SS37 [255] | S250GD |
250 | SGC400 | SS40 [275] | S280GD | |
320 | SGC440 | SS50 [340] | S320GD | |
350 | SGC490 | SS55 [380] | S350GD | |
550 | SGC570 | SS80 [550] | S550GD |
Main Applicaions
1) Roofing
2) Ventilating Duct
3) Automotive
4) C/Z Purling
5) Profiles
6) Corrugated Pipes
7) Home Appliance
8) Seals
9) Staples
10) Metal Silos
11) Packing
12) Grain Bin
13) Razor Wire
14) Trailers
15) Others.

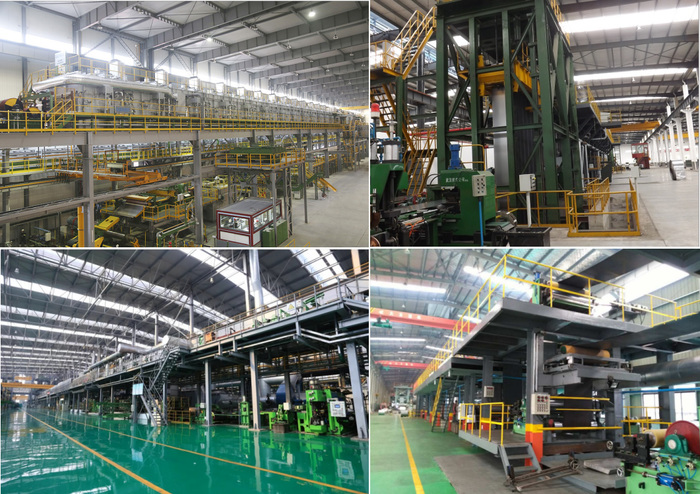

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

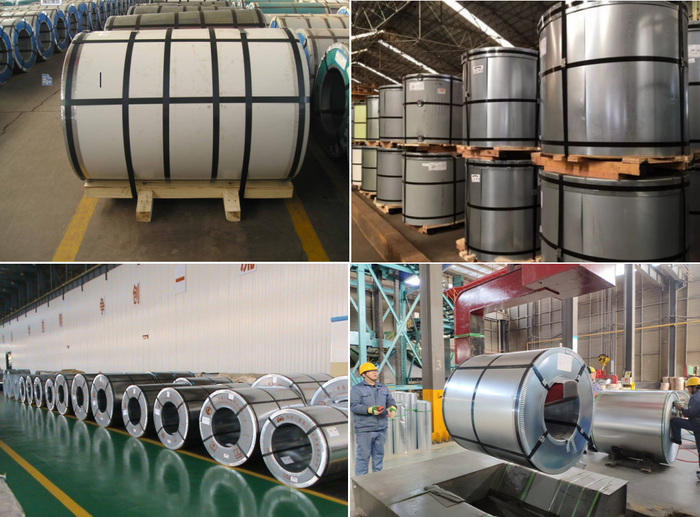

Package
The products are packed and labeled according to the regulations or customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
