GI / GL / PPGI / PPGL / ETP

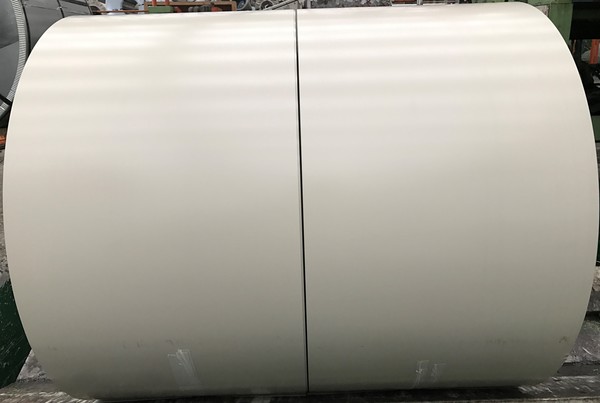

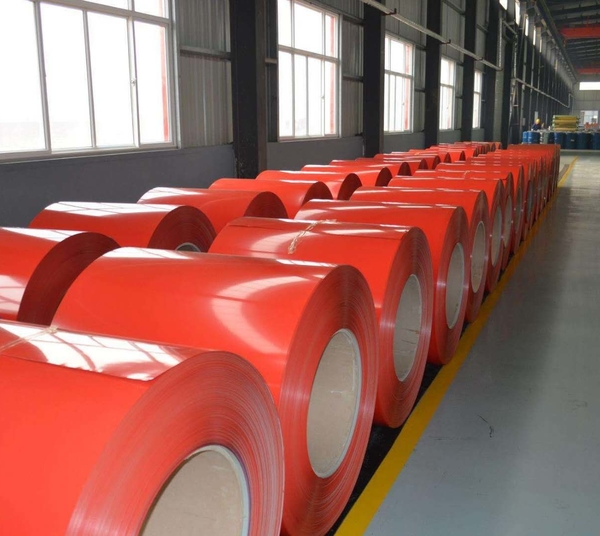

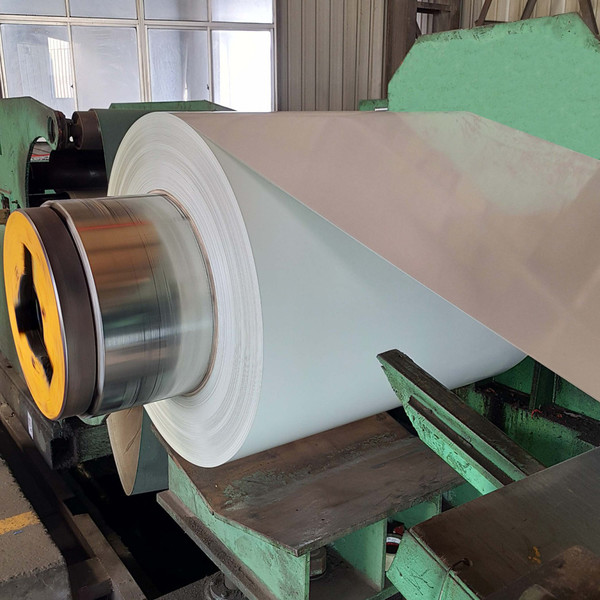

Pre-painted Galvanized Steel Coil (PPGI)
-
JIS G3312, JIS G3322, JIS G3318, ASTM A755, AS 2728
-
SGCC, DX51D, S550GD, S350GD, etc.
-
0.12~1.5mm
-
600mm-1500mm, or customized.
Pre-painted Galvanized Steel Coil is abbreviated as PPGI, it is also known as pre-coated steel, color coated steel etc. This material is widely used as roofing, sandwich panel, home appliances, furniture etc. PPGI is a product obtained by subjecting a hot-dipped galvanized steel sheet to a surface chemical treatment (coating), followed by baking and curing. The color can be customized according to the RAL color card or samples.
Standard | JIS G3312, JIS G3322, JIS G3318, ASTM A755, AS 2728, etc. |
Material | SGCC, SECD, DX51D, DX54D, S250GD, S550GD, etc. |
Thickness (TCT, BMT) | 0.11 ~ 1.5mm |
Width | 600mm ~ 1500mm, or as per request |
Zinc Coating | 30 ~ 275 g/m2 |
Paint | PE, SMP, HDP, PVDF |
Painting Thickness | Top 15 ~ 30 um, Back 7~10um, or as per request |
Surface | Normal, Wrinkle, Embossed, etc. |
Color | RAL colors, or customized. |
Coil ID | 508/610mm |
Coil Weight | 3 ~ 8 tons, or as per request |
Popular RAL Colors
Manufacturing Process

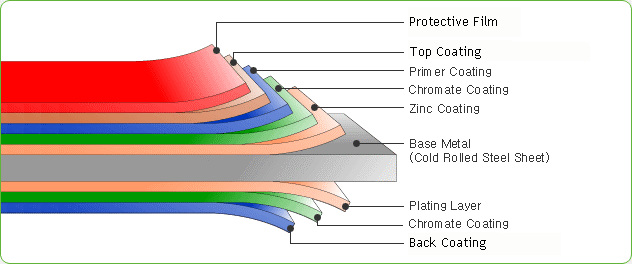

Product Structure
Paint Introduction
Classifications | Items | Symbol |
Paint Type | Polyester | PE |
Silicon Modified Polyester | SMP | |
High-Durability Polyester | HDP | |
Polyvinylidene Fluoride | PVDF | |
Paint Surface Texture | Regular Prepainted | TC |
Embossed Sheet | YA | |
Printed Sheet | YI | |
Paint Structure | One-Coating and One-Baking | 2/1 |
Double-Coating and Double-Baking | 2/2 |
Main Applicaions
1) Sandwich Panel
2) Roofing
3) Home Appliances
4) Steel Shelving
5) Building
6) Transportion
7) Decoration
8) Magnetic Write Board
9) Furniture
10) Others.

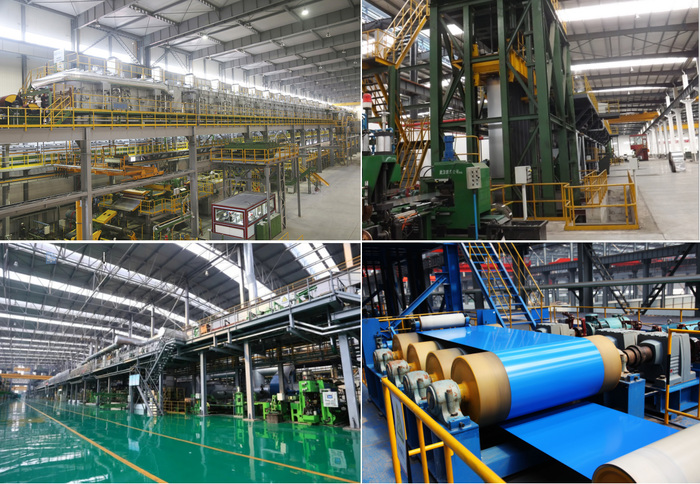

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

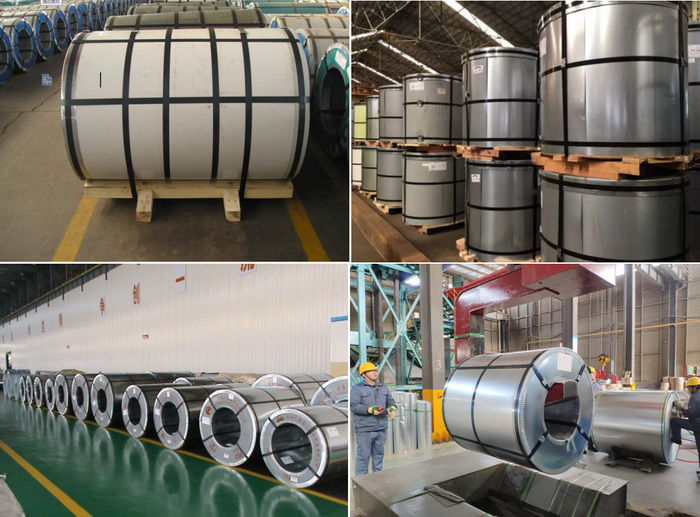

Package
The products are packed and labeled according to the regulations or customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
