GI / GL / PPGI / PPGL / ETP

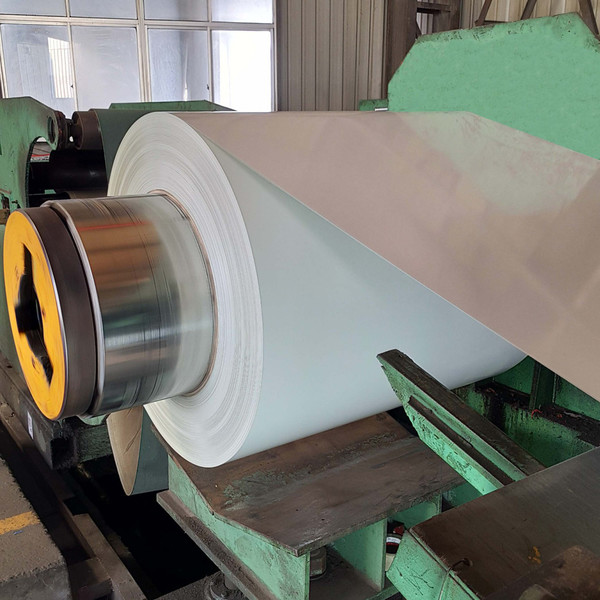

Pre-painted Galvalume Steel Coil (PPGL)
-
ASTM, JIS, EN, DIN, AS, etc.
-
SGCC, DX51D, S550GD, S350GD, etc.
-
0.12 ~ 1.5mm
-
600mm-1500mm, or customized.
PPGL is Pre-painted galvalume steel, the galvalume steel coil uses the cold-rolled steel sheet as a substrate and solidified by 55% aluminum, 43.4% zinc and 1.6% silicon at 600 °C. It combines the physical protection and high durability of aluminum and the electrochemical protection of zinc. PPGL has higher corrosion resistance than PPGI, it can be used in tropical, rainy countries and other regions. In particular, the aluminum-zinc plate with 55% aluminum content is mainly exported to hot and humid countries.
Standard | ASTM, JIS, EN, DIN, AS, etc. |
Material | SGCC, SECD, DX51D, DX54D, S250GD, S550GD, etc. |
Thickness (TCT, BMT) | 0.11 ~ 1.5mm |
Width | 600mm ~ 1500mm, or as per request. |
Zinc Coating | 30 ~ 275 g/m2 |
Paint | PE, SMP, HDP, PVDF |
Painting Thickness | Top 15 ~ 30 um, Back 5 ~ 10um, or as per request |
Surface | Normal, Wrinkle, Embossed, etc. |
Color | RAL colors, or customized. |
Coil ID | 508/610mm |
Coil Weight | 3 ~ 8 tons, or as per request |

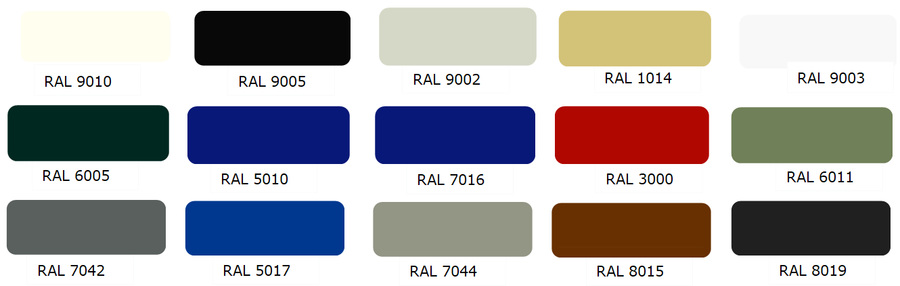

Popular RAL Colors

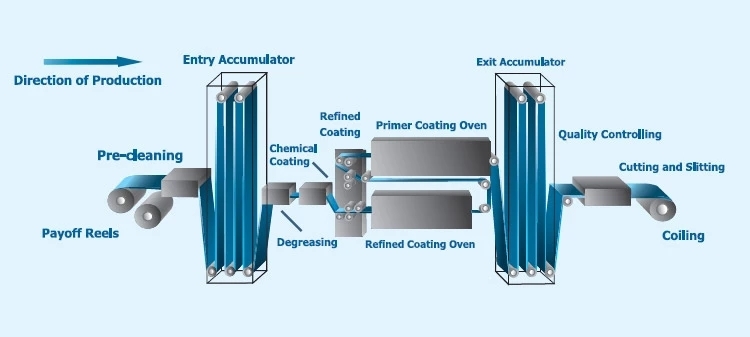

Manufacturing Process

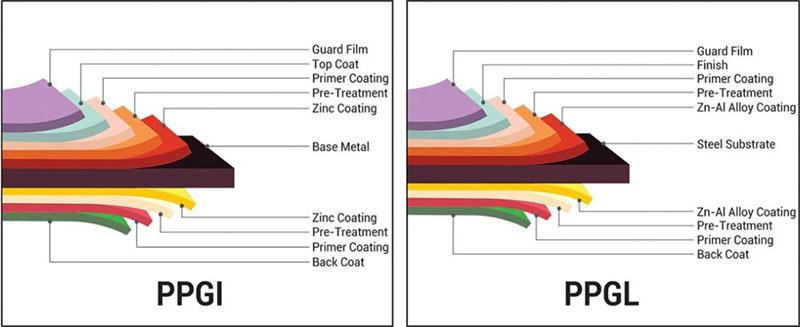

Coating Layer of PPGI and PPGL
Paint Introduction
Classifications | Items | Symbol |
Paint Type | Polyester | PE |
Silicon Modified Polyester | SMP | |
High-Durability Polyester | HDP | |
Polyvinylidene Fluoride | PVDF | |
Paint Surface Texture | Regular Prepainted | TC |
Embossed Sheet | YA | |
Printed Sheet | YI | |
Paint Structure | One-Coating and One-Baking | 2/1 |
Double-Coating and Double-Baking | 2/2 |
Main Applicaions
1) Sandwich Panel
2) Roofing
3) Home Appliances
4) Steel Shelving
5) Building
6) Transportion
7) Furniture
8) Decoration
9) Others.

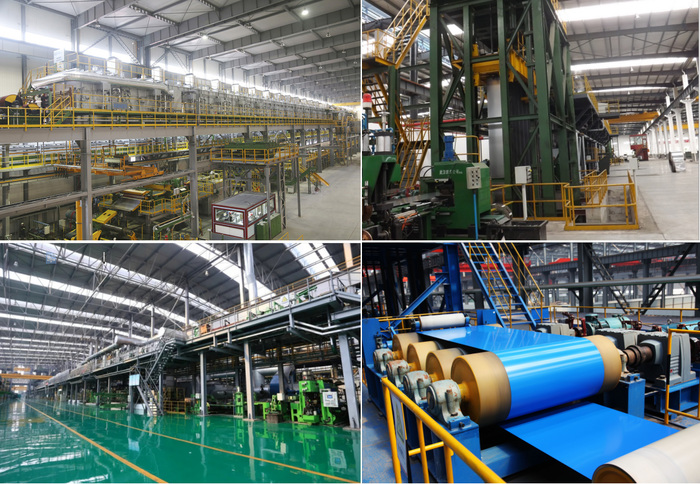

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.
Package
The products are packed and labeled according to the regulations or customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
