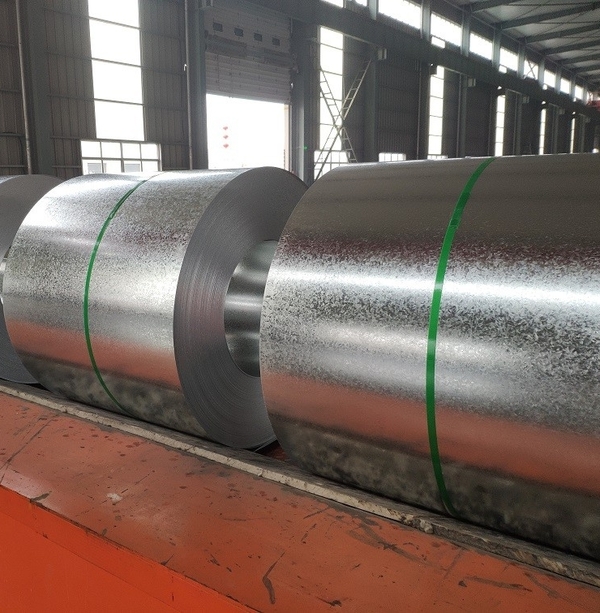

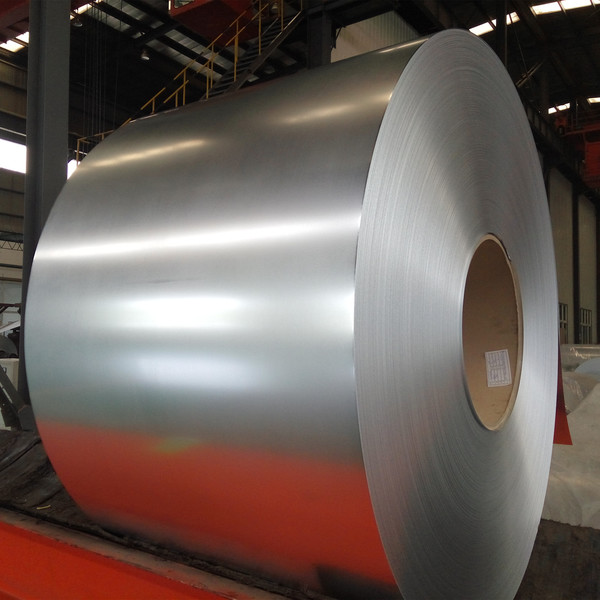

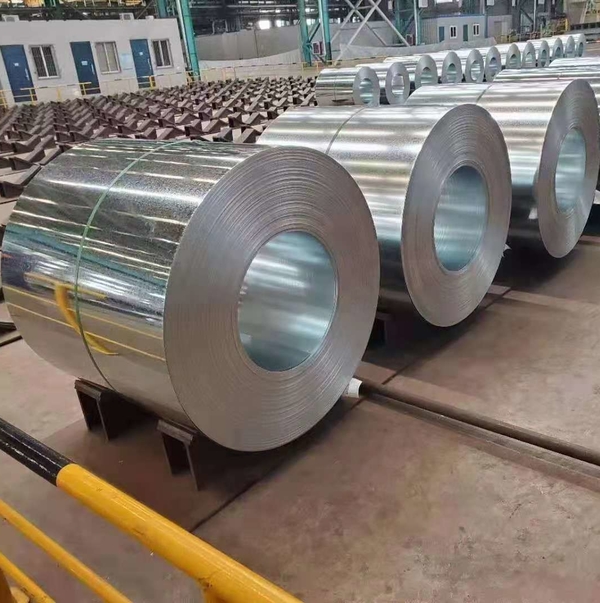

Hot Dip Galvanized Steel Coil
-
JIS G 3302, EN 10142/10427/10327, ASTM A653, etc.
-
SGCC, DX51D, S350GD, S550GD, JAC270D, etc.
-
0.12 ~ 6.0mm
-
600mm ~ 1800mm, or customized.
![](/template/default/images/jiantou.png)
![](/template/default/images/jiantou_1.png)
Hot-dip galvanized steel coil is coated in liquid zinc after cold rolling of the strip steel. The hot dip galvanizing coil has excellent formability, impact resistance, good corrosion resistance and good welding. The complex physical and chemical reactions of the substrate and the molten plating bath of the hot dip galvanized steel strip form the structure of the Zn-Fe alloy layer. The alloy layer is integrated with the pure zinc layer and the strip matrix, so it has a strong corrosion resistance. It can be achieved without the outside environment influence, always maintain itself best performance and appearance.
Standard | JIS G3302, EN 10142/10427/10327/10346, ASTM A653, GB/T-2518, AS 1397, ASTM A527, etc. |
Grade | SGCC, S350GD, S550GD, DX51D, DX52D, DX53D, DX54D, CGCC, SGC340, JAC270D/E, JAC440W/R, etc. |
Thickness | 0.12 ~ 6.0mm |
Width | 600 ~ 1800mm, or slitted strip. |
Zinc Coating | 40 ~ 275 ~ 700g/m2 |

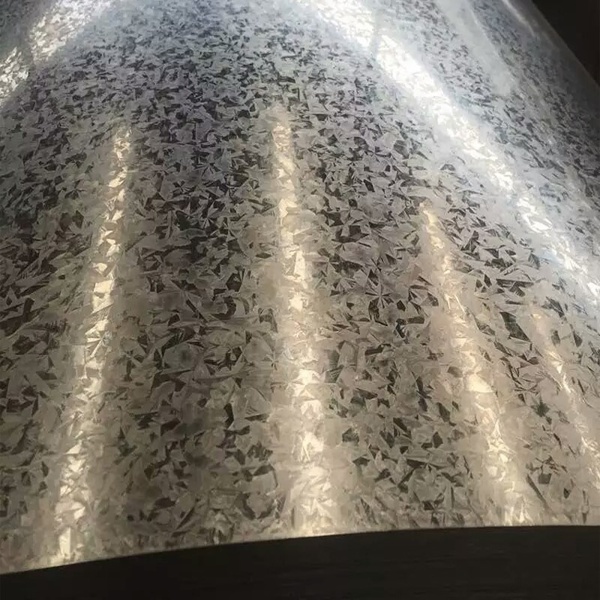

Spangle | Big, Regular, Minimized, Zero |
Surface Treatment | Passivation, Chromium-Free Passivation, Oiled, Passivation+Oils |
Hardness | Soft, Medium Hard, Full Hard |
Coil ID | 508/610mm |
Coil Weight | 3~8 tons, or as per request |

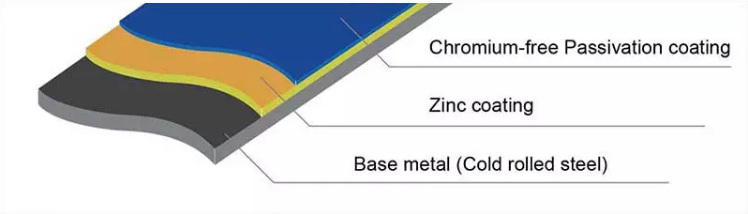

Structure

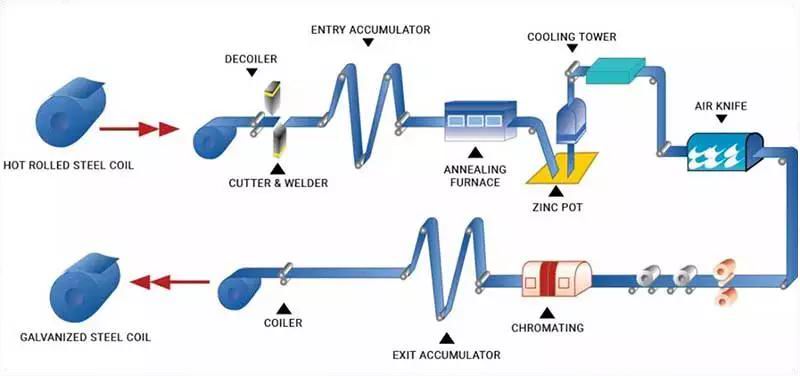

Manufacturing Process
Technical Specification
Steel Quality | Steel Grade | Standard | Equivelent Steel Grade | Applications |
Commercial Quality CQ | DX51D+Z | EN10327-2006 GB/T 2518-2008 | SGCC | General forming metal products |
DX51D+ZF | ||||
Drawing Quality DQ | DX52D+Z | SGCD1 | Drawing metal products | |
DX52D+ZF | JAC270C | |||
Deep Drawing Quality DDQ | DX53D+Z | SGCD2 | Deep drawing metal products | |
DX53D+ZF | JAC270D | |||
Extra-Deep Drawing Quality EDDQ | DX54D+Z | SGCD3 | Extra-deep drawing products | |
DX54D+ZF | JAC270E | |||
Commercial Quality High Speed Steel CQHSS | S220GD+Z | - | Structural steel | |
S250GD+Z | SGC340 | |||
S280GD+Z | SGC400 | |||
S320GD+Z | SGC440 | |||
S350GD+Z | SGC590 | |||
S550GD+Z |
Steel Quality | GB/T2518-2004 | JIS G 3302 | ASTM A653M-04 | EN 10327-04 EN 10326-04 |
Equivalent Grades | 250 | SGC340 | SS37 [255] | S250GD |
250 | SGC400 | SS40 [275] | S280GD | |
320 | SGC440 | SS50 [340] | S320GD | |
350 | SGC490 | SS55 [380] | S350GD | |
550 | SGC570 | SS80 [550] | S550GD |
Main Applicaions
1) Roofing
2) Ventilating Duct
3) Automotive
4) C/Z Purling
5) Profiles
6) Trailers
7) Home Appliance
8) Grain Bin
9) Metal Silos
10) Generators
11) Others.
Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

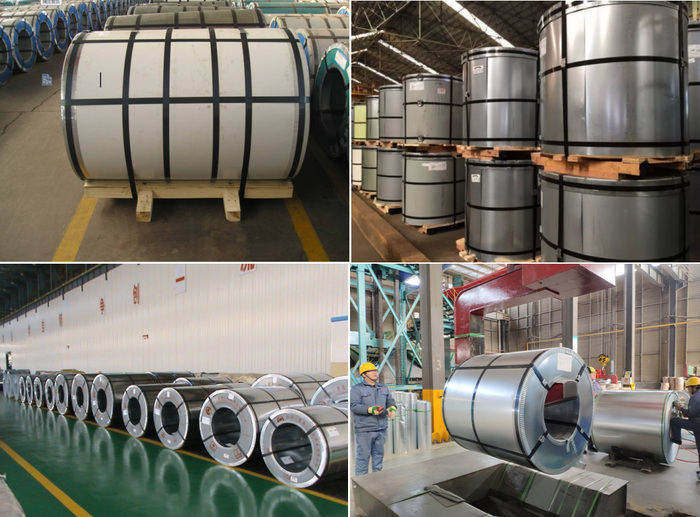

Package
The products are packed and labeled according to the regulations or customer's requests.
Great care is taken to avoid any damage which might be caused during storage or transportation.
In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
