Galvanized Steel Pipe

Carbon Steel

POSITIONHOME > PRODUCTS > Carbon Steel

Standard:
BS1387, EN10025, EN10219, ASTM A53, ASTM A529, BS EN10255, etc.
Grade:
SS400, Q235, S275JR, Q345, S355JR, GR.B-D, STK500, etc.
Thickness:
0.5 ~ 25mm
Width:
NA

PRODUCT INQUIRY

The molten metal is reacted with an iron matrix to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is pickling the steel pipe first, in order to remove the iron oxide on the surface, after pickling, it is washed by ammonium chloride or zinc chloride aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then fed into hot dip plating tank. Hot-dip galvanized steel pipe has the advantages of uniform plating, strong adhesion and long service life.

Specification Production & Package

Standard	BS1387, EN10025, EN10219, JIS G3444, ASTM A53, ASTM A529, BS EN10255, GB/T3091, etc.
Grade	SS400, Q235, S275JR, Q345, S355JR, GR.B-D, STK500, etc.
Zinc Coating Mass	60 ~ 800 gm/m²
	Diameter / Caliber	Thickness	Length
Round Pipe	10mm ~ 1200mm	0.4 - 20mm	2m, 5.8m, 6m, 11.8m, 12m, or as per request.
Square Pipe	10 x 10mm ~ 850 x 850mm	0.5 - 25mm
Rectangular Pipe	10 x 20mm ~ 500 x 750mm	0.5 - 25mm
Oval Pipe	20 x 40mm ~ 80 x 120mm	0.7 - 5mm

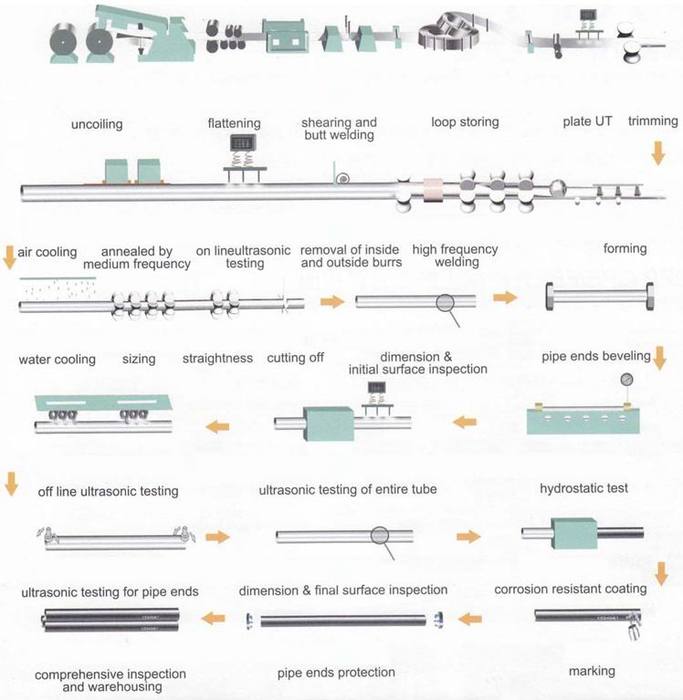

Manufacturing Process

生产工艺流程 700.jpg

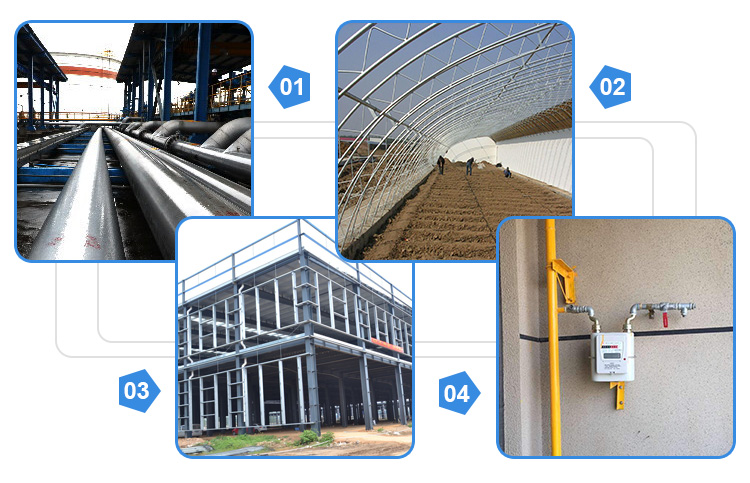

Applications

1) Low pressure liquid, water, gas, oil, line pipe.

2) Oil pipe suitable for oil industry, oil heater for chemical coking equipment.

3) Fence, Greenhouse, Doors, Greenhouse.

4) Steel Structure Engineering, Construction, Support Pipes for Mine Pits

5) Machinery Manufacturing and Chassis

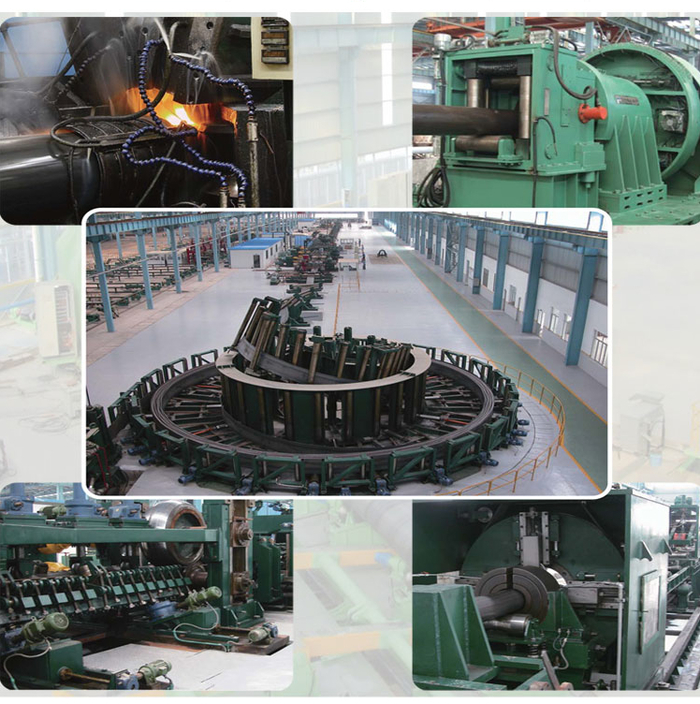

Production

China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.


Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
