Carbon Steel
Spring Steel Strip
-
DIN 17200, DIN EN 10132, DIN 17222, etc.
-
SAE 1050/1070/1075, C85, 65Mn, T10A, SK5, HSS, etc.
-
0.08 ~ 5.0mm
-
3 ~ 600mm
China Metal Group Co., Ltd is professional manufacturer of cold rolled spring steel strip in China, we are in a position to supply superior quality steel strips made by different kinds of steel grades.
Standard | DIN 17200, DIN EN 10132-3, DIN 17222, DIN EN 10132-4, DIN 17350, SAE J2340, SAE J1392, etc. |
Grade | SAE 1050/1070/1075/1080 C55S, C60S, C67S, C75S, C100S HSLA 035/040/045/050/060/070/080 HSS M2, M35, M42, M24, M26, M28, M32 CK75, CK85, 65Mn, 1.2003, 1.3343, D6A, 75Cr1, 27MnCrB5, SAE 15B30, T8A, T10A, SK5, 6150, 60Si2Mn, etc. |
Thickness | 0.08 ~ 5.0mm |
Width | 3 ~ 600mm |
Heat Treatment | Annealed, Hardened, Tempered, Heat Treated, Cold Grinded, etc. |
Surface Finish | Polishing, Bright, Decarburation, Blue, Oiled, etc. |
Edge | Slit, Sheared, Rolled, Round, Special required by customer |
Tolerance | DIN 1544/DIN EN 10140 DIN 1541/DIN EN 10131 Normal, fine and precision tolerances or by customer |
Coil ID | 200/300/400/508mm |
Coil Weight | As per request |
Manufacturing Process
Application
1) Band Saw
2) Saw Blade
3) Shutter Door
4) Stamping Parts
5) Steel Toe Caps
6) Knitting Machine Needle
7) Shock Absorber
8) Die Making
9) Springs
10) Shoe Insole and Accessories
11) Shock Absorbers
12) Cutting Tools
13) Others
Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

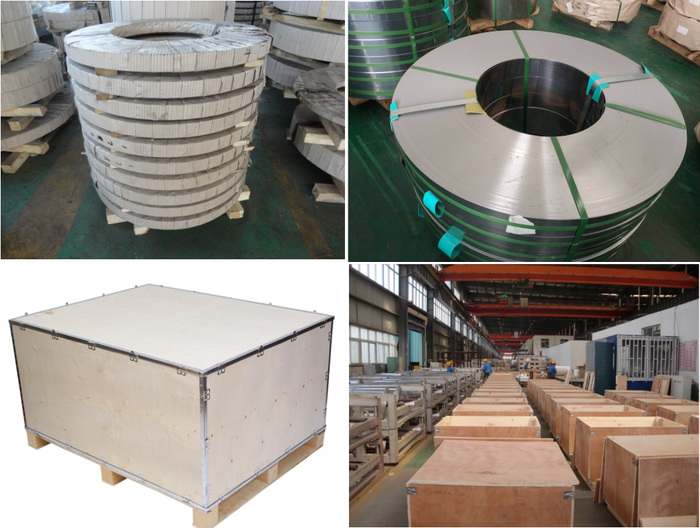

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
