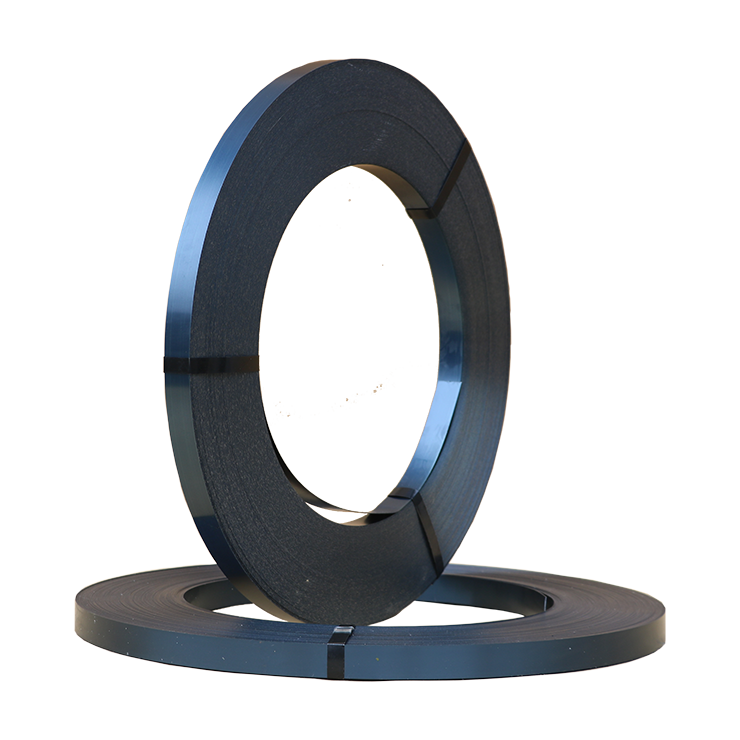

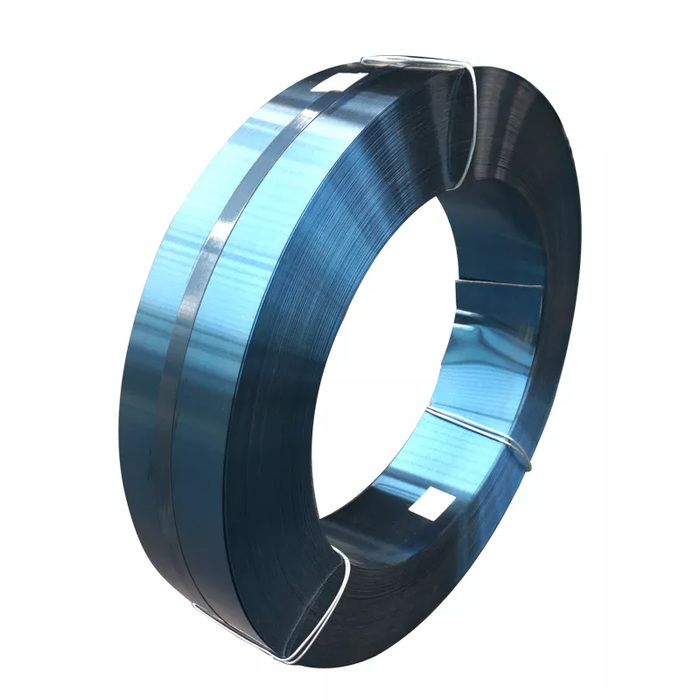

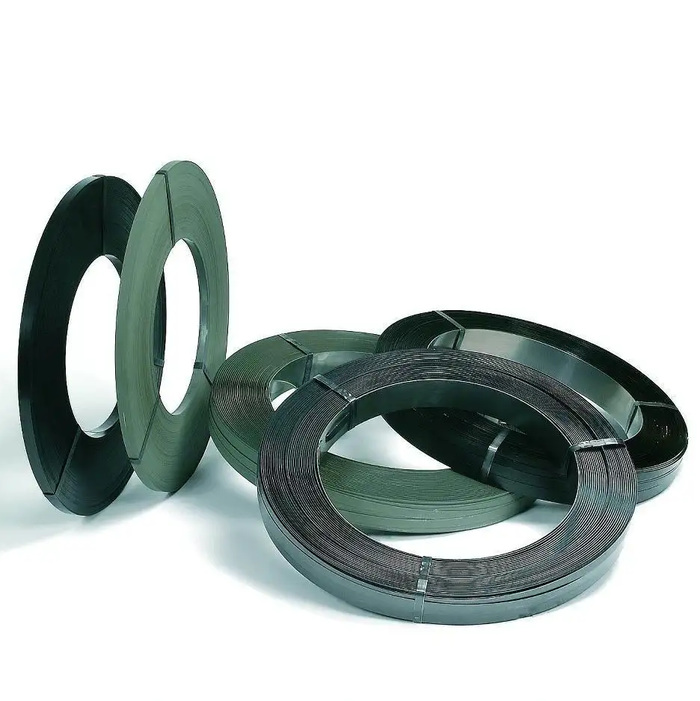

Steel Packing Strip

Carbon Steel

POSITIONHOME > PRODUCTS > Carbon Steel

Standard:
ASTM, JIS, EN, DIN, AS, etc.
Grade:
Q195, Q235, Q345, etc.
Thickness:
0.36 ~ 1.0mm
Width:
9.5/12.7/16/19/25.4/32mm, etc.

PRODUCT INQUIRY

China Metal Group Co., Ltd is professional manufacturer of steel packing strip in China for decades, we are in a position to supply superior quality steel strips with different strength for customers.

Specification Production & Package

Standard	AISI, ASTM, BS, DIN, GB, JIS, etc.
Thickness	0.36 ~ 1.0mm
Width	9.5, 12.7mm, 16mm, 19mm, 25.4mm, 32mm or as per request.
Size	BWG28X3/8", 1/2", 5/8" (0.36mmx12.7mm, 16.0mm) BWG27X3/8", 1/2", 5/8" (0.40mmx12.7mm, 16.0mm) BWG26X1/2", 5/8", 3/4" (0.45mmx12.7mm, 16.0mm 19.0mm) BWG25X1/2", 5/8", 3/4" (0.50mmx12.7mm, 16.0mm, 19.0mm) BWG24x1/2", 5/8", 3/4" (0.55mmx12.7mm. 16.0mm, 19.0mm) BWG23x1/2", 5/8", 3/4" (0.60mmx12.7mm, 16.0mm, 19.0mm) BWG22x3/4", 1", 5/4" (0.70mmx19.0mm, 25.4mm, 32.0mm) BWG21x3/4", 1", 5/4" (0.80mmx19.0mm, 25.4mm, 32.0mm) BWG20x3/4", 1", 5/4" (0.90mmx19.0mm, 25.4mm, 32.0mm BWG19x3/4", 1", 5/4" (1.00mmx19.0mm, 25.4mm, 32.0mm)
Tensile Strength	580 ~ 1100 Mpa
Surface	Painted, Waxed, Blue Tempered, Lacquered, Oiled, Galvanized, etc.
Paint Color	Black, Grey, Green, Red, Yellow, Blue or according to request.
Wound Way	Ribbon Wound, Oscillated Wound
Coil Weight	Ribbon type: Width:12.7mm 10 or 17 kg/bundle Width:16/19 15 or 25 kg/bundle Width:25.4/32mm 25 or 50 kg/bundle Oscillated type: Width:12.7mm 35 or 38 kg/bundle Width 16/19mm 40 or 50 kg/bundle Maximum 500 Kgs/Coil, or according to request.
Coil ID	Ribbon Type: 200/300/406mm Oscillated Type: 406mm

Mechanical Property

Type	Tensile Strength	Elongation
General Strength	σb≥58-78Kg/mm2 (580-780Mpa)	5%-10%
Medium Strength	σb≥78-90Kg/mm2 (780-900Mpa)	8%-10%
High Strength	σb≥90-110Kg/mm2 (900-1100Mpa)	3%-8%

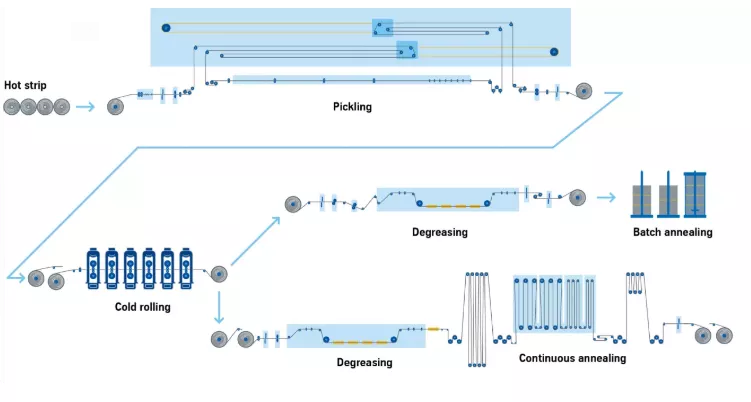

Manufacturing Process

Production

China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

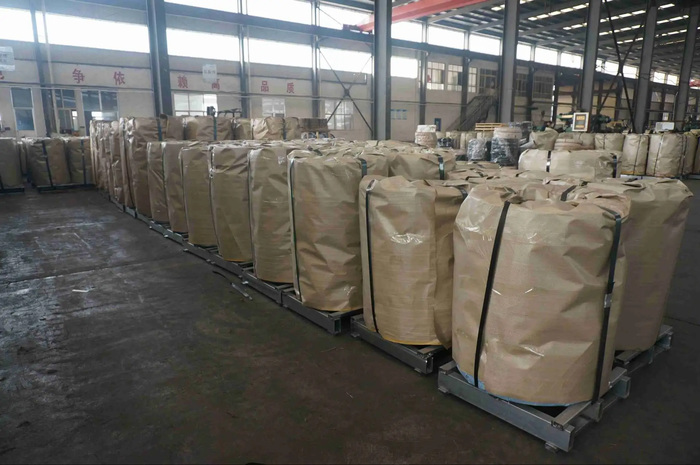

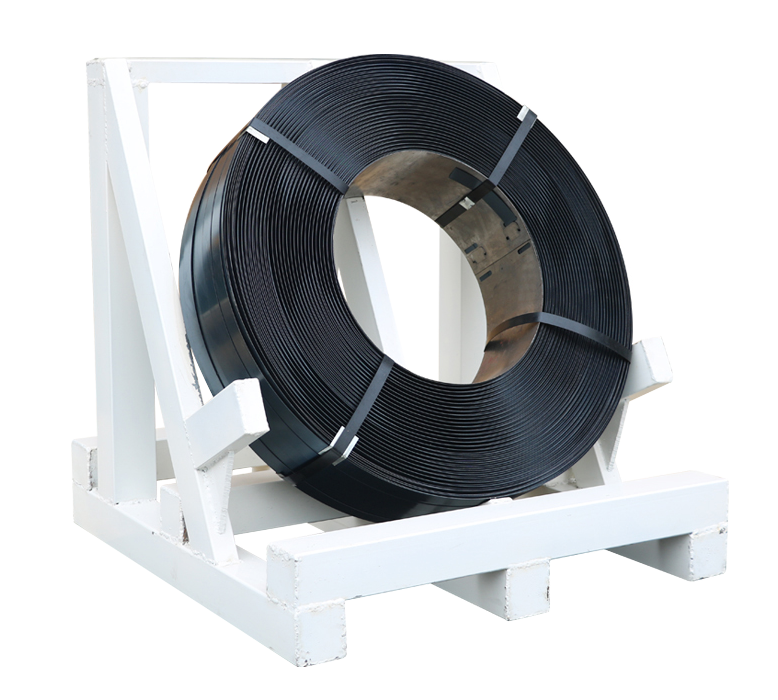

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
