Carbon Steel

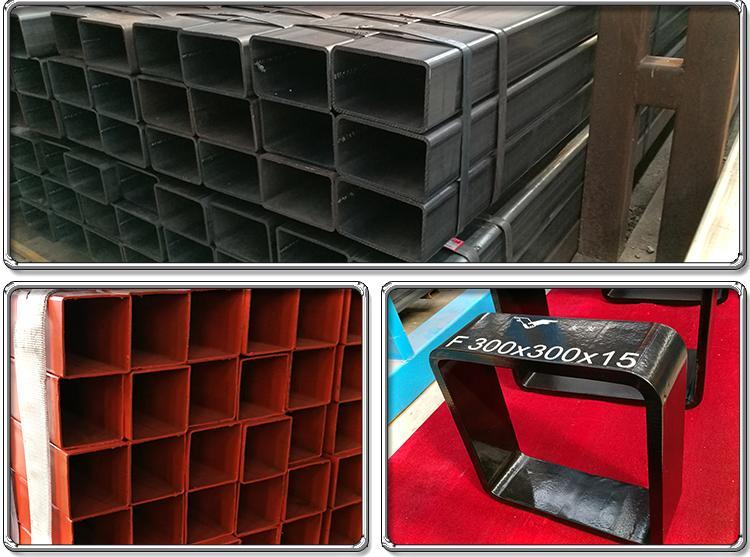

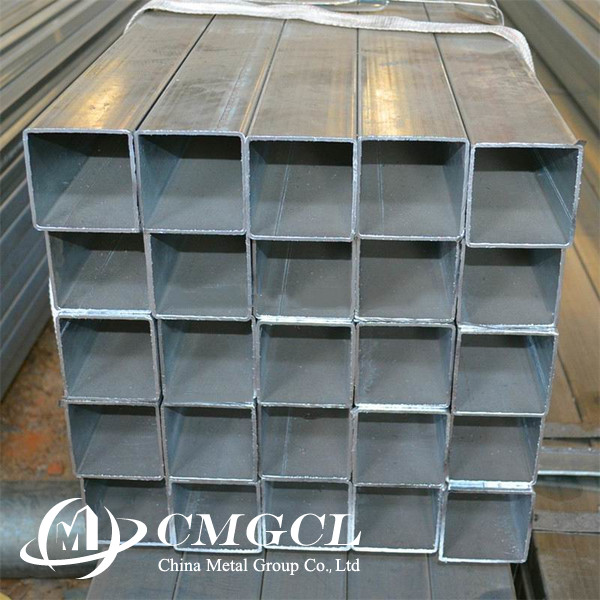

Square & Rectangular Steel Pipe
-
EN10025, AS 1163, JIS G3466, ASTM A500, ASTM A53, ASTM A529, etc.
-
S275JR, S355JR, ASTM A500 GR.A/B/C/D, ASTM A529 GR.50/55, etc.
-
0.5 ~ 25mm
-
NA
Steel Hollow Sections (RHS, SHS, CHS) have very efficient forms to load this multi-axis as the two or more cross-sectional axis are uniform in geometry and therefore have uniform strength features. This allows them to make good column choices. They are also very torsional resistant. Steel Hollow Sections are produced in high quality and is strictly following the industry standards. Our product range is available in various dimensions and thickness to meet customers' requirements.
Standard | EN10025, EN10210, EN10219, EN10305, AS 1163, JIS G3466, JIS G3444, ASTM A500, ASTM A53, ASTM A529, BS EN10255, GB/T3091, BS1387, etc. | ||
Grade | S235JRH, S275JRH, S275J0H, S355J2H, S355K2H; S275NH, S275NLH, S355NH, S355NLH, S460NH, S460NLH; ASTM A500 GR.A/B/C/D, ASTM A529 GR.50/55 SS400, Q235, S275JR, Q345, S355JR, GR.B-D, STK500; Q195, Q215, Q235, Q345, S235JR, S355J0, etc. | ||
Dimension (H x W) | Thickness | Length | |
Square Pipe | 10 x 10mm ~ 850 x 850mm | 0.5 ~ 25mm | 5.8m, 6m, 11.8m, 12m, or as per request. |
Rectangular Pipe | 10 x 20mm ~ 500 x 750mm | 0.5 ~ 25mm | |

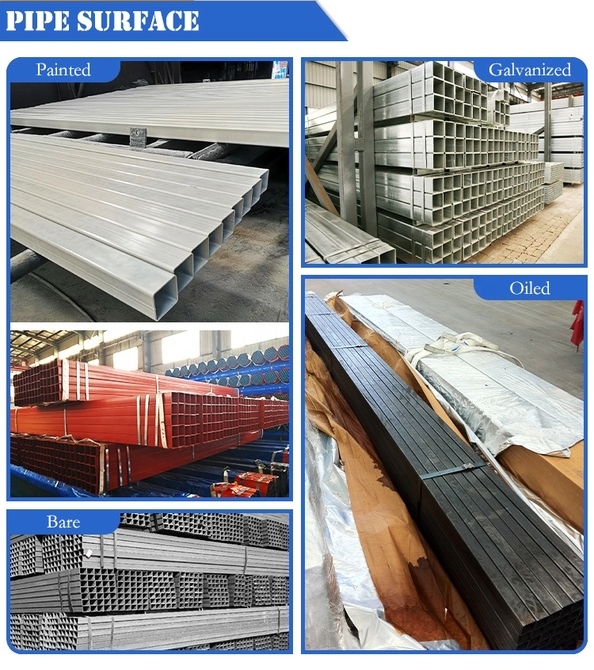

Surface Treatment | Black, Hot Dip Galvanized, Pre-galvanized, Anti-Rust Oiled, Painted, 3PE Coated, etc. | ||

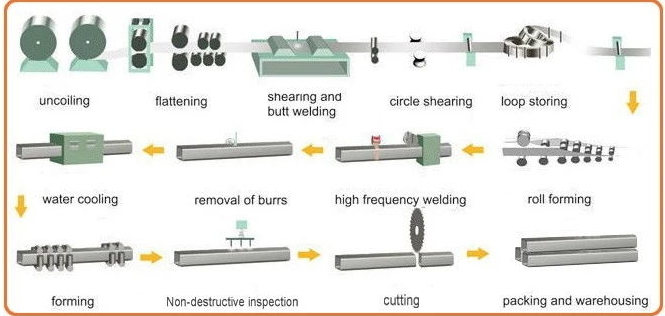

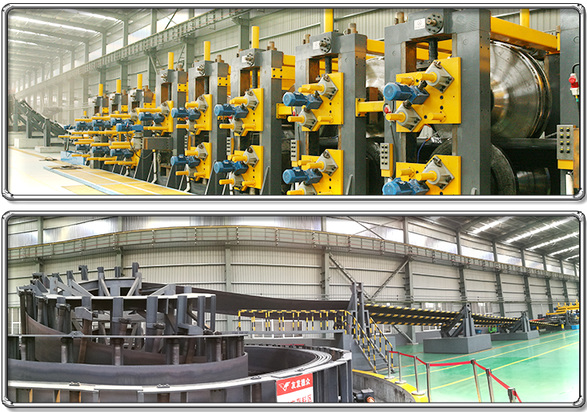

Manufacturing Process
Part of Dimensions for Square Steel Pipe | |
Size mm | Size mm |
10 x 10 x 1.0 | 10 x 10 x 1.5 |
15 x 15 x 1.5 | 20 x 20 x 2.0 |
20 x 20 x 2.0 | 20 x 20 x 2.5 |
25 x 25 x 1.5 | 25 x 25 x 2.0 |
25 x 25 x 2.5 | 25 x 25 x 3.0 |
30 x 30 x 2.0 | 30 x 30 x 2.5 |
30 x 30 x 3.0 | 40 x 40 x 1.5 |
40 x 40 x 2.0 | 40 x 40 x 2.5 |
40 x 40 x 3.0 | 40 x 40 x 4.0 |
40 x 40 x 5.0 | 50 x 50 x 1.5 |
50 x 50 x 2.0 | 50 x 50 x 2.5 |
50 x 50 x 3.0 | 50 x 50 x 4.0 |
50 x 50 x 5.0 | 60 x 60 x 3.0 |
60 x 60 x 4.0 | 60 x 60 x 5.0 |
60 x 60 x 6.0 | 70 x 70 x 3.0 |
70 x 70 x 3.6 | 70 x 70 x 5.0 |
70 x 70 x 6.3 | 70 x 70 x 8 |
75 x 75 x 3.0 | 80 x 80 x 3.0 |
80 x 80 x 3.6 | 80 x 80 x 5.0 |
80 x 80 x 6.0 | 90 x 90 x 3.0 |
90 x 90 x 3.6 | 90 x 90 x 5.0 |
90 x 90 x 6.0 | 90 x 90 x 8.0 |
100 x 100 x 3.0 | 100 x 100 x 4.0 |
100 x 100 x 5.0 | 100 x 100 x 5.0 |
100 x 100 x 6.0 | 100 x 100 x 8.0 |
100 x 100 x 10 | 120 x 120 x 5 |
120 x 120 x 6.0 | 120 x 120 x 6.3 |
120 x 120 x 8.0 | 120 x 120 x 10 |
120 x 120 x 12 | 120 x 120 x 12.5 |
140 x 140 x 5.0 | 140 x 140 x 6.3 |
140 x 140 x 8.0 | 140 x 140 x 10 |
140 x 140 x 12.5 | 150 x 150 x 5.0 |
150 x 150 x 6.3 | 150 x 150 x 8.0 |
150 x 150 x 10 | 150 x 150 x 12.5 |
150 x 150 x 16 | 150 x 150 x 16 |
180 x 180 x 5 | 180 x 180 x 6.3 |
180 x 180 x 8 | 180 x 180 x 10 |
180 x 180 x 12.5 | 180 x 180 x 16 |
200 x 200 x 5 | 200 x 200 x 6 |
200 x 200 x 6.3 | 200 x 200 x 8 |
200 x 200 x 10 | 200 x 200 x 12.5 |
200 x 200 x 16 | 250 x 250 x 6.3 |
250 x 250 x 8 | 250 x 250 x 10 |
250 x 250 x 12.5 | 250 x 250 x 16 |
300 x 300 x 6.3 | 300 x 300 x 8 |
300 x 300 x 10 | 300 x 300 x 8 |
300 x 300 x 12.5 | 300 x 300 x 16 |
350 x 350 x 8 | 350 x 350 x 10 |
350 x 350 x 12.5 | 350 x 350 x 16 |
400 x 400 x 10 | 400 x 400 x 12 |
400 x 400 x 12.5mm | 400 x 400 x 16 |
P.S: Other dimensions are also workable. | |
Part of Dimensions for Rectangular Steel Pipe | |
Size mm | Size mm |
20 x 10 x 1.0 | 20 x 10 x 1.5 |
25 x 10 x 1.0 | 25 x 10 x 1.5 |
30 x 15 x 1.0 | 30 x 15 x 2.0 |
30 x 20 x 1.5 | 30 x 20 x 2.0 |
40 x 20 x 2.0 | 40 x 20 x 2.5 |
40 x 20 x 3.0 | 40 x 25 x 1.5 |
40 x 25 x 2.0 | 40 x 25 x 2.5 |
50 x 25 x 2.0 | 50 x 25 x 2.5 |
50 x 25 x 3.0 | 50 x 30 x 2.5 |
50 x 30 x 3.0 | 50 x 30 x 4.0 |
50 x 40 x 3.0 | 60 x 40 x 2.0 |
60 x 40 x 2.5 | 60 x 40 x 3.0 |
60 x 40 x 4.0 | 70 x 50 x 2 |
70 x 50 x 2.5 | 70 x 50 x 3.0 |
70 x 50 x 4.0 | 80 x 40 x 2.5 |
80 x 40 x 3.0 | 80 x 40 x 4.0 |
80 x 40 x 5.0 | 80 x 50 x 3.0 |
80 x 50 x 4.0 | 90 x 50 x 3.0 |
90 x 50 x 3.6 | 90 x 50 x 5.0 |
100 x 50 x 2.5 | 100 x 50 x 3.0 |
100 x 50 x 4.0 | 100 x 50 x 5.0 |
100 x 60 x 3.0 | 100 x 60 x 3.6 |
100 x 60 x 5.0 | 120 x 80 x 2.5 |
120 x 80 x 3.0 | 120 x 80 x 4.0 |
120 x 80 x 5.0 | 120 x 80 x 6.0 |
120 x 80 x 8.0 | 150 x 100 x 5.0 |
150 x 100 x 6.0 | 150 x 100 x 8.0 |
150 x 100 x 10.0 | 160 x 80 x 5.0 |
160 x 80 x 6.0 | 160 x 80 x 8.0 |
200 x 100 x 5.0 | 200 x 100 x 6.0 |
200 x 100 x 8.0 | 200 x 100 x 10.0 |
250 x 150 x 5.0 | 250 x 150 x 6.0 |
250 x 150 x 8.0 | 250 x 150 x 10 |
300 x 200 x 6.0 | 300 x 200 x 8.0 |
300 x 200 x 10.0 | 400 x 200 x 8.0 |
400 x 200 x 10.0 | 400 x 200 x 16 |
P.S: Other dimensions are also workable. | |
Applications
1) Construction
2) Upholstery
3) Greenhouse
4) Frame
5) Fence Post
6) Road Barrier
7) Trailer
8) Stacking Shelf
9) Handrail
10) Staircase
11) Window
12) Furniture
13) Mechanical Industry
14) Others.

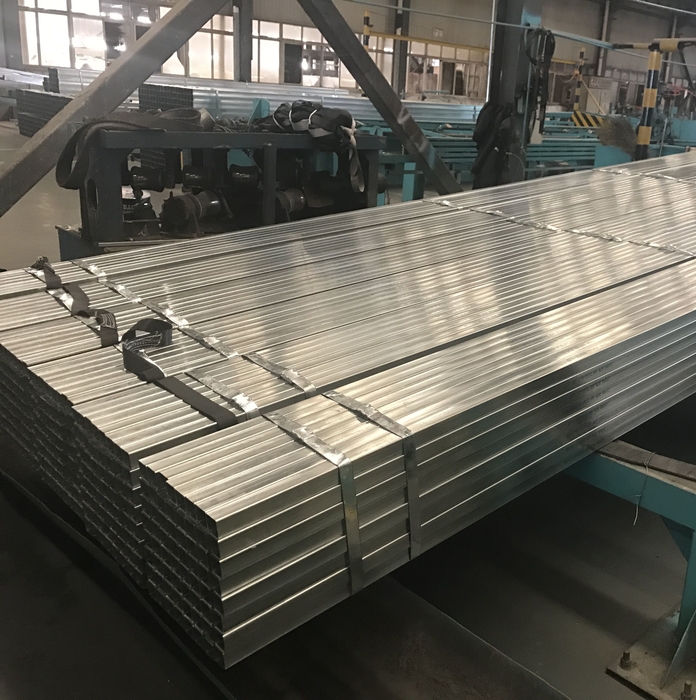

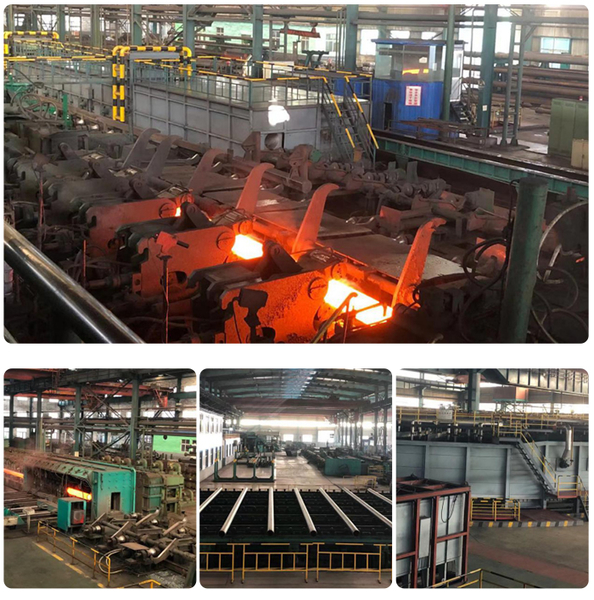

Production
China Metal Group provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

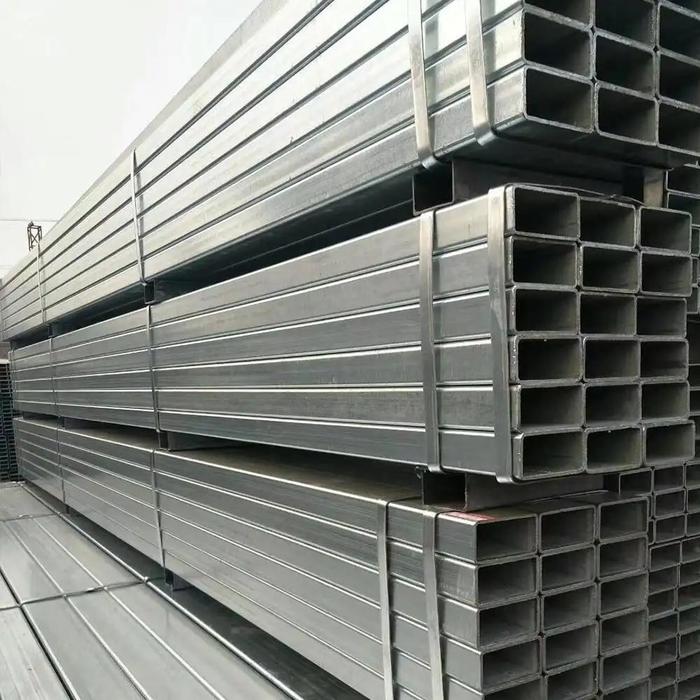

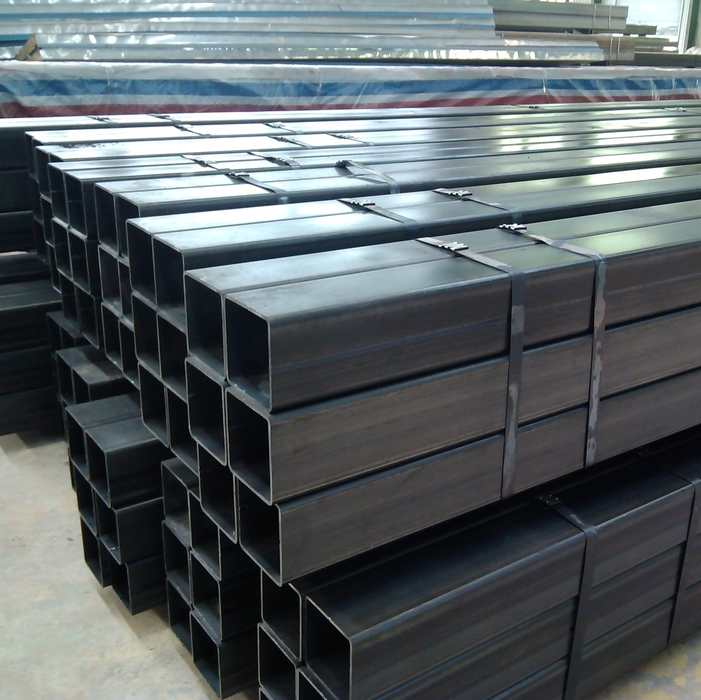

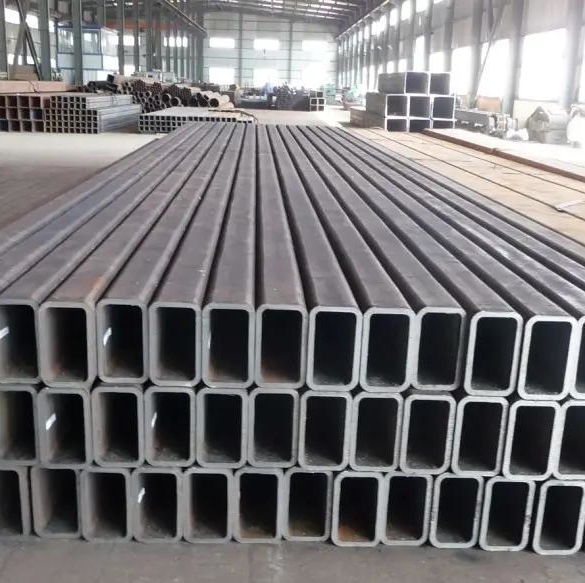

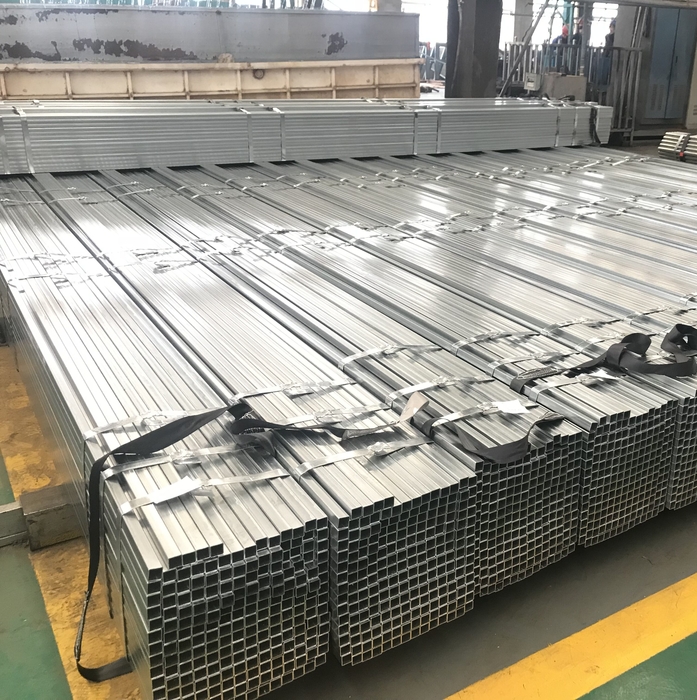

Package
The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
