Carbon Steel

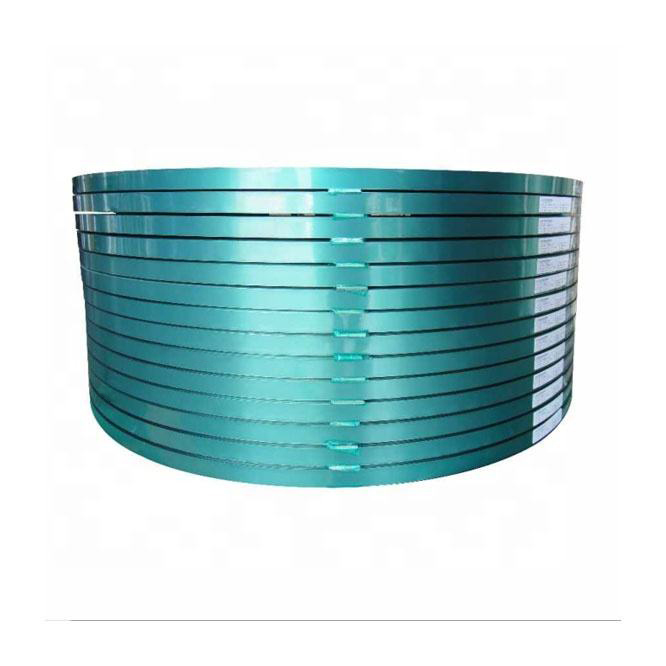

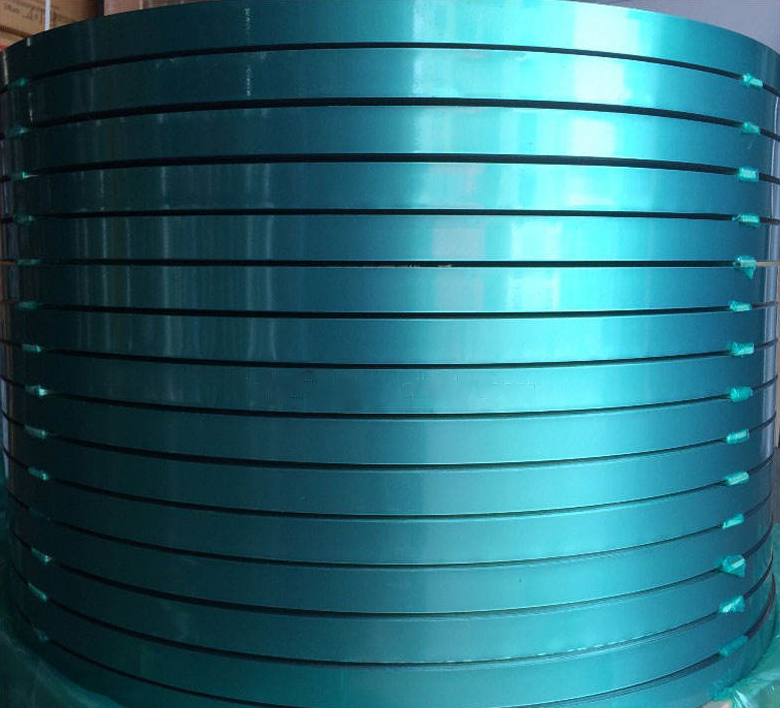

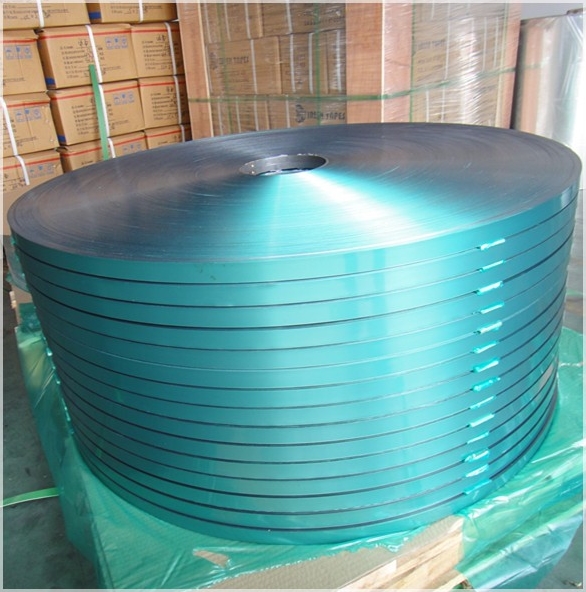

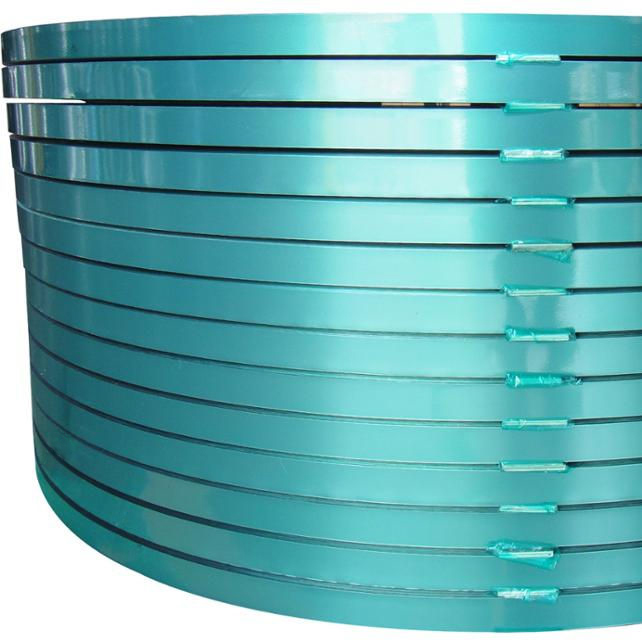

Copolymer Coated Steel(ECCS) Tape for cable armoring
-
JIS G 3303
-
Type-MR
-
0.05/0.155/0.05mm, 0.05/0.20/0.05mm
-
10mm ~ 1000mm
Copolymer coated steel tape consists of steel tape coated on one side or both sides with an adherent ethylene copolymer. The copolymer exhibits excellent adhesion to the steel substrate and has the chemical resistance and general characteristics of lower density poly-ethylene. It bonds to low, LLDPE, MDPE and HEPE. The steel is low carbon and electronic chrome-coated steel which tempered to T-1 or T-2 condition for excellent formability and fabrication characteristics.
Property | Unit | Values | Method | |
Thickness | Steel | mm | 0.155, 0.20 | MR Type |
EAA | mm | 0.05 | ---- | |
Color | MPa | Green, Blue, Natural | ---- | |
Tensile Strength | % | ≥300 | ASTM E8 | |
Elongation | N/cm | ≥15 | ASTM E8 | |
Peel Strength | N/cm | ≥6.13 | ASTM B736 | |
Heat Seal Strength | Grade | ≥17.5 | ASTM B736 | |
Corrosion Resistance | ---- | 7 | ----- | |
Filler / Flood Resistance 68 deg C/168 hrs | N/cm | No Delamination | PEA PE-39, PE-89 | |
Water Resistance 68 deg C/168 hrs, Peel Strength 68℃ | ---- | ≥6.13 | ASTM B736 | |
Dielectric Strength Two-Side, DC 1Kv, 1min | No Break | ----- | ||
Package
Inner Diameter | Width | Length | Roll Core Material |
76/150/406mm | 10mm ~ 1000mm | Customized | Paper/Steel/Plastic |

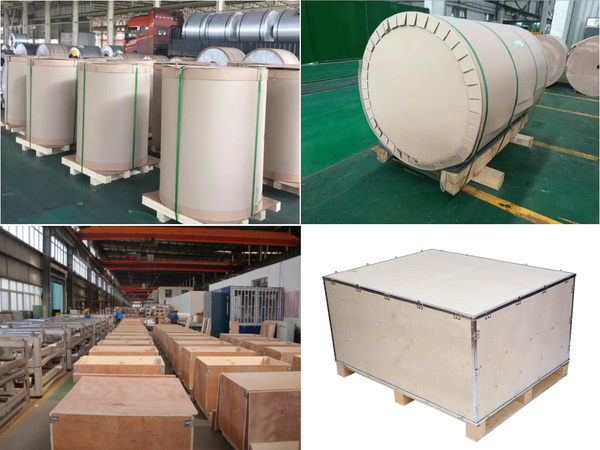

1. Inner-plastic bag, outside-carton, then put on a plywood pallet.
2. Inner-plastic bag, outside plywood wooden box.
3. Plywood wooden box.
Storage
Keep the material under dry and clean environment. Avoid exposure to direct sunlight, pollution or damage caused by external forces.
Applications
1. Mainly used on coaxial cables, signal cables, control cables, power cables, fiber optical cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables.
2. Wire cables like insulation and shield material: SATA, VGA, DVI, HDMI, USB, etc.
3. Ventilation industry for flexible duct pipe production, air conditioner, electronic, estate constriction, etc.
4. Printing and packaging.
5. Others.

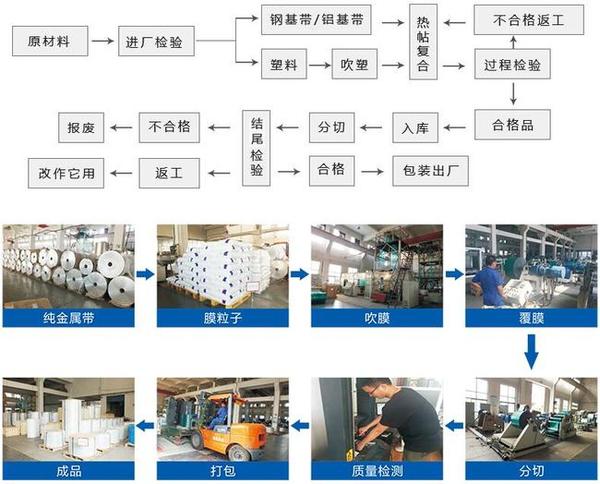

Production
China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.
Package

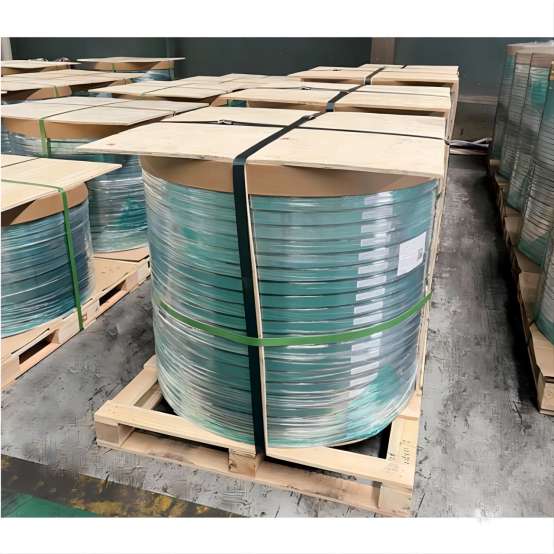

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.
1) Our Standard Seaworthy Packing.
2) According to customer request.
