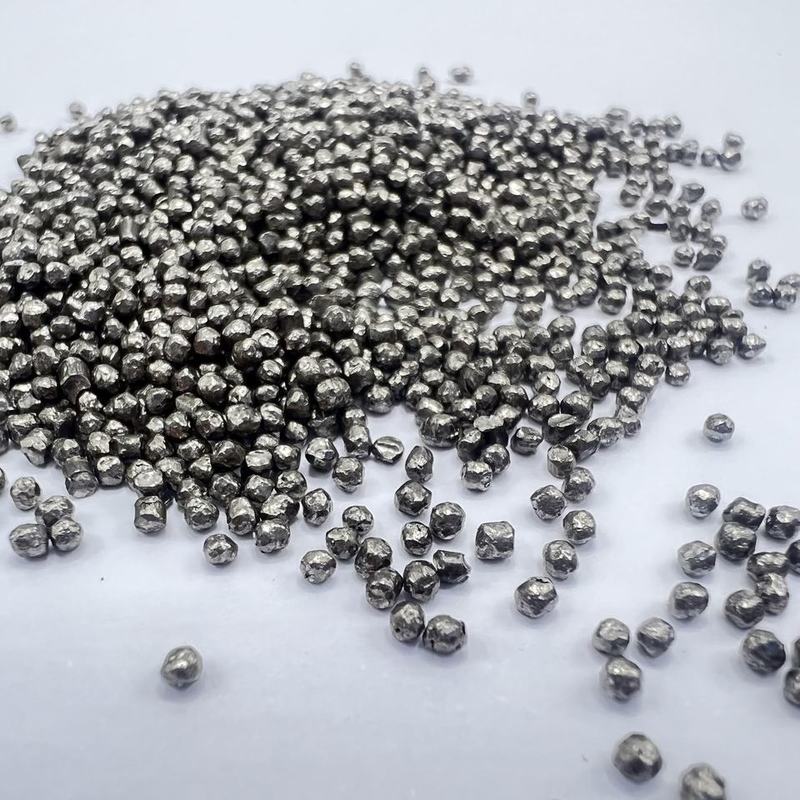

Steel Shot & Steel Grit

Carbon Steel

POSITIONHOME > PRODUCTS > Carbon Steel

Standard:
EN12413, SAE J1993, SAE J444, etc.
Grade:
S280, S330, S390, G25, G40, G50, etc.
Thickness:
-
Width:
-

PRODUCT INQUIRY

Steel shot and steel grit have wide applications to clear the surface by removal of oxide layers and surface defects. CMGCL is the largest manufacturer of metal abrasives in China which integrates with technical research, development and production. We are providing high strength, strong durability steel shot and steel grit through double quenching, tempering and screening.

Specification Production & Package

Standard	EN12413, SAE J1993, SAE J444, etc.

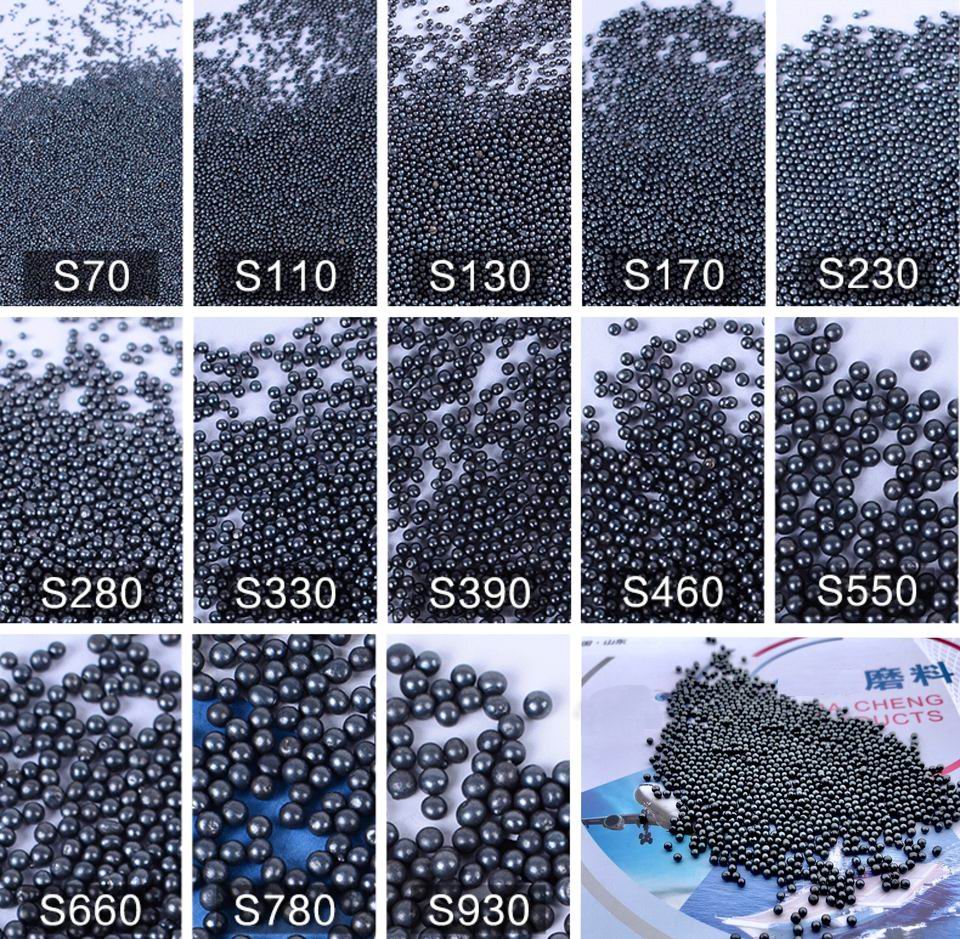

Steel Shot	S70, S110, S130, S170, S230, S280, S330, S390, S460, S550, S660, S780, S930, etc.
Steel Grit	G14, G16, G18, G25, G40, G50, G80, G120, etc.
Chemical Composition	C	0.85% - 1.20%
	Mn	0.60% - 1.20%
	Si	0.40% - 1.20%
	S	≤ 0.05%
	P	≤ 0.05%
Microhardness	Normal: 40~50HRC (377~509HV) Special: 52~56HRC (543~620HV) Special: 56~60HRC (620~713HV)
Hardness Deviation	Max Deviation ±2.00HRC
Testing	Size Testing, Hardness Testing, Chemical Composition Testing
Metallographical Structure	Even Tempered Martensitere
Minimum Density	7.4 g/cm³
Package	1) 25kgs/bag, 1000kg per pallet. 2) 230kgs/barrel/pallet. 3) According to customer's requirement.

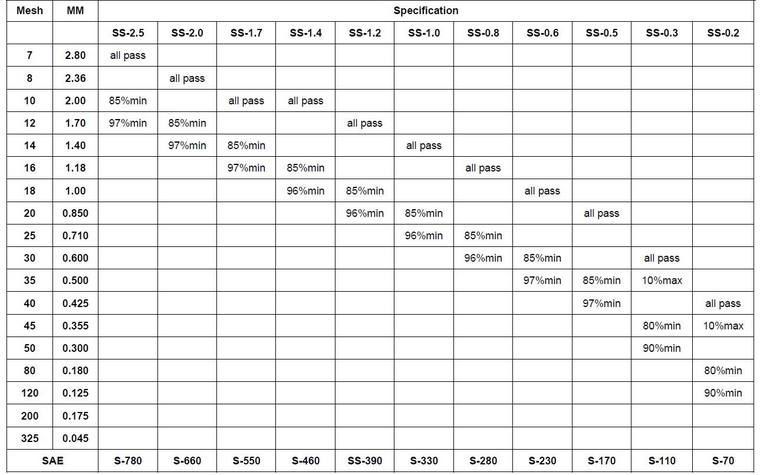

Specification of Steel Shot

Shot size(2).jpg

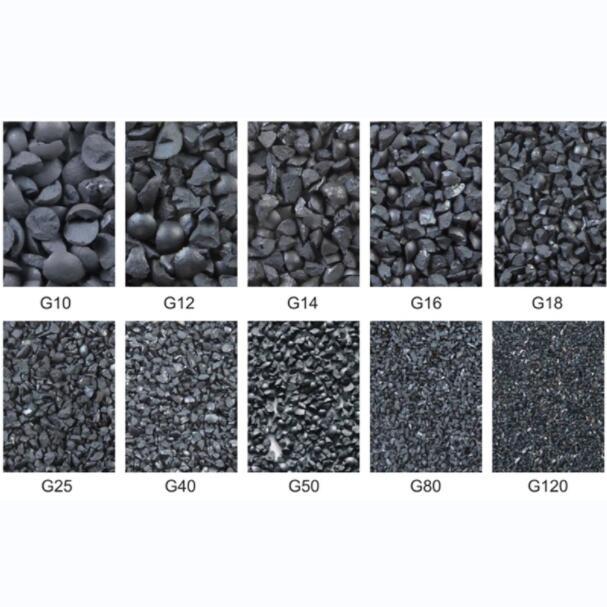

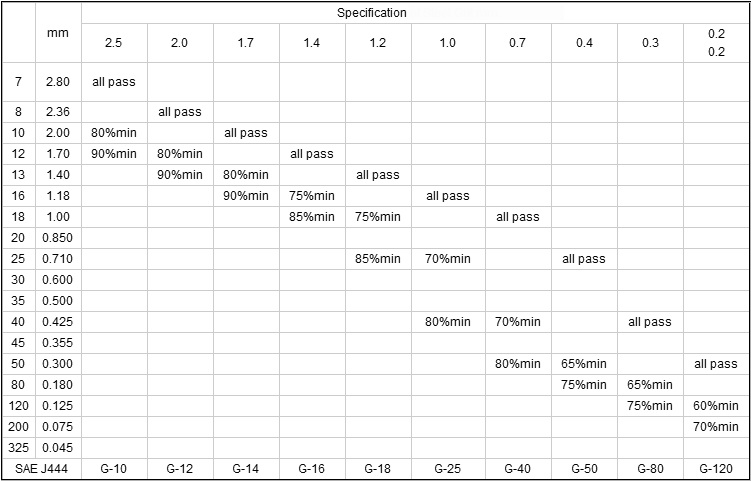

Specification of Steel Grit

Grit Size(2).jpg

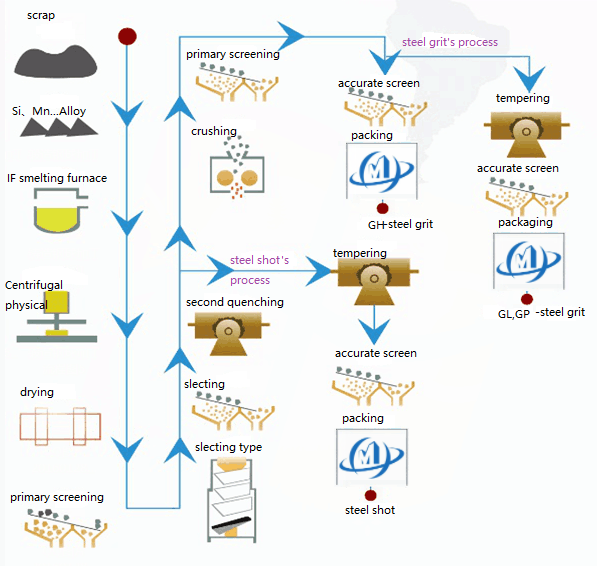

Manufacruring Process

Advantages

√ Be manufactured according to the International Standards SAE J1993 and SAE J444

√ Uniform hardness, density and microstructure, coupled with good toughness for durability

√ High Density and strength for fast blast rate, low breakdown rate and low dust

√ Mixing with other abrasives can increase surface cleaning capacity

Applications

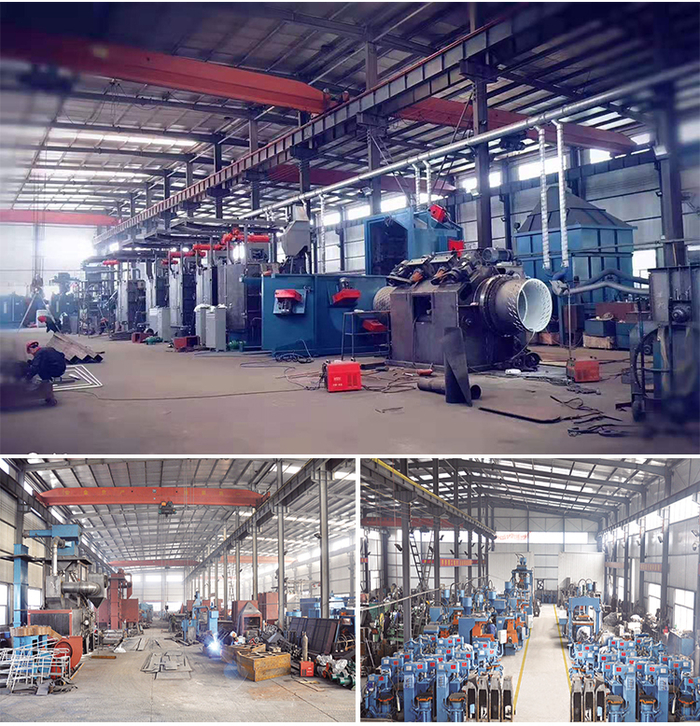

Production

China Metal Group Co., Ltd provides the best quality to the customer, we develop cutting-edge solutions in technology, processes, and products. We use the latest technology to improve the quality and the performance of our products, upgrade our manufacturing processes, and use the latest methods in process analysis and design. We always challenge ourselves and have developed into an innovation-driven company.

Production 1(2)(2).jpg

Package

The products are packed and labeled according to the regulations or customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product.

1) Our Standard Seaworthy Packing.

2) According to customer request.
